RAM Mount Nuvi 6xx Series Motorcycle Brake Mount Product Detail
Category: RAM Mount RAM Mounts
Manufacturer: RAM Mount
Model No: RAM-B-174-GA23U
SKU: RAMB174GA23
Weight: 0.744 lbs
Share this item:
Need Assistance? We're here to help. (That's the GPS City Difference!)
For quick help selecting the right GPS unit, try our
GPS Selector Tool,
check specifications, or
compare GPS units. If you have a specific question about an
item, try entering your question using the
Questions & Answers section above - we usually respond on the same or next day. During our office hours 9AM - 6PM MDT, Mon-Fri, you can contact us using
, or reach us by phone at 1-866-GPS-CITY.
What's Included With The RAM Mount Nuvi 6xx Series Motorcycle Brake Mount? The RAM Mount Nuvi 6xx Series Motorcycle Brake Mount ships with the following items included:

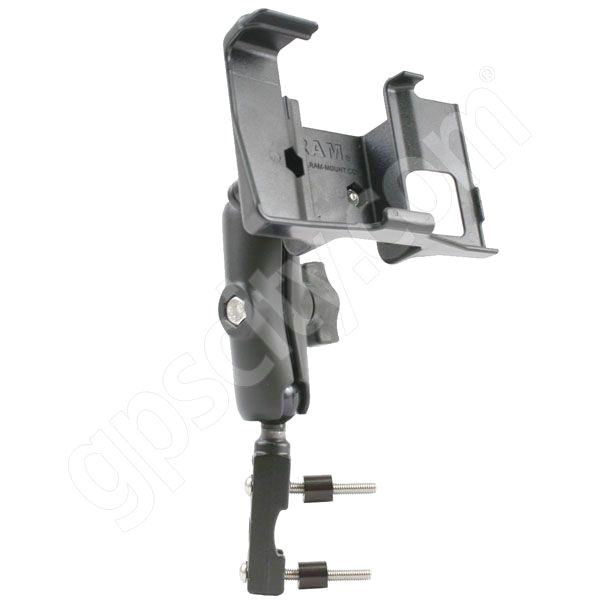

RAM Mount Nuvi 6xx Series Motorcycle Brake Mount Description The RAM-B-174-GA23 RAM Mount Marine Grade Aluminum Motorcycle Brake/Clutch Base Mount consists of the 1 inch diameter RAM ball and socket system with RAM Plastic Cradle for the Garmin Nuvi 6xx Series, including the Nuvi 650, Nuvi 660, Nuvi 670 and Nuvi 680.
The RAM-HOL-GA23 RAM Mount High Strength Plastic Cradle is designed to hold the Garmin nuvi 6xx Series, including the following GPS units,
Garmin nuvi 650
Garmin nuvi 660
Garmin nuvi 670
Garmin nuvi 680
Garmin nuvi 600 (European Version)
Garmin nuvi 610 (European Version)
The cradle will fit around the Garmin cradle that is included with the purchase of the Garmin nuvi 6xx series unit. This will allow you to connect a USB Cable to the Garmin cradle when required.
All cables can stay connected to the unit while in the RAM cradle.
The RAM Mount Dual Socket Arm (RAM-B-201) is a B Size 1 inch Ball Dual Socket Arm, made of Marine Grade Aluminum. The arm is 3 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends.
Mount Base Design:
The RAM-B-309-1 RAM Mount Powder Coated Marine Grade Aluminum Clutch/Brake Motorcycle Mount Base includes a 1 inch diameter Rubber Ball and a hexagonal opening for the connection of an optional secondary RAM-B-309-3 Rubber 1 inch diameter ball. Included with this base is both standard and metric mounting bolts.
The base connects to the left or right side of your handlebar clutch/brake reservoir on the Honda Goldwing and other select Motorcycles. To see if this base will work with your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94 inches and a maximum of 1.58 inches and can be viewed in the design drawing below.
RAM E-Drawings and In Use Pictures:

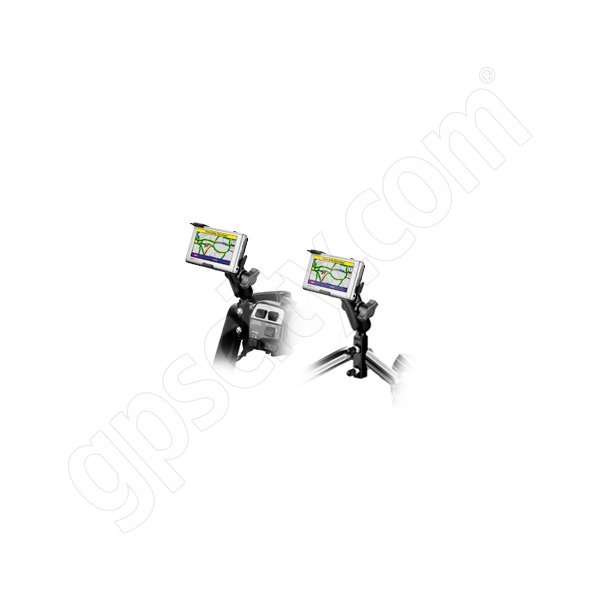

To understand more about the RAM-B-309-1 Motorcycle Mount Base hole spacing and ball layout and location, check out the design drawing below. The second image shows the RAM-B-309-1 in use and how the base mounts to the clutch/brake reservoir.
