Product Detail & Documentation (all files in PDF format)
Manufacturer
RAM Mount
Category
GPS Mounts
Model
RAM-B-174-GA21U
SKU
RAMB174GA21
Weight
0.883 lbs.
Share this item:
Need Assistance? We're here to help. (That's the GPS City Difference!)
For quick help selecting the right GPS unit, try our
GPS Selector Tool,
check specifications, or
compare GPS units. If you have a specific question about an
item, try entering your question using the
Q&A (Questions & Answers) section above - we usually respond on the same or next day. During our office hours 9AM - 6PM MDT, Mon-Fri, you can contact us using
, or reach us by phone at 1-866-GPS-CITY.
What's Included With The RAM Mount Nuvi 3xx Series on Motorcycle Brake Mount? The RAM Mount Nuvi 3xx Series on Motorcycle Brake Mount ships with the following items included:

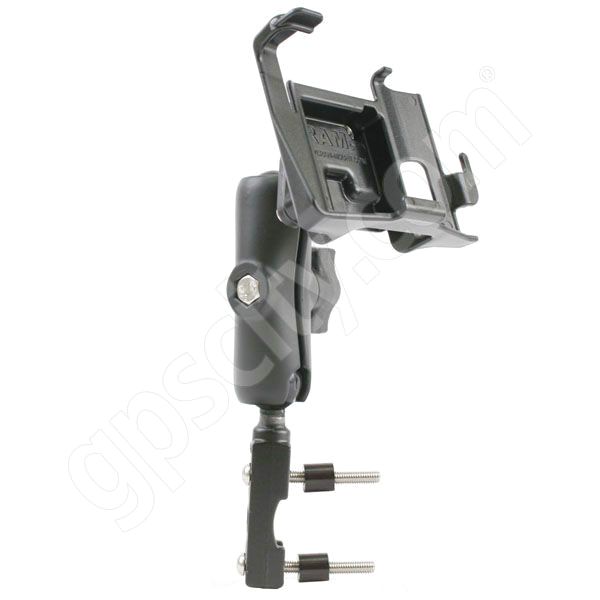

RAM Mount Nuvi 3xx Series on Motorcycle Brake Mount Description The RAM-B-174-GA21 RAM Mount Marine Grade Aluminum Motorcycle Brake/Clutch Base Mount consists of the 1 inch diameter RAM ball and socket system with RAM Plastic Cradle for the Garmin Nuvi 3xx Series, including the Nuvi 350, Nuvi 360 and Nuvi 370.
The RAM-HOL-GA21 Garmin nuvi 3xx RAM Mount High Strength Plastic Cradle is designed to hold the following Garmin nuvi 3xx Series GPS units,
Garmin nuvi 350
Garmin nuvi 360
Garmin nuvi 370
Garmin nuvi 300 (European Version)
Garmin nuvi 310 (European Version)
The cradle will fit around the Garmin cradle that is included with the purchase of the Garmin nuvi 3xx series unit. This will allow you to connect a USB Cable to the Garmin cradle when required. The RAM Mount cradle also includes a cable hook, on the side of the cradle, to hold the Garmin USB 12V cigarette lighter cable (not included with RAM Mount cradle) firmly in your nuvi. You can alway snap this hook off of the cradle if required.
All cables can stay connected to the unit while in the RAM cradle.
Mount Arm Design: The RAM Mount Dual Socket Arm (RAM-B-201) is a B Size 1 inch Ball Dual Socket Arm, made of Marine Grade Aluminum. The arm is 3 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends.
Mount Base Design:
The RAM-B-309-1 RAM Mount Powder Coated Marine Grade Aluminum Clutch/Brake Motorcycle Mount Base includes a 1 inch diameter Rubber Ball and a hexagonal opening for the connection of an optional secondary RAM-B-309-3 Rubber 1 inch diameter ball. Included with this base is both standard and metric mounting bolts.
The base connects to the left or right side of your handlebar clutch/brake reservoir on the Honda Goldwing and other select Motorcycles. To see if this base will work with your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94 inches and a maximum of 1.58 inches and can be viewed in the design drawing below.
RAM E-Drawings and In Use Pictures:
To understand more about the RAM-B-309-1 Motorcycle Mount Base hole spacing and ball layout and location, check out the design drawing below. The second image shows the RAM-B-309-1 in use and how the base mounts to the clutch/brake reservoir.
Tags for: RAM Mount Nuvi 3xx Series on Motorcycle Brake Mount ram mount ram mounts, nuvi 3xx series on motorcycle brake mount, ram mount nuvi 3xx series on motorcycle brake mount.
