Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$77.03CDN |
| Our Price: |
$58.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$18.08CDN (23%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
| Model: |
RAM Mount Motion LS800 Tablet UMPC Vehicle Floor Mount |
| Part No: |
RAM-B-316-1-MOT3 |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Rectangular Plate: Comparison Overview
(2,134 views) |
RAM Round Plate: Overview (RAM-B-202U)
(8,290 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
RAM Vehicle RAM-POD Mounting Base: Overview (RAM-316-1A)
(2,485 views) |
|
What's Included In The Box? |
The RAM Mount Motion LS800 Tablet UMPC Vehicle Floor Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Tablet Mounts |
| Model: |
RAM-B-316-1-MOT3 |
SKU: |
RAMB316-1MOT3 |
UPC: |
793442907425 |
| Announced: |
August 8, 2007 |
First Shipped: |
January 1, 2007 |
Weight: |
1.675 lbs. |
Manufacturer Description |

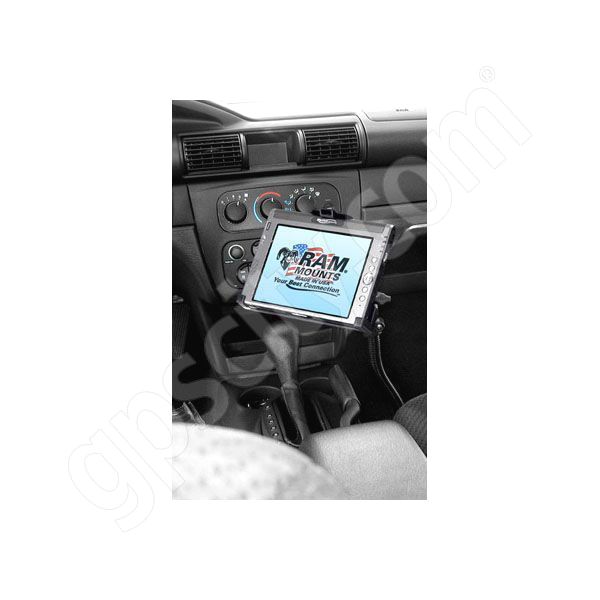

The RAM-B-316-1-MOT3 UMPC RAM Mount RAM-POD-I is a Rigid Flex Rod Vehicle Floor Mount with RAM Plastic Cradle for the Motion Computing LS800 Tablet. The tablet mount is designed with a RAM 1 inch diameter RAM ball and socket system on a 18 inch long Aluminum Flexible Rod. With a twist of the arm knob, you can move the top arm on the Motion Computing LS800 Tablet mount to your optimum viewing position. The rigid flex arm requires two hands and a little strength to flex and bend it.
Motion Computing LS800 Tablet Mount Cradle Design:
The RAM-HOL-MOT3 High Strength Plastic Cradle is designed to hold the Motion Computing LS800 Tablet (8.4'' Screen). All cables can stay connect to the tablet when in the cradle. To place the Motion LS800 Tablet PC Computer into the cradle, you must place the bottom of the tablet in the cradle corner supports. Next, you lay the tablet back into the top of the cradle until the top clip clicks over the top of the tablet, holding it firmly in the cradle.
Motion Computing LS800 Tablet Mount Arm Design: The RAP-B-200-1 RAM Mount High Strength Plastic Single Socket Short Arm has a B Size 1 inch Ball Socket at one end, and a Female Octagon button connection at the other. The Octagon Button end will mount on the end of the Aluminum Flex Rod, allowing the 1 inch socket to hold your device cradle or plate. The side of the arm includes a tightening knob which allows you to open and close the socket end.
Motion Computing LS800 Tablet Mount Base Design: The RAM-316-1A RAM Mount Rigid Arm Base consists of a RAM octagon at the end of a 18 inch rigid flex arm with seat rail base. The RAM-POD-I mounting foot plate base is designed to connect to a vehicle seat rail bolt in your Car, Truck, SUV, RV, Big Rig or bolted location. Connected at right angles to the mounting foot is an 18 inch long Aluminum Flexible Rod. This rod can hold light to medium weight items in your vehicle safely and securely. At the top of the rigid flex rod is a male RAM High Strength Plastic Octagon Button that will connect directly to a RAM Female Octagon Button Arm.
Movement of the Rigid 18 inch Flex Arm:It is important to note that the rigid 18 inch flex arm found on this mount is designed to hold an approximate weight of up to 4 lbs. With this in mind, the aluminum rod is more rigid than flexible. It is designed to be bent into position when being installed and then hold it's position. This means you cannot move the mount around once installed with just one hand.
Motion Computing LS800 Tablet Mount Options:
To help ensure you have the Motion Computing LS800 Tablet Mount you require, take a look at the list of available RAM Tablet mounts on the Motion Computing LS800 Tablet Mount Page. Here you can select from suction cup tablet mounts, flat surface screw down tablet mounts, tablet aviation mounts, non skid weighted tablet mounts and more bundled with the Motion Computing LS800 Tablet Cradle.
|
Features & Tips |
Here is a listing we have put together of some of the common Motion LS800 Tablet UMPC Vehicle Floor Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty
- Cradle Design: Custom Cradle for Motion Computing LS800 Tablet
- Cradle Material: High Strength Plastic
- Mount Material: Black Powder Coated Marine Grade Aluminum / Aluminum Rod / High Strength Plastic
- Mount Ball Size: RAM 1 inch Solid Rubber Ball
- Pivot Point Design: RAM Patented RAM 1 inch Rubber Ball and Socket Joint
- Arm Type: RAM Arm with Dual 1 inch Sockets
- Base Type: Vehicle Floor Mount
|
