Customer Rating:  (based on 4 reviews). Email:
 Print:
100% of our reviewers recommend this item. See more RAM Mount items. |
| |
| List Price: |
$46.45CDN |
| Our Price: |
$36.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$9.50CDN (20%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
| Model: |
RAM Mount Meridian Stainless Steel U-Bolt Mount |
| Part No: |
RAM-B-149-MA2U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Magellan Meridian Cradle: In Use (RAM-HOL-MA2)
(752 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,594 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,920 views) |
|
What's Included In The Box? |
The RAM Mount Meridian Stainless Steel U-Bolt Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-149-MA2U |
SKU: |
RAMB149MA2 |
UPC: |
|
| Announced: |
November 30, 1999 |
First Shipped: |
May 7, 2002 |
Weight: |
0.775 lbs. |
RAM Mount Meridian Stainless Steel U-Bolt Mount Alternative Models |
RAM Mount Meridian Series Zinc U-Bolt Mount |
RAM Mount Meridian Stainless Steel U-Bolt Mount |
RAM Mount RAP-B-149-MA2 | | | |
|
Manufacturer Description |

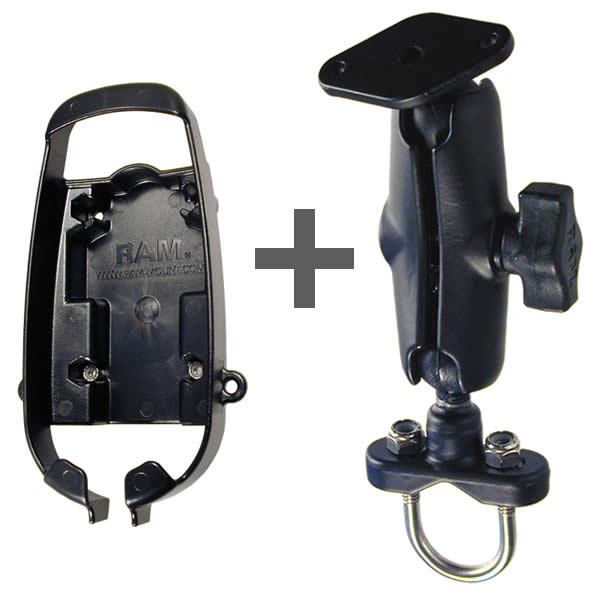

The RAM Marine Grade Aluminum Mount with Stainless Steel U-Bolt Rail Base consists of the 1'' dia. ball and socket system with RAM Plastic Cradle for the Magellan Meridian Series.
BASE DESIGN:

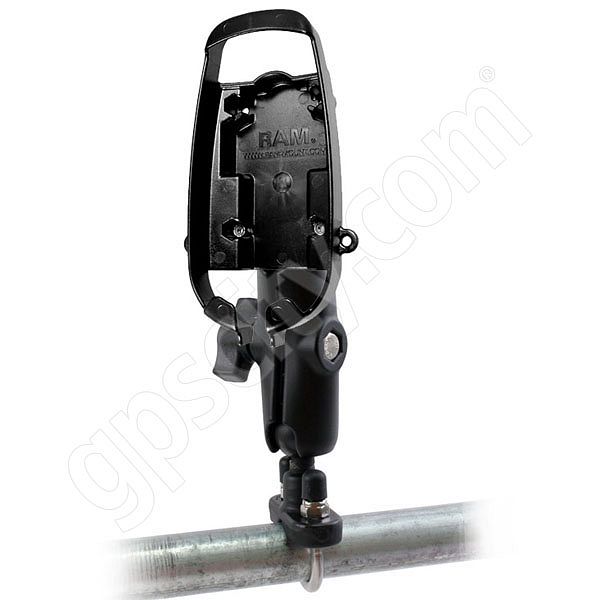

 The RAM-B-231 RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Stainless Steel U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
NOTE: This base is completely rust proof.
For Larger Rail Mounting:
For a larger rail, you can purchase the RAM Mount Stainless Steel Large Rail U-Bolt for circular rails with diameter up to 1.25 inches.
ARM DESIGN:
The Powder Coated Marine Grade Aluminum Standard Length Double Socket Arm is 3.0'' long when measured between socket centers.
CRADLE DESIGN:
 The RAM-HOL-MA2 RAM Mount High Strength Plastic Cradle is designed to hold the Magellan Meridian Series, including the following GPS units,
- Magellan Meridian GPS
- Magellan Meridian Gold
- Magellan Meridian Marine
- Magellan Meridian Platinum
- Magellan Meridian Color
All cables can stay connected to the unit while in the RAM cradle.
|
