RAM Mount Meridian Series Zinc U-Bolt Mount Product Detail
Category: RAM Mount RAM Mounts
Manufacturer: RAM Mount
Model No: RAM-B-149Z-MA2U
SKU: RAMB149ZMA2
Weight: 0.812 lbs
Share this item:
Need Assistance? We're here to help. (That's the GPS City Difference!)
For quick help selecting the right GPS unit, try our
GPS Selector Tool,
check specifications, or
compare GPS units. If you have a specific question about an
item, try entering your question using the
Questions & Answers section above - we usually respond on the same or next day. During our office hours 9AM - 6PM MDT, Mon-Fri, you can contact us using
, or reach us by phone at 1-866-GPS-CITY.
What's Included With The RAM Mount Meridian Series Zinc U-Bolt Mount? The RAM Mount Meridian Series Zinc U-Bolt Mount ships with the following items included:

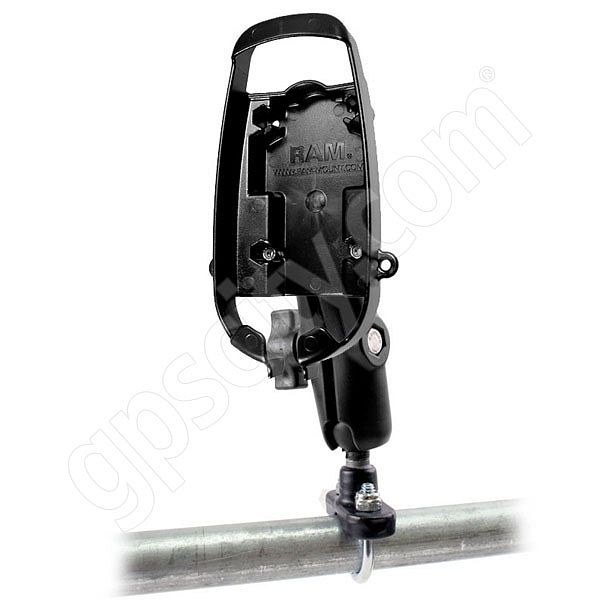

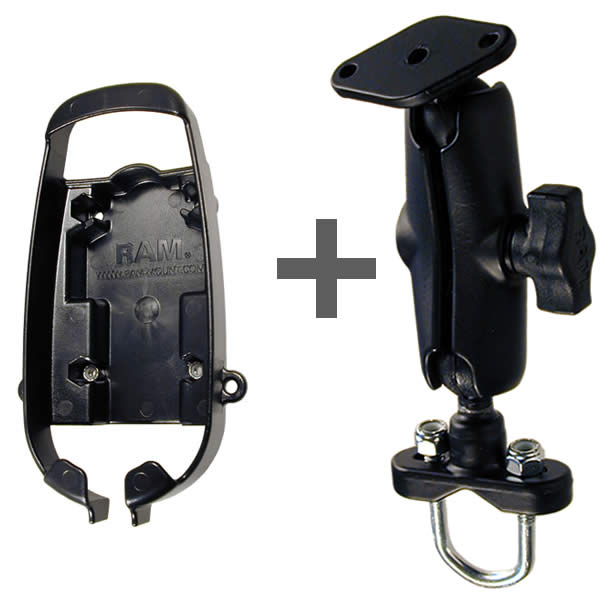

RAM Mount Meridian Series Zinc U-Bolt Mount Description The RAM-B-149Z-MA2 RAM Mount Marine Grade Aluminum Motorcycle Handlebar Mount with Zinc Coated U-Bolt Base consists of the 1 inch diameter RAM ball and socket system with RAM Plastic Cradle for the Magellan Meridian Series.
Mount Base Design:
The RAM-B-231Z RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated metal U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
Mount Arm Design: The RAM Mount Dual Socket Arm (RAM-B-201) is a B Size 1 inch Ball Dual Socket Arm, made of Marine Grade Aluminum. The arm is 3 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends.
Mount Cradle Design:
The RAM-HOL-MA2 RAM Mount High Strength Plastic Cradle is designed to hold the Magellan Meridian Series, including the following GPS units,
Magellan Meridian GPS
Magellan Meridian Gold
Magellan Meridian Marine
Magellan Meridian Platinum
Magellan Meridian Color
All cables can stay connected to the unit while in the RAM cradle.
