RAM Universal Grip Cradle: In Use (RAM-HOL-UN3)
(2,747 views) |
RAM Universal Grip Cradle: Dimensions (RAM-HOL-UN3)
(1,403 views) |
RAM Bike Mount Installation Instructions (RAP-274-1U)
(13,519 views) |
RAM Bike Mount Accessory Kit (RAP-274-1CNKIT)
(4,631 views) |
Check out our
channel. |
|
What's Included In The Box? |
The RAM Mount Medium Cell Phone Bike Mount RAP-274-1-UN3U ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Cell Phone Mounts |
| Model: |
RAP-274-1-UN3U |
SKU: |
RAP274-1UN3 |
UPC: |
|
| Announced: |
August 25, 2008 |
First Shipped: |
October 9, 2008 |
Weight: |
0.400 lbs. |
Manufacturer Description |

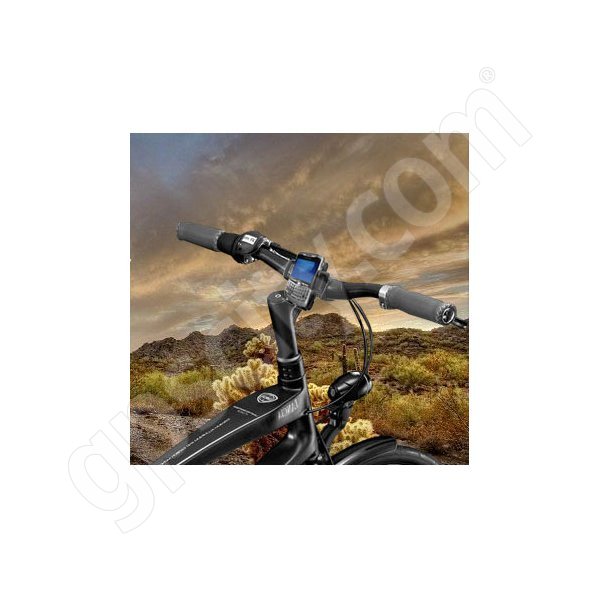

The RAP-274-1-UN3 Medium Universal Cell Phone Plastic EZ ON/OFF Bike Handlebar RAM Mount is a low profile mounting system with custom RAM plastic cradle. The EZ ON/OFF handlebar mount is a direct connection for the Medium Universal Cell Phone cradle to a bike handlebar. The mount allows you to rotate the cradle up to 360 degrees.
Universal Cell Phone Mount Options:
 To help ensure you have the Universal Mount you require, take a look at the list of available RAM universal large clamping cradle mounts on the RAM-HOL-UN3 Series of large universal cradles and mounts Page. Here you can select from suction cup universal mounts, flat surface screw down universal mounts, universal car mounts, non skid weighted universal mounts and more bundled with the RAM-HOL-UN3 Universal Series Cradle. Alternatively, you can review the complete list of RAM universal cradles and mounts.
Universal Cell Phone Mount Cradle Design:
 The RAM-HOL-UN3 Large RAM Plastic Side Clamping Cradle is designed to hold a large amount of different kinds of cell phones and electronic devices, including the Blackberry range of Phones
Using the Cradle:
This cradle has padded locking side clamps that close tightly on the item you want to hold. To release the clamp hold, simply press the button found at the bottom of the back of the cradle which will spring the clamps open. At the base of the cradle are two small support legs that move along the base edge of the cradle. The legs support the bottom of the item securely in the cradle, while allowing cable connection to the unit. This RAM universal side clamping cradle is designed to be used in a closed cabin, low vibration environment. This system is not recommended as a motorcycle mount.
Universal Cradle Dimensions:
- Minimum Grip Width: 2.32''
- Maximum Grip Width: 3.37''
- Side Clamp Height: 1.75''
- Side Clamp Depth: 0.93''
- Cradle Spine Height: 3.92''
- Cradle Spine Width: 2.25''
NOTE: The top of the cradle is open, so the items in the cradle can be larger than the height of the cradle.
Universal Cell Phone Mount Base:The RAP-274-1 RAM EZ ON/OFF High Strength Plastic Composite Handlebar Rail Mount consists of the RAM EZ ON/OFF connection system joining a dual strap base to a RAM diamond cradle plate. The mount base will fit all handlebar sizes using the zip-pull straps. With a press on the mount you activate the RAM EZ ON/OFF system allowing you to attach/remove the cradle from the base. When connected, the diamond cradle plate can rotate to your optimum viewing position.
Important Note for Motorcycle Users:This base is not recommended for motorcycles due to the heavy vibration.
|
Features & Tips |
Here is a listing we have put together of some of the common Medium Cell Phone Bike Mount RAP-274-1-UN3U features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Universal Cradle for Medium Cell Phones and similar devices.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black High Strength Composite Plastic.
- Mount Ball Size: None.
- Pivot Point Design: EZ ON/OFF adjustment point for setting your cradle level and attaching/removing your cradle and device.
- Arm Type: None - this is a low profile mount.
- Base Type: Bicycle Handlebar Rail Strap Base
- Common Applications:
- Bicycle Handlebar: Attaching to handlebars for low profile solution.
- Hiking Mounts: Attaching to hiking staffs.
- General Mounts: Attaching to available pipes or poles.
|
