See more RAM Mount items. |
| |
| List Price: |
$73.85CDN |
| Our Price: |
$55.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$17.90CDN (24%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
| Model: |
RAM Mount Madium Side Clamp Cradle Yoke Mount |
| Part No: |
RAM-B-121-UN2U (also RAM-B-121-UN2) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Universal Grip Cradle: In Use (RAM-HOL-UN2)
(1,652 views) |
RAM Universal Grip Cradle: Dimensions (RAM-HOL-UN2)
(795 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,594 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
|
What's Included In The Box? |
The RAM Mount Madium Side Clamp Cradle Yoke Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Universal Mounts |
| Model: |
RAM-B-121-UN2U |
SKU: |
RAMB121UN2 |
UPC: |
|
| Announced: |
November 25, 2004 |
First Shipped: |
October 11, 2004 |
Weight: |
1.006 lbs. |
RAM Mount Madium Side Clamp Cradle Yoke Mount Family Series |
RAM Mount Small Side Clamp Cradle Yoke Mount |
RAM Mount Madium Side Clamp Cradle Yoke Mount |
RAM Mount Large Side Clamp Cradle Yoke Mount |
RAM Mount Finger Grip Clamping Cradle Yoke Mount | | |
|
Manufacturer Description |

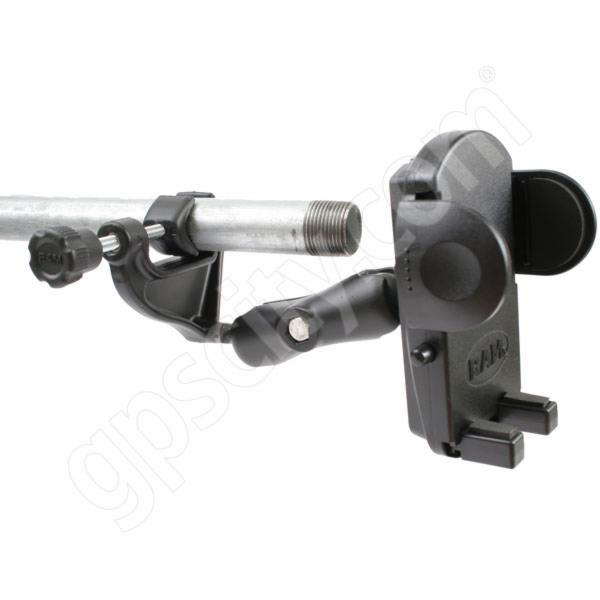

The RAM-B-121-UN2 RAM Mount Marine Grade Aluminum Yoke Mount consists of the 1 inch diameter ball and socket system with RAM Universal Medium Side Clamping Plastic Cradle.
Mount Cradle Design:
 The RAM-HOL-UN2 Medium RAM Plastic Side Clamping Cradle is designed to hold a large amount of different kinds of cell phones and electronic devices.
Using the Cradle:
This cradle has padded locking side clamps that close tightly on the item you want to hold. To release the clamp hold, simply press the button found at the bottom of the back of the cradle which will spring the clamps open. At the base of the cradle is a small support to hold the bottom of the item securely in the cradle. This RAM universal side clamping cradle is designed to be used in a closed cabin, low vibration environment. This system is not recommended as a motorcycle mount.
Universal Cradle Dimensions:
- Minimum Grip Width: 1.5''
- Maximum Grip Width: 2.6''
- Side Clamp Height: 1.88''
- Side Clamp Depth: 1.13''
- Cradle Spine Height: 3.68''
- Cradle Spine Width: 2.0''
NOTE: The top of the cradle is open, so the items in the cradle can be larger than the height of the cradle.
Mount Arm Design:
The Powder Coated Marine Grade Aluminum Standard Length Double Socket Arm is 3.0' long when measured between socket centers.
Mount Base Design:
 The RAM-B-121B RAM Mount Powder Coated Marine Grade Aluminum Yoke Clamp Mount Base fits a rail diameter from 5/8 inch to a maximum of 1 1/4 inches. The 1 inch rubber ball is at a right angle to the plane of the mount so when connected to a rail, the ball sits parallel to the rail. To mount the base, simply place the yoke clamps around the rail and then screw the large knob at the end of the threaded rod. The hand tightened clamp makes this the perfect mounting system for rental planes and unusual shaped motorbike rails.
NOTE: The rail does not need to be perfectly round to mount this base.
|
