Customer Rating:  (based on 3 reviews). Email:
 Print:
100% of our reviewers recommend this item. See more RAM Mount items. |
| |
| List Price: |
$45.33CDN |
| Our Price: |
$35.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$9.38CDN (21%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
| Model: |
RAM Mount Lowrance XOG Series Motorcycle Brake Mount |
| Part No: |
RAM-B-174-LO8U (also RAM-B-174-LO8) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,594 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,920 views) |
RAM Motorcycle Kit: On Suzuki Reservoir (RAM-B-309 Series)
(18,928 views) |
|
What's Included In The Box? |
The RAM Mount Lowrance XOG Series Motorcycle Brake Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-174-LO8U |
SKU: |
RAMB174LO8 |
UPC: |
|
| Announced: |
January 24, 2008 |
First Shipped: |
February 29, 2008 |
Weight: |
0.864 lbs. |
Manufacturer Description |

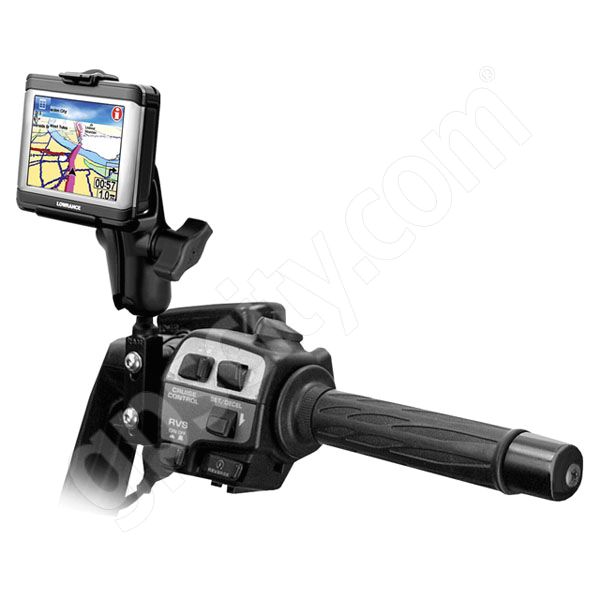

The RAM-B-174-LO8 Lowrance XOG Series Motorcycle RAM Mount is a Marine Grade Aluminum Mount with a Motorcycle Brake/Clutch Reservoir Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Lowrance XOG Series mount to your optimum viewing position.
Lowrance GPS Mount Cradle Design:
 The RAM-HOL-LO8 RAM Mount High Strength Plastic Cradle is designed to hold Lowrance Automotive GPS, including the following,
All cables can stay connected to the unit while in the RAM cradle.
Lowrance GPS Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Lowrance GPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Lowrance GPS Mount Base Design:
 The RAM-B-309-7 RAM Mount Motorcycle Kit Base can mount to either the clutch/ brake reservoir or directly to a round handle bar rail. The base is constructed of marine grade aluminum with an integrated 1 inch diameter rubber ball, hardware for rail mounting and both standard and metric mounting bolts for motorcycle reservoir mounting. The zinc coated metal u-bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 1/2 to 1.25 inches.
The base connects to the left or right side of your handlebar clutch/brake reservoir on the Honda Goldwing and other select motorcycles or you can connect directly to your handlebars with the u-bolt hardware. To see if this base will work with your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94 inches and a maximum of 1.58 inches.
Lowrance GPS Mount Options:
To help ensure you have the Lowrance XOG GPS Mount you require, take a look at the list of available RAM Lowrance GPS mounts on the Lowrance XOG Mount Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-LO8 Lowrance XOG GPS Cradle.
|
Features & Tips |
Here is a listing we have put together of some of the common Lowrance XOG Series Motorcycle Brake Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for Lowrance XOG Series.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Motorcycle Motorcycle Brake/Clutch Reservoir Base
- Common Applications:
- Motorcycle Mounts: Used mostly with Goldwing and Harley Davidson Motorcycles.
|
