| Model: |
RAM Mount Lowrance GlobalMap Strap Mount RAM-B-108-LO1U |
| Part No: |
RAM-B-108-LO1U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,594 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,920 views) |
Check out our
channel. |
|
What's Included In The Box? |
The RAM Mount Lowrance GlobalMap Strap Mount RAM-B-108-LO1U ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-108-LO1U |
SKU: |
RAMB108LO1 |
UPC: |
|
| Announced: |
November 30, 1999 |
First Shipped: |
December 21, 2001 |
Weight: |
0.826 lbs. |
Manufacturer Description |

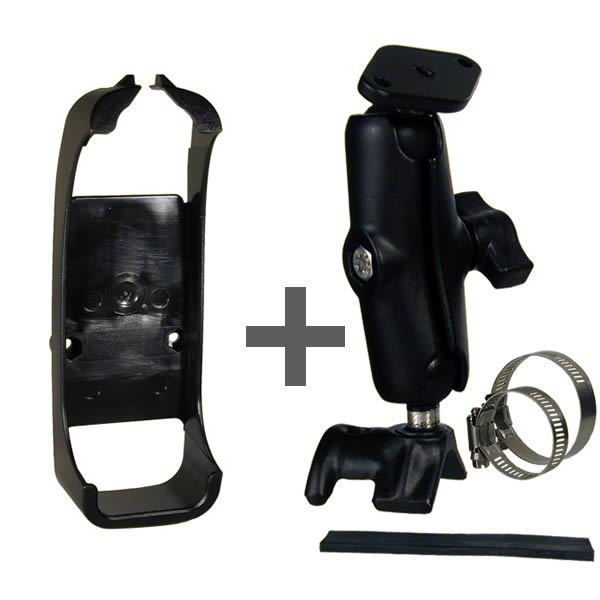

The RAM-B-108-LO1 Lowrance GlobalMap 100 and AirMap 100 Series RAM Mount is a Marine Grade Aluminum Mount with a Universal Strap Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Lowrance GPS mount to your optimum viewing position.
Lowrance GPS Mount Options:
To help ensure you have the Lowrance GolbalMap AirMap GlobalNav Mount you require, take a look at the list of available RAM Lowrance GPS mounts on the Lowrance GPS Handheld Mount Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-LO1 Lowrance GolbalMap AirMap GlobalNav Series Cradle.
Lowrance GPS Mount Cradle Design:
 The RAM-HOL-LO1 RAM Mount High Strength Plastic Cradle is designed to hold the Lowrance AirMap, GlobalMap and GlobalNav Series, including the following GPS units,
- Lowrance AirMap 100
- Lowrance GlobalMap 100
- Lowrance GlobalNav 12
- Lowrance GlobalNav 200
- Lowrance GlobalNav 212
- Eagle Explorer
All cables can stay connected to the unit while in the RAM cradle.
Lowrance GPS Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Lowrance GPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Lowrance GPS Mount Base Design:
 The RAM-B-108B RAM Mount Marine Grade Aluminum Rail Strap Mount Base is a clamping rail strap base. The base includes a 6 inch metal strap and an 8 inch long metal strap designed to fit a rail or post with a diameter from 1 to 1.9 inches. When the base is mounted, a 1 inch rubber ball sits at a right angles to the mounting post.
NOTE: The base mounts on round, square or odd shaped posts.
|
Features & Tips |
Here is a listing we have put together of some of the common Lowrance GlobalMap Strap Mount RAM-B-108-LO1U features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for Lowrance GlobalMap 100 and AirMap 100 Series.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: ATV/UTV base, Motorcycle Handlebar Base or Universal Round Pipe Strap Base
- Common Applications:
- ATV/UTV Mounts: Attaching to handlebars.
- Motorcycle Mounts: Attaching to handlebars.
- Hiking Mounts: Attaching to hiking staffs.
- Marine Mounts: Attaching to available pipes or poles.
- General Mounts: Attaching to available pipes or poles.
|
