Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$61.98CDN |
| Our Price: |
$51.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$10.03CDN (16%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
| Model: |
RAM Mount Lowrance and Humminbird Marine Rail Mount RAM-107-231U |
| Part No: |
RAM-107-231U (also RAM-107-231) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
What's Included In The Box? |
The RAM Mount Lowrance and Humminbird Marine Rail Mount RAM-107-231U ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-107-231U |
SKU: |
RAM107-231 |
UPC: |
|
| Announced: |
November 30, 1999 |
First Shipped: |
May 7, 2002 |
Weight: |
1.263 lbs. |
Manufacturer Description |

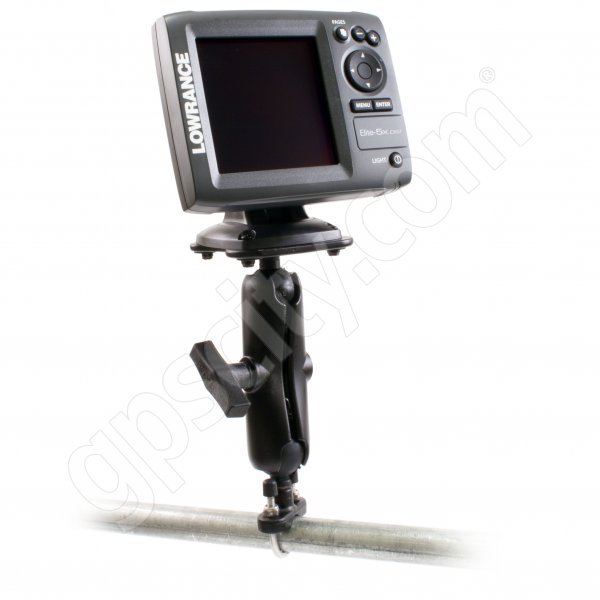

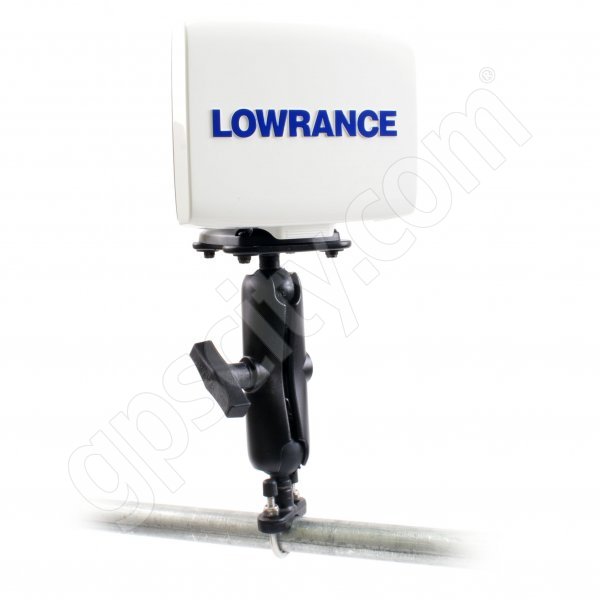

The RAM-107-231 Lowrance, Humminbird and Apelco Series RAM Mount is a Large Marine Grade Aluminum Mount with a Rail Mount Base. The mount is designed with a RAM 1.5 inch diameter patented rubber ball and socket system that has adjustment point at the cradle plate and base. With a twist of the arm knob, you can move the compatible Lowrance, Humminbird and Apelco marine mount to your optimum viewing position.
Humminbird Mount Options:To help ensure you have the Humminbird GPS Mount you require, take a look at the list of available RAM Mounts on the RAM-107B Series of Humminbird Cradles and Mounts Page. Here you can select from flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-107B Himmingbird Cradle Plate.
Humminbird Mount Cradle Plate:The RAM-107B Humminbird Cradle is a Marine Grade Aluminum Plate with 1.5 inch C Size Ball. The plate connects to the underside of select Humminbird Marine GPS mounts. For a layout of the plate hole spacing and 1.5 inch rubber ball location, take a closer look with the RAM-107B Design Drawings (pdf file).
The RAM-107B plate connects to, and is not limited to, the following models:
- Lowrance Elite 5 Series
- Lowrance Elite 5 Gold Series
- Lowrance Elite 5M Series
- Lowrance Elite 5M Gold Series
- Lowrance Elite 5X Series
- Humminbird 700 Series
- Humminbird 500 Series
- Humminbird 300 Series
- Humminbird 100 Series
- Humminbird Matrix Series (excluding Matrix 97)
- Raymarine Apelco Fishfinder with matching hole pattern
Note: This plate is also available with a 1.0 inch B Size Ball (RAM-B-107B) if you are looking for a smaller sized mount for the lighter weight devices.
Humminbird Mount Arm Design:
 The RAM-201 RAM Mount Dual Socket Arm is a 1.5 inch C size Ball Socket Arm made of Marine Grade Aluminum. The arm is 4.63 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-201 arm, take a closer look with the RAM-201 Design Drawings (pdf file).
Humminbird Mount Base Design:
|
Features & Tips |
Here is a listing we have put together of some of the common Lowrance and Humminbird Marine Rail Mount RAM-107-231U features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Plate Design: Plate that connects to the bottom of the device mount.
- Cradle Material: Black Powder Coated Marine Grade Aluminum.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1.5 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1.5 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1.5 inch Sockets.
- Arm Length: Standard length of 4.63 inches between socket centers.
- Base Type: Stainless Steel U-Bolt Rail Mount Base.
|
