Customer Images
Share your images and get a
free gpscity.ca t-shirt!
|
Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$47.55CDN |
| Our Price: |
$36.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$10.60CDN (22%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
| Model: |
RAM Mount Lowrance Airmap 2000 Yoke Aviation Mount |
| Part No: |
RAM-B-121-LO4U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,594 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,920 views) |
RAM Clamp Mount Base with B-Ball (RAM-B-121BU)
(2,122 views) |
|
What's Included In The Box? |
The RAM Mount Lowrance Airmap 2000 Yoke Aviation Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-121-LO4U |
SKU: |
RAMB121LO4 |
UPC: |
793442909054 |
| Announced: |
November 30, 1999 |
First Shipped: |
August 4, 2004 |
Weight: |
0.737 lbs. |
Manufacturer Description |

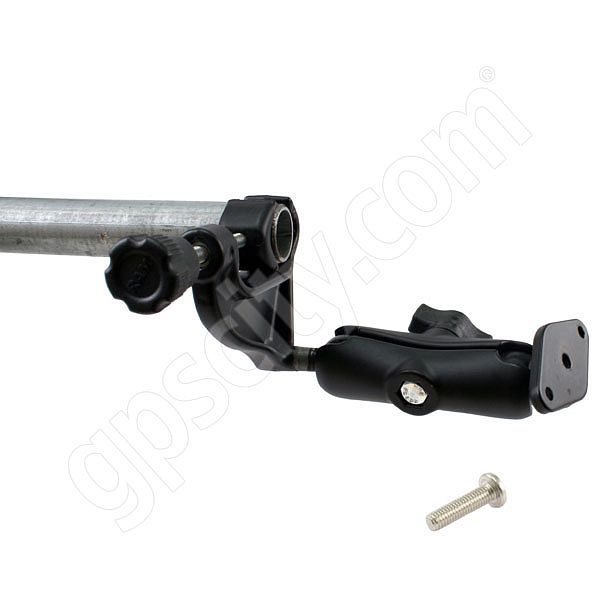

The RAM-B-121-LO4 Lowrance Airmap 2000 and iFinder H2O Series Yoke Clamping Aviation RAM Mount is a Marine Grade Aluminum Mount with a Temporary Clamp Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Lowrance Airmap 2000 and iFinder H2O Series mount to your optimum viewing position.
Note: This mount does not require any drilling for installation.
Lowrance GPS Mount Options:
To help ensure you have the Lowrance iWay 600C / 500C or AirMap 2000C Series Mount you require, take a look at the list of available RAM Lowrance GPS mounts on the Lowrance iWay and AirMap 2000C Mount Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, GPS aviation mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-LO4 Lowrance iWay 600C / 500C or AirMap 2000C Series Connector Plate.
Lowrance GPS Mount Cradle Plate Design:
The RAM-HOL-LO4 RAM Mount Aluminum Diamond Plate with Hardware connects directly to the back of the GPS or the diamond shaped recess in the cooling fans on the back of the GPS. To connect the plate you may need to remove the included mount from the back of the GPS, and using the hardware, attach the RAM-HOL-LO4 Diamond Plate to the GPS. Now you have a RAM 1 inch ball to connect directly to the LO4 mount. This mounting plate connects to the back of the following Lowrance GPS units:
- Lowrance iWay 500C
- Lowrance iWay 600C
- Lowrance AirMap 2000 Aviation Series
All cables can stay connected to the unit while connected to the RAM cradle plate.
Lowrance GPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Lowrance GPS Mount Base Design:
 The RAM-B-121B RAM Mount Powder Coated Marine Grade Aluminum Yoke Clamp Mount Base fits a rail diameter from 5/8 inch to a maximum of 1 1/4 inches. The 1 inch rubber ball is at a right angle to the plane of the mount so when connected to a rail, the ball sits parallel to the rail. To mount the base, simply place the yoke clamps around the rail and then screw the large knob at the end of the threaded rod. The hand tightened clamp makes this the perfect mounting system for rental planes and unusual shaped motorbike rails.
NOTE: The rail does not need to be perfectly round to mount this base.
|
Features & Tips |
Here is a listing we have put together of some of the common Lowrance Airmap 2000 Yoke Aviation Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for Lowrance Airmap 2000 and iFinder H2O.
- Cradle Material: High Strength Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented RAM 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Yoke Clamp Base fits rails with diameter from 5/8 inch to a maximum of 1 1/4 inch.
- Common Use: Yoke Aviation Mounting, Temporary rail mounting.
|
