| Model: |
RAM Mount Locking Suction with Long Arm Diamond Assembly |
| Part No: |
RAM-B-166U-C (also RAM-B-166-C) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,594 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
RAM Long Arm: Overview (RAM-B-201U-C)
(2,091 views) |
Suction Mount Base: In Use (RAP-224-1U)
(5,675 views) |
|
Most Popular Locking Suction with Long Arm Diamond Assembly Accessories
» View the complete accessory list for the RAM Mount Locking Suction with Long Arm Diamond Assembly. |
GPS City Super Grip Dashboard Friction Mount Base
$14.95
|
RAM Mount Black Rose Adhesive Plate for Suction Cups
$6.95
|
RAM Mount Black Large Adhesive Plate for Suction Cups
$6.95
|
RAM Mount Clear Large Adhesive Plate for Suction Cups
$5.95
|
RAM Mount RAM-A-CAN II Vehicle Cup Flat Surface Base
$28.95
|
|
What's Included In The Box? |
The RAM Mount Locking Suction with Long Arm Diamond Assembly ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Cradle Mounts |
| Model: |
RAM-B-166U-C |
SKU: |
RAMB166-C |
UPC: |
793442923746 |
| Announced: |
November 30, 1999 |
First Shipped: |
February 18, 2003 |
Weight: |
0.850 lbs. |
RAM Mount Locking Suction with Long Arm Diamond Assembly Family Series |
RAM Mount Locking Suction Cup with 1.0 inch Ball Metal Plate |
RAM Mount Locking Suction Base with Plastic 1 inch Ball Plate | | | | |
|
RAM Mount Locking Suction with Long Arm Diamond Assembly Alternative Models |
RAM Mount 4 inch dia Suction with Standard Arm Diamond Assembly |
RAM Mount Plastic Cradle Plate Dual Lite Suction Mount |
RAM Mount Cradle Plate Suction Mount RAM-B-166U |
RAM Mount Diamond Plate Suction Mount RAP-B-166U | | |
|
Manufacturer Description |

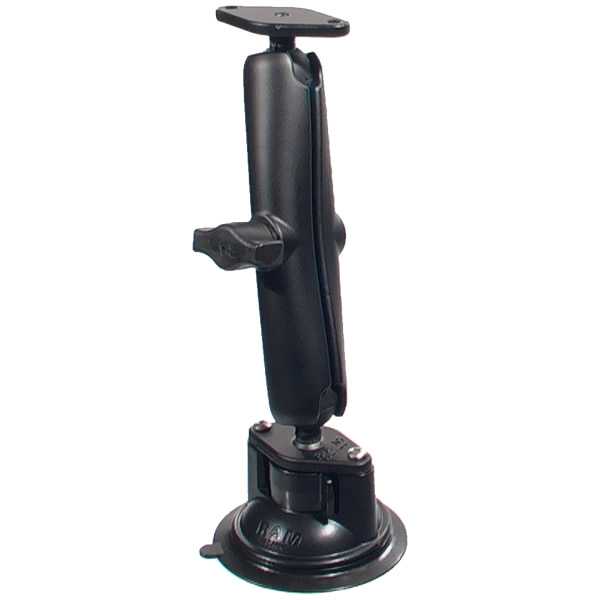

The RAM-B-166-C Universal Long Windshield Suction Cup RAM Mount is a Marine Grade Aluminum Mount with a 3.25 inch Locking Suction Base and Diamond Plate End. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle plate and base. With a twist of the arm knob, you can move the universal locking suction base mount to your optimum viewing position. This system is a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the diamond plate will connect to a large variety of third party cradles and mounts.
Note: This mount does not require any drilling for installation.
Universal Mount End Plate Design:
 The RAM-B-238 Powder Coated Marine Grade Aluminum Universal Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 1 1/4 x 2 1/2 inch Diamond Plate. The plate has two pre-drilled holes positioned at either tip of the diamond plate. The hole pattern found on the Diamond Plate will connect to a large variety of RAM Mount and third party cradles and mounts, including those with the industry standard AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Universal Mount Arm Design:
 The RAM-B-201-C RAM Mount Dual Socket Long Arm is a 1 inch B size Ball Dual Socket Arm made of Marine Grade Aluminum. The arm is 5.25 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201C arm, take a closer look with the RAM-B-201C Design Drawings (pdf file).
Universal Mount Base Design:
The RAM-B-224-1 RAM Mount Plastic Locking 3.25 inch diameter Rubber Suction Cup Base, with Marine Grade Aluminum Diamond Plate, is designed to have an extra strong hold on any smooth non-porous surface. With a twist on the locking knob, the suction cup base adheres to any glass¹ or non-porous plastic surface, as found on our Non Skid Base with Plastic Disk and Plastic Adhesive Disk.
Connected to the top of the Suction Cup is a RAM-B-238 RAM Mount Marine Grade Aluminum Diamond Plate with 1 inch diameter Rubber Ball. This plate allows the suction cup to join to an open socket found on the RAM 1 inch diameter socket arms.
¹ Important legal note to California and Minnesota Drivers
Suction Cup Base Mounting Options:We currently offer three alternative solutions for mounting your suction cup mount in a location other than a windshield:
- The Super Grip Non Skid Base with round plastic plate, is a weighted base that can be placed on your dash without an adhesive or drilling. Simply place the base on your dash, or any flat surface and then attach the suction cup to the round plastic plate. This is perfect when you want a temporary mounting solution but the windshield mount just isn't the answer.
- The Suction Cup Adhesive Disk with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply stick the the plate to any flat surface and then attach the suction cup to the plate. This is perfect when you need to attach your suction cup mount to your car dash vertically or horizontally, rather than to your windshield.
- The Suction Cup Drink Cup Holder with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply place the base into any cup holder in your vehicle and then attach the suction cup to the plate found on top. This is perfect when you need to attach your suction cup mount away from the windshield or when you just want the mount off the dash.
|
Features & Tips |
Here is a listing we have put together of some of the common Locking Suction with Long Arm Diamond Assembly features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- End Plate Design: Diamond Shape Plate with a hole at either tip.
- End Plate Material: Black Powder Coated Marine Grade Aluminum.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Long length of 5.25 inches between socket centers.
- Base Type: Round 3.25 inch diameter Locking Suction Cup for non-porous surfaces
- Common Applications:
|
