| Model: |
RAM Mount Locking Suction Pivot Mount Aluminum Plate |
| Part No: |
RAP-B-104-224-RA1U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,594 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
Check out our
channel. | |
|
Most Popular Locking Suction Pivot Mount Aluminum Plate Accessories
» View the complete accessory list for the RAM Mount Locking Suction Pivot Mount Aluminum Plate. |
GPS City Super Grip Dashboard Friction Mount Base
$14.95
|
RAM Mount Black Rose Adhesive Plate for Suction Cups
$6.95
|
RAM Mount Black Large Adhesive Plate for Suction Cups
$6.95
|
RAM Mount Clear Large Adhesive Plate for Suction Cups
$5.95
|
RAM Mount RAM-A-CAN II Vehicle Cup Flat Surface Base
$28.95
|
|
What's Included In The Box? |
The RAM Mount Locking Suction Pivot Mount Aluminum Plate ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Suction Cup Mounts |
| Model: |
RAP-B-104-224-RA1U |
SKU: |
RAPB104-224RA1 |
UPC: |
793442907708 |
| Announced: |
January 1, 2008 |
First Shipped: |
January 1, 2008 |
Weight: |
0.494 lbs. |
Manufacturer Description |

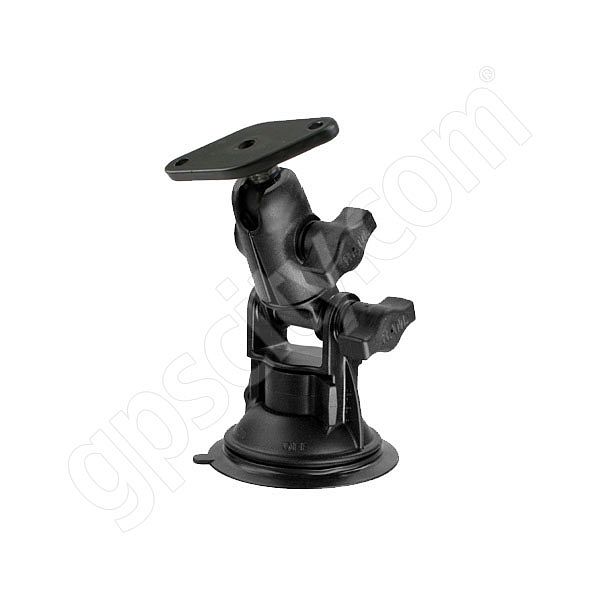

The RAP-B-104-224-RA1 RAM Mount High Strength Plastic Mount with 3.25 inch Locking Suction Base consists of the 1 inch diameter ball and socket with rotating and pivoting button system and Aluminum RAM Universal Diamond Plate.
Mount End Plate Design:
 The RAM-B-238 Powder Coated Marine Grade Aluminum Universal Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 1 1/4 x 2 1/2 inch Diamond Plate. The plate has two pre-drilled holes positioned at either tip of the diamond plate. The hole pattern found on the Diamond Plate will connect to a large variety of RAM Mount and third party cradles and mounts, including those with the industry standard AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Mount Arm Design:
 The RAP-B-200-1 RAM Mount Socket and Octagon Button Arm includes a 1 inch B size Ball Socket and is made of High Strength Plastic. The arm is 1.75 inches long when measured from socket center to button socket end. The side of the arm includes a tightening knob which allows you to open and close the socket ends.
Mount Base Design: The RAP-224-2 RAM Mount High Strength Plastic Locking 3.25 inch diameter Rubber Suction Cup Base is designed to have an extra strong hold on any smooth non-porous surface. With a twist on the locking knob, the suction cup base adheres to any glass¹ or non-porous plastic surface, as found on our Super Grip Plastic Non Skid Base and Plastic Adhesive Disk.
Connected to the top of the RAM suction cup is a male RAM plastic octagon button with pivot connection. The pivot design allows the mount to tip from 0 to 90 degrees to the suction cup, while the octagon button connections allows the arm to rotate 360 degrees. The button end connects directly to a RAP-B-200-1 Plastic Arm with Socket and Female Button ends.
¹ Important legal note to California and Minnesota Drivers
Suction Cup Base Mounting Options:We currently offer three alternative solutions for mounting your suction cup mount in a location other than a windshield:
- The Super Grip Non Skid Base with round plastic plate, is a weighted base that can be placed on your dash without an adhesive or drilling. Simply place the base on your dash, or any flat surface and then attach the suction cup to the round plastic plate. This is perfect when you want a temporary mounting solution but the windshield mount just isn't the answer.
- The Suction Cup Adhesive Disk with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply stick the the plate to any flat surface and then attach the suction cup to the plate. This is perfect when you need to attach your suction cup mount to your car dash vertically or horizontally, rather than to your windshield.
- The Suction Cup Drink Cup Holder with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply place the base into any cup holder in your vehicle and then attach the suction cup to the plate found on top. This is perfect when you need to attach your suction cup mount away from the windshield or when you just want the mount off the dash.
|
