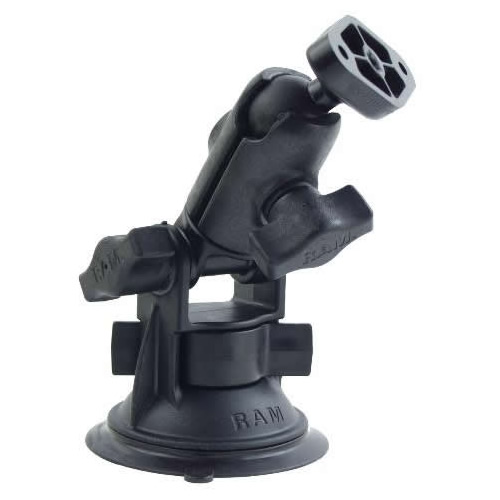

RAM Mount Plastic Locking Suction Base with Pivot Arm and Diamond Plate Assembly


RAM Mount Locking Suction Base and Pivot Arm Diamond Assembly
Customer Images
Jet Ski navigation by Steve FordWork!! by guy
Share your images and get a
free gpscity.ca t-shirt!
Customer Rating: (based on 8 reviews).    Email:  Email the RAM Mount Locking Suction Base and Pivot Arm Diamond Assembly page     Print:  Print the RAM Mount Locking Suction Base and Pivot Arm Diamond Assembly page
100% of our reviewers recommend this item. See more RAM Mount items.

List Price: $30.47CDN
Our Price: $24.95CDN (and this item ships for $4.99. Learn more.)
You Save: $5.52CDN (18%)

Availability:

In Stock.
Ships from Calgary today, February 8.


Qty:

Model: RAM Mount Locking Suction Base and Pivot Arm Diamond Assembly
Part No: RAP-B-104-224U (also RAP-B-104-224)
Condition: Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses)
Price Match: Get an Instant Price Match in about 5 minutes (during business hours).

Learn More with our Instructional Videos   (More GPS City videos. Visit our Youtube channel.)
RAM Suction Mount: Overview (RAP-B-104-224) Video
RAM Suction Mount: Overview (RAP-B-104-224)
(1,734 views)
RAM Diamond Plate: Overview (RAP-B-238) Video
RAM Diamond Plate: Overview (RAP-B-238)
(2,834 views)

See More Videos:

GPS City Video Page



RAM Mount Sub-Component Breakdown
Here are the sub-component parts that make up this item:

Diamond Plate with 1 inch Ball RAP-B-238U
+
Plastic Arm with Ball and Button Socket RAP-B-200-1U
+
3.25 inch dia Locking Suction Base with Pivot Button RAP-224-2U


Most Popular RAM Mount Locking Suction Base and Pivot Arm Diamond Assembly Accessories     (View all accessories.)
Go to the GPS City Super Grip Dashboard Friction Mount Base
GPS City Super Grip Dashboard Friction Mount Base
$14.95
Go to the RAM Mount Black Rose Adhesive Plate for Suction Cups
RAM Mount Black Rose Adhesive Plate for Suction Cups
$5.72
Go to the RAM Mount Black Large Adhesive Plate for Suction Cups
RAM Mount Black Large Adhesive Plate for Suction Cups
$4.41
Go to the RAM Mount Clear Large Adhesive Plate for Suction Cups
RAM Mount Clear Large Adhesive Plate for Suction Cups
$4.41
Go to the RAM Mount RAM-A-CAN II Vehicle Cup Flat Surface Base
RAM Mount RAM-A-CAN II Vehicle Cup Flat Surface Base
$28.95


What's Included In The Box?

The RAM Mount Locking Suction Base and Pivot Arm Diamond Assembly ships with the following items included:


Product Information
Manufacturer: National Products, Inc Category: All Purpose Mounts Type: RAM Suction Mount
Model: RAP-B-104-224U SKU: RAPB104-224 UPC: 793442901553
Announced: April 28, 2005 First Shipped: June 1, 2005 Weight: 0.469 lbs.

RAM Mount Locking Suction Base and Pivot Arm Diamond Assembly Description
The RAP-B-104-224 RAM Mount High Strength Plastic Mount with 3.25 inch Locking Suction Base consists of the 1 inch diameter ball and socket with rotating and pivoting button system and RAM Universal Diamond Plate.

Mount End Plate Design:

The RAP-B-238 RAM Mount High Strength Plastic Composite Universal Plate has a 1.0 inch diameter rubber ball connected at right angles to a 1 1/4 x 2 1/2 inch Diamond Plate. The plate has two holes positioned at either tip of the diamond plate. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file) (Note: the Plastic RAP-B-238 Plate is thicker than the RAM-B-238 Design Drawings shown).

Mount Arm Design:


The RAP-B-200-1 RAM Mount Socket and Octagon Button Arm includes a 1 inch B size Ball Socket and is made of High Strength Plastic. The arm is 1.75 inches long when measured from socket center to button socket end. The side of the arm includes a tightening knob which allows you to open and close the socket ends.

Mount Base Design:

The RAP-224-2 RAM Mount High Strength Plastic Locking 3.25 inch diameter Rubber Suction Cup Base is designed to have an extra strong hold on any smooth non-porous surface. With a twist on the locking knob, the suction cup base adheres to any glass¹ or non-porous plastic surface, as found on our Super Grip Plastic Non Skid Base and Plastic Adhesive Disk.

Connected to the top of the RAM suction cup is a male RAM plastic octagon button with pivot connection. The pivot design allows the mount to tip from 0 to 90 degrees to the suction cup, while the octagon button connections allows the arm to rotate 360 degrees. The button end connects directly to a RAP-B-200-1 Plastic Arm with Socket and Female Button ends.

¹ Important legal note to California and Minnesota Drivers

Suction Cup Base Mounting Options:

We currently offer three alternative solutions for mounting your suction cup mount in a location other than a windshield:
  • The Super Grip Non Skid Base with round plastic plate, is a weighted base that can be placed on your dash without an adhesive or drilling. Simply place the base on your dash, or any flat surface and then attach the suction cup to the round plastic plate. This is perfect when you want a temporary mounting solution but the windshield mount just isn't the answer.

  • The Suction Cup Adhesive Disk with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply stick the the plate to any flat surface and then attach the suction cup to the plate. This is perfect when you need to attach your suction cup mount to your car dash vertically or horizontally, rather than to your windshield.

  • The Suction Cup Drink Cup Holder with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply place the base into any cup holder in your vehicle and then attach the suction cup to the plate found on top. This is perfect when you need to attach your suction cup mount away from the windshield or when you just want the mount off the dash.
