Customer Rating:  (based on 7 reviews). Email:
 Print:
100% of our reviewers recommend this item. See more RAM Mount items. |
| |
| List Price: |
$35.16CDN |
| Our Price: |
$27.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$7.21CDN (21%) |
Availability: |
Ships by Thursday, June 7, 2012. |
|
| |
| Model: |
RAM Mount Humminbird Piranha Screw Down Marine Mount |
| Part No: |
RAM-B-107-1U (also RAM-B-107-1) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Medium Arm: Overview (RAM-B-201U)
(21,920 views) |
RAM Rectangular Plate: Comparison Overview
(2,134 views) |
RAM Round Plate: Overview (RAM-B-202U)
(8,290 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
|
What's Included In The Box? |
The RAM Mount Humminbird Piranha Screw Down Marine Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-107-1U |
SKU: |
RAMB107-1 |
UPC: |
793442110726 |
| Announced: |
November 30, 1999 |
First Shipped: |
August 27, 2003 |
Weight: |
0.600 lbs. |
Manufacturer Description |

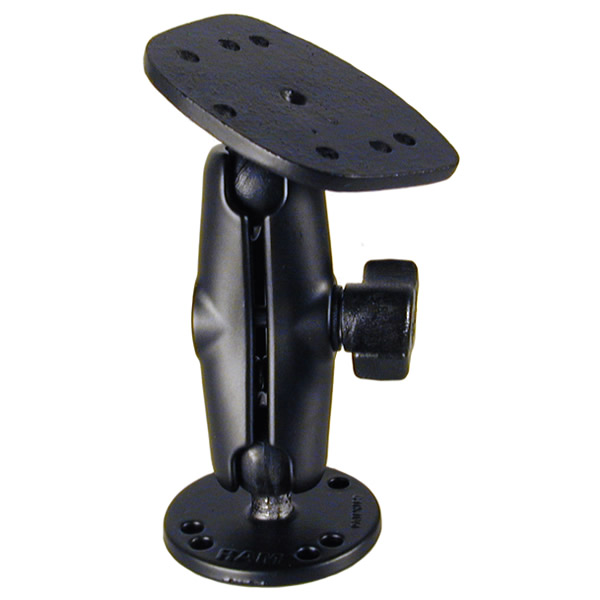

The RAM-B-107-1 Humminbird and Eagle Series RAM Mount is a Marine Grade Aluminum Mount with a Flat Surface Screw Down Base and RAM Connection Plate. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle plate and base. With a twist of the arm knob, you can move the Humminbird and Eagle marine mount to your optimum viewing position.
Humminbird and Eagle Mount Options:To help ensure you have the Humminbird and Eagle GPS Mount you require, take a look at the list of available RAM Mounts on the RAM-B-107-1B Series of Humminbird/Eagle Cradles and Mounts Page. Here you can select from flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-B-107-1B Himmingbird and Eagle Cradle Plate.
Humminbird and Eagle Mount Cradle Plate:The RAM-B-107-1B Humminbird and Eagle Cradle is a Marine Grade Aluminum Plate with 1.0 inch B Size Ball. The plate connects to the underside of select Humminbird Piranah MAX and Eagle Cuda unit mounts.
The RAM-B-107-1B plate end connects to, and is not limited to, the following models:
- Humminbird Piranha MAX 20
- Humminbird Piranha MAX 15
- Humminbird Piranha MAX 10
- Eagle Cuda 240i
- Eagle Cuda 240
- Eagle Cude 168
- Eagle Cuda 128
- Eagle FishEasy 320C
- Eagle FishEasy 240
Humminbird and Eagle Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Humminbird and Eagle Mount Base Design:
 The RAM-B-202 RAM Mount Marine Grade Aluminum Screw Down Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 2.5 inch diameter Plate. The plate has pre-drilled holes in the base plate, including the universal AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
Mount Base Mounting Solutions:Mounting hardware is NOT included with the purchase of the RAM-B-202. A semi-permanent solution for mounting this base is by using the RAM double sided adhesive disk (RAM-202PSA). The disk will hold the RAM-B-202 base in many different locations without screws.
|
Features & Tips |
Here is a listing we have put together of some of the common Humminbird Piranha Screw Down Marine Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Plate Design: Plate that connects to the bottom of the device mount.
- Cradle Material: Black Powder Coated Marine Grade Aluminum.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Round 2.5 inch diameter plate design to be bolted to a flat surface.
- Common Applications:
- Marine Mounts: Attaching to boat dash or flat surface with hardware.
|
