| Model: |
RAM Mount Humminbird Mini Screw Down Madium Marine Mount |
| Part No: |
RAM-B-107U-238 |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Medium Arm: Overview (RAM-B-201U)
(21,920 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,594 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
Check out our
channel. |
|
What's Included In The Box? |
The RAM Mount Humminbird Mini Screw Down Madium Marine Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-107U-238 |
SKU: |
RAMB107-238 |
UPC: |
793442905124 |
| Announced: |
March 1, 2008 |
First Shipped: |
March 1, 2008 |
Weight: |
0.713 lbs. |
Manufacturer Description |

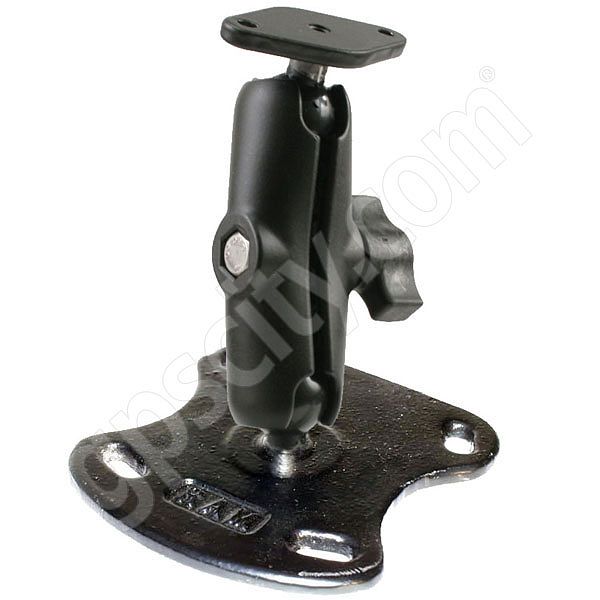

The RAM-B-107 Humminbird and Apelco Series RAM Mount is a Medium Marine Grade Aluminum Mount with a Mini Flat Surface Screw Down Base and RAM Connection Plate. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle plate and base. With a twist of the arm knob, you can move the Humminbird and Apelco marine mount to your optimum viewing position.
Humminbird Mount Options:To help ensure you have the Humminbird GPS Mount you require, take a look at the list of available RAM Mounts on the RAM-B-107B Series of Humminbird Cradles and Mounts Page. Here you can select from flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-B-107B Himmingbird Cradle Plate.
Humminbird Mount Cradle Plate:The RAM-B-107B Humminbird Cradle is a Marine Grade Aluminum Plate with 1.0 inch B Size Ball. The plate connects to the underside of select Humminbird Marine GPS mounts. For a layout of the plate hole spacing, take a closer look with the RAM-107B Design Drawings in PDF. (Please note that the ball size shown 1.5 inch in diameter, not 1.0 inch as per the RAM-B-107B)
The RAM-107B plate connects to, and is not limited to, the following models:
- Humminbird 500 Series
- Humminbird 300 Series
- Humminbird 100 Series
- Humminbird Matrix Series (excluding Matrix 97)
- Raymarine Apelco Fishfinder with matching hole pattern
Note: This plate is also available with a 1.5 inch C Size Ball (RAM-107B) if you are looking for a larger sized mount for the heavier weight devices.
Humminbird Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Humminbird Mount Base Design:
 The RAM-B-238 Powder Coated Marine Grade Aluminum Universal Base Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 1 1/4 x 2 1/2 inch Diamond Plate. The plate has two pre-drilled holes positioned at either tip of the diamond plate. This is the perfect mounting solution when you need to mount your device with a small foot print. Great as a motorcycle mount when mounting on a small ledge or vehicle mount when you want to bolt inside your vehicle. This base needs to be bolted or screwed to the mounting surface. Mounting hardware is not included. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
|
Features & Tips |
Here is a listing we have put together of some of the common Humminbird Mini Screw Down Madium Marine Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Plate Design: Plate that connects to the bottom of the device mount.
- Cradle Material: Black Powder Coated Marine Grade Aluminum.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Diamond plate design (with mini foot print) to be bolted to a flat surface.
- Common Applications:
- Marine Mounts: Attaching to boat dash or flat surface with hardware.
|
