Product Detail & Documentation (all files in PDF format)
Manufacturer
RAM Mount
Category
GPS Mounts
Model
RAM-B-149Z-GA14U
SKU
RAMB149ZGA14
Weight
0.794 lbs.
Share this item:
Need Assistance? We're here to help. (That's the GPS City Difference!)
For quick help selecting the right GPS unit, try our
GPS Selector Tool,
check specifications, or
compare GPS units. If you have a specific question about an
item, try entering your question using the
Q&A (Questions & Answers) section above - we usually respond on the same or next day. During our office hours 9AM - 6PM MDT, Mon-Fri, you can contact us using
, or reach us by phone at 1-866-GPS-CITY.
What's Included With The RAM Mount GPSMAP 76Cx 76CSx 96C Zinc U-Bolt Mount? The RAM Mount GPSMAP 76Cx 76CSx 96C Zinc U-Bolt Mount ships with the following items included:

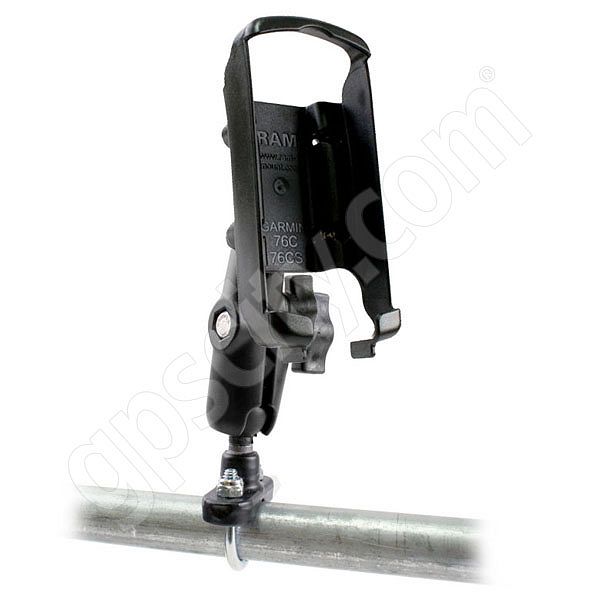

RAM Mount GPSMAP 76Cx 76CSx 96C Zinc U-Bolt Mount Description The RAM-B-149Z-GA14 Garmin GPSMAP 76C Color and 96 Series Motorcycle RAM Mount is a Marine Grade Aluminum Mount with a Zinc Coated U-Bolt Rail Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Garmin GPSMAP 76C Color and 96 Series mount to your optimum viewing position.
Garmin GPS Mount Options:
To help ensure you have the Garmin GPSMAP 76C, GPSMAP 76Cx, GPSMAP 76CSx and GPSMAP 96 Series Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-GA14 Series of Garmin GPSMAP 76C, GPSMAP 76Cx, GPSMAP 76CSx and GPSMAP 96 Cradles and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA14 Garmin GPSMAP 76C, GPSMAP 76Cx, GPSMAP 76CSx and GPSMAP 96 Series Cradle.
Garmin GPS Mount Cradle Design:

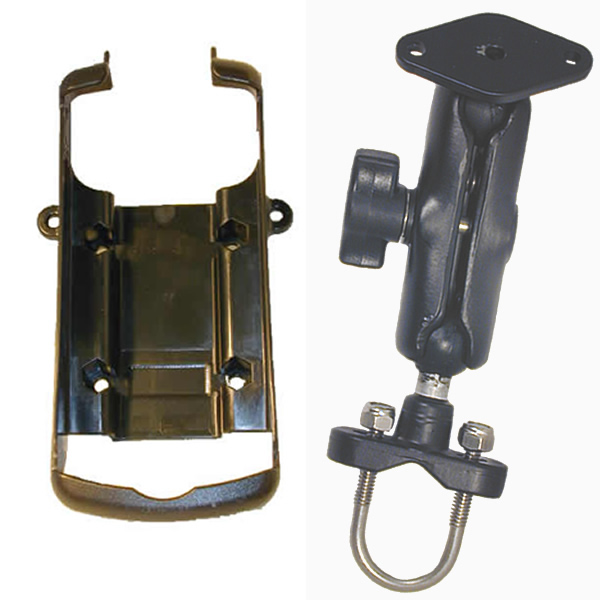

The RAM-HOL-GA14 Garmin GPSMAP 76C and GPSMAP 96 Series RAM Mount Cradle is a High Strength Plastic Composite Cradle designed specifically to hold the Garmin GPSMAP 76C and GPSMAP 96 Series, including the following GPS units,
Garmin GPSMAP 76Cx
Garmin GPSMAP 76CSx
Garmin GPSMAP 76C
Garmin GPSMAP 76CS
Garmin GPSMAP 96
Garmin GPSMAP 96C
All cables can stay connected to the unit while in the RAM cradle.
The Garmin GPS 72, GPS 76, GPSMAP 76 and GPSMAP 76S WILL NOT fit this cradle. These units require the RAM-HOL-GA6 cradle.
Garmin GPS Mount Cradle Plate:
The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Garmin GPS Mount Arm Design:
The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Garmin GPS Mount Base Design:
The RAM-B-231Z RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated metal U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
