Product Detail & Documentation (all files in PDF format)
Manufacturer
RAM Mount
Category
GPS Mounts
Model
RAM-B-138-GA14U
SKU
RAMB138GA14
Weight
0.690 lbs.
Share this item:
Need Assistance? We're here to help. (That's the GPS City Difference!)
For quick help selecting the right GPS unit, try our
GPS Selector Tool,
check specifications, or
compare GPS units. If you have a specific question about an
item, try entering your question using the
Q&A (Questions & Answers) section above - we usually respond on the same or next day. During our office hours 9AM - 6PM MDT, Mon-Fri, you can contact us using
, or reach us by phone at 1-866-GPS-CITY.
What's Included With The RAM Mount GPSMAP 76CSx Screw Down Mount RAM-B-138-GA14U? The RAM Mount GPSMAP 76CSx Screw Down Mount RAM-B-138-GA14U ships with the following items included:

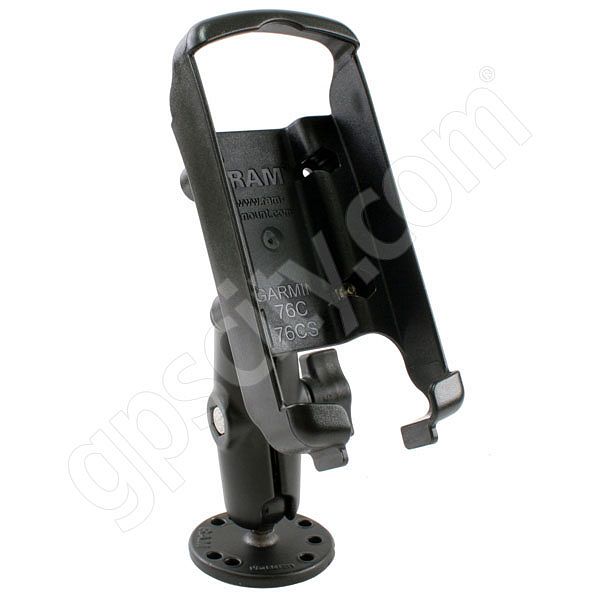

RAM Mount GPSMAP 76CSx Screw Down Mount RAM-B-138-GA14U Description The RAM Marine Grade Aluminum Dash Mount consists of the 1'' dia. ball and socket system with RAM Plastic Cradle for the Garmin GPSMAP 76C and GPSMAP 76CS Series.
Mount Base Design:
The RAM-B-202 RAM Mount Marine Grade Aluminum Screw Down Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 2.5 inch diameter Plate. The plate has pre-drilled holes in the base plate, including the universal AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
Mount Base Mounting Solutions:
Mounting hardware is NOT included with the purchase of the RAM-B-202. A semi-permanent solution for mounting this base is by using the RAM double sided adhesive disk (RAM-202PSA). The disk will hold the RAM-B-202 base in many different locations without screws.
Mount Arm Design: The RAM Mount Dual Socket Arm (RAM-B-201) is a B Size 1 inch Ball Dual Socket Arm, made of Marine Grade Aluminum. The arm is 3 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends.
Mount Cradle Design:
The RAM-HOL-GA14 Garmin GPSMAP 76C and GPSMAP 96 Series RAM Mount Cradle is a High Strength Plastic Composite Cradle designed specifically to hold the Garmin GPSMAP 76C and GPSMAP 96 Series, including the following GPS units,
Garmin GPSMAP 76Cx
Garmin GPSMAP 76CSx
Garmin GPSMAP 76C
Garmin GPSMAP 76CS
Garmin GPSMAP 96
Garmin GPSMAP 96C
All cables can stay connected to the unit while in the RAM cradle.
The Garmin GPS 72, GPS 76, GPSMAP 76 and GPSMAP 76S WILL NOT fit this cradle. These units require the RAM-HOL-GA6 cradle.
