RAM Garmin GPSMAP Cradle: In Use (RAM-HOL-GA7U)
(2,042 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,594 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
RAM Long Arm: Overview (RAM-B-201U-C)
(2,091 views) |
|
What's Included In The Box? |
The RAM Mount GPSMAP 196 296 and Camera Glare Shield Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-177C-GA7AU |
SKU: |
RAMB177CGA7A |
UPC: |
|
| Announced: |
May 2, 2007 |
First Shipped: |
June 1, 2007 |
Weight: |
1.444 lbs. |
Manufacturer Description |

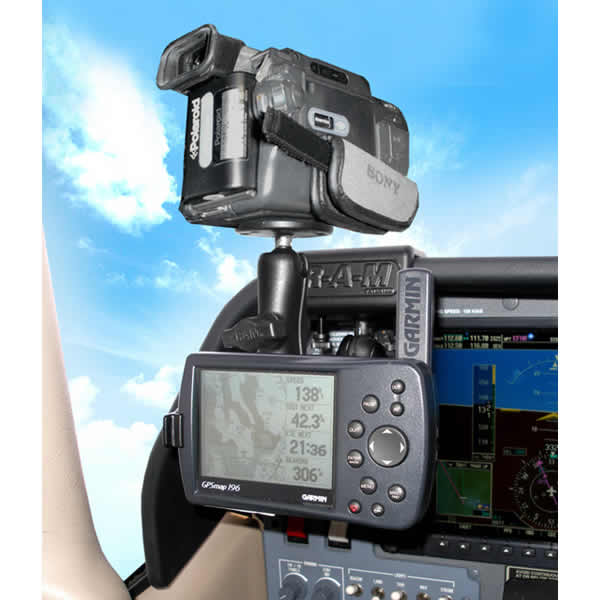

The RAM-B-177C-GA7A Garmin GPSMAP 296 Series and Camera RAM Mount is a Marine Grade Aluminum Mount with a Glare Shield Clamp Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has an adjustment point at the cradle, base and dual arm junction point. With a twist of the arm knob, you can move the Garmin GPSMAP x76, x78 and x96 Series, including the Garmin GPSMAP 176, 176C, 196, 276C, 296, 376C, 378C and 478C mount to your optimum viewing position.
Camera Cradle Design:
The RAM-B-202A RAM Mount Powder Coated Marine Grade Aluminum Universal Camera Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 2.5 inch diameter Plate with a centered 1/4''-20 thread. The plate adds support to thread, allowing a more stable connection with the camera.
Note: The male 1/4'' long, 1/4''-20 thread in the middle of the 2.5'' diameter plate will connect to the standard female thread found at the bottom of most still and video cameras. An alternative to this camera mounting system is the RAM-B-237 Male 1/4''-20 Threaded Ball.
Camera Mount Arm Design:
 The RAM-B-201-A RAM Mount Dual Socket Short Arm is a 1 inch B size Ball Dual Socket Arm made of Marine Grade Aluminum. The arm is 1.75 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201A arm, take a closer look with the RAM-B-201A Design Drawings (pdf file).
Garmin GPS Mount Cradle Design:
The RAM-HOL-GA7 High Strength Plastic Cradle is designed to hold the Garmin GPSMAP x76, x78 and Aviation x96 Series of GPS which includes, and is not limited to, the following GPS units,
- Garmin GPSMAP 176
- Garmin GPSMAP 176C
- Garmin GPSMAP 276C
- Garmin GPSMAP 376C
- Garmin GPSMAP 378
- Garmin GPSMAP 478
- Garmin GPSMAP 196 (Aviation GPS)
- Garmin GPSMAP 296 (Aviation GPS)
- Garmin GPSMAP 396 (Aviation GPS)
- Garmin GPSMAP 496 (Aviation GPS)
All cables can stay connected to the unit while in the RAM cradle.
Garmin GPS Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Garmin GPS Mount Arm Design:
 The RAM-B-201-C RAM Mount Dual Socket Long Arm is a 1 inch B size Ball Dual Socket Arm made of Marine Grade Aluminum. The arm is 5.25 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201C arm, take a closer look with the RAM-B-201C Design Drawings (pdf file).
Camera and Garmin GPS Mount Base Design:
The RAM-B-259U Powder Coated Marine Grade Aluminum U-Channel Clamp Base is designed to mount to the lip edge of a flat surface up to 1'' thick. Popular mounting edges include a car side window edge lip, table edge or glare shield on an airplance.
The base has two plastic bolts that, when tightened, clamp the base to the lip surface. A RAM 1'' diameter rubber ball is connected to the base allowing you to connect a RAM 1'' diamter arm socket and connection plates to create the perfect mount for your application.
Garmin GPS Mount Options:
To help ensure you have the correct Garmin GPSMAP x76, x78 and x96 Series Mount for your needs, take a look at the list of available RAM Garmin x76, x78 and x96 mounts on the Garmin GPSMAP x76, x78 and x96 Series Mount Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts, aviation GPS mounts and more bundled with the RAM-HOL-GA7 Garmin GPSMAP x76, x78 and x96 Series Cradle.
Camera Mount Options:
 To help ensure you have the Camera Mount you require, take a look at the list of available RAM Camera and CCTV mounts with a 1/4-20 male thread on the RAM Camera and CCTV Cradles and Mounts Page. Here you can select from suction cup camera mounts, flat surface screw down camera mounts, camera car mounts, wall camera mounts and more bundled with a RAM 1/4-20 male thread for Camera and CCTV mounting.
|
Features & Tips |
Here is a listing we have put together of some of the common GPSMAP 196 296 and Camera Glare Shield Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- GPS Cradle Design: Custom Cradle for Garmin GPSMAP x76, x78 and x96 Series.
- GPS Cradle Material: Black High Strength Composite Plastic.
- Camera Cradle Design: Cradle plate with 1/4-20 thread for Camera Mounting.
- Camera Cradle Material: Black Powder Coated Marine Grade Aluminum.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Lengths: Short length of 1.75 inches between socket centers and long length of 5.25 inches between socket centers.
- Base Type: U-Channel clamp base design to be attached to a aviation glare lip.
- Common Applications:
- Aviation Mounts: Temporary attaching to glare shield mount .
|
