Product Detail & Documentation (all files in PDF format)
Manufacturer
RAM Mount
Category
GPS Mounts
Model
RAM-B-138-GA7U
SKU
RAMB138GA7
Weight
0.640 lbs.
Share this item:
Need Assistance? We're here to help. (That's the GPS City Difference!)
For quick help selecting the right GPS unit, try our
GPS Selector Tool,
check specifications, or
compare GPS units. If you have a specific question about an
item, try entering your question using the
Q&A (Questions & Answers) section above - we usually respond on the same or next day. During our office hours 9AM - 6PM MDT, Mon-Fri, you can contact us using
, or reach us by phone at 1-866-GPS-CITY.
What's Included With The RAM Mount Garmin x76 x78 x98 Screw Down Plate Mount? The RAM Mount Garmin x76 x78 x98 Screw Down Plate Mount ships with the following items included:

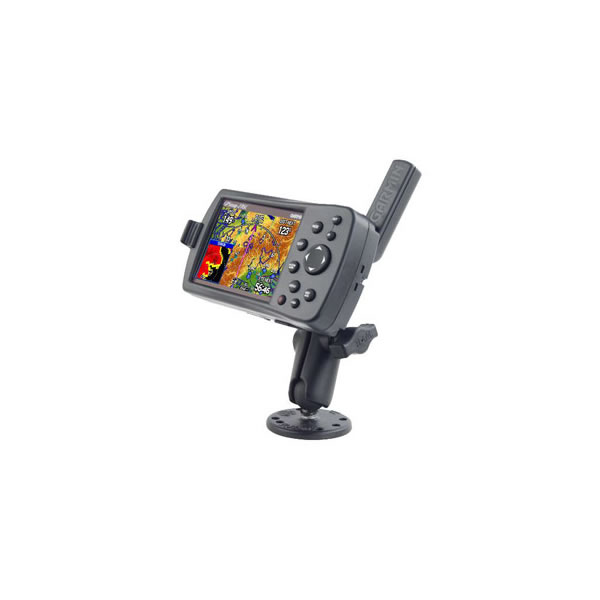

RAM Mount Garmin x76 x78 x98 Screw Down Plate Mount Description The RAM Marine Grade Aluminum Dash Mount consists of the 1'' dia. ball and socket system with RAM Plastic Cradle for the Garmin GPSMAP x76, x78 and x96 Series, including the Garmin GPSMAP 176, 176C, 196, 276C, 296, 376C, 378C and 478C.
Mount Base Design:
The RAM-B-202 RAM Mount Marine Grade Aluminum Screw Down Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 2.5 inch diameter Plate. The plate has pre-drilled holes in the base plate, including the universal AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
Mount Base Mounting Solutions:
Mounting hardware is NOT included with the purchase of the RAM-B-202. A semi-permanent solution for mounting this base is by using the RAM double sided adhesive disk (RAM-202PSA). The disk will hold the RAM-B-202 base in many different locations without screws.

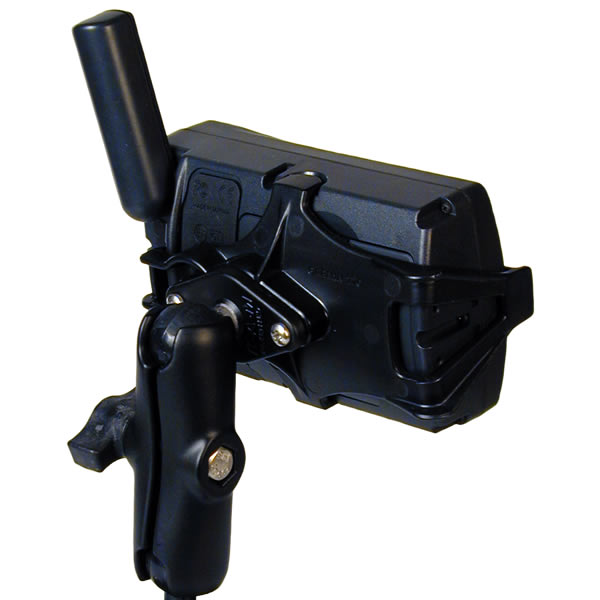

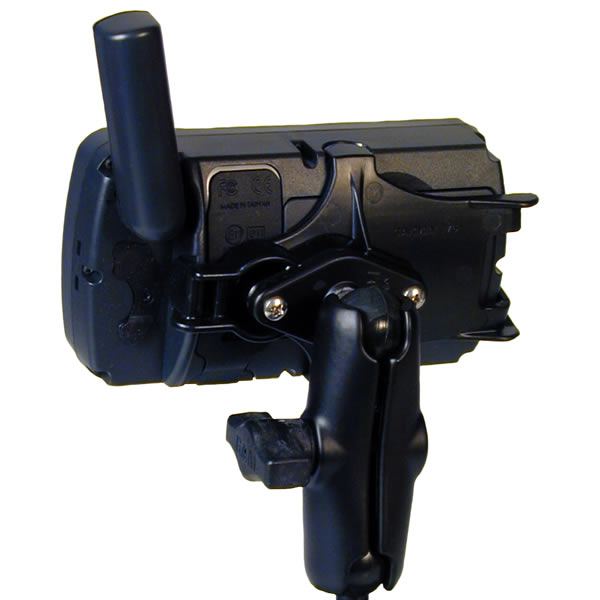

Mount Arm Design: The RAM Mount Dual Socket Arm (RAM-B-201) is a B Size 1 inch Ball Dual Socket Arm, made of Marine Grade Aluminum. The arm is 3 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends.
Mount Cradle Design:

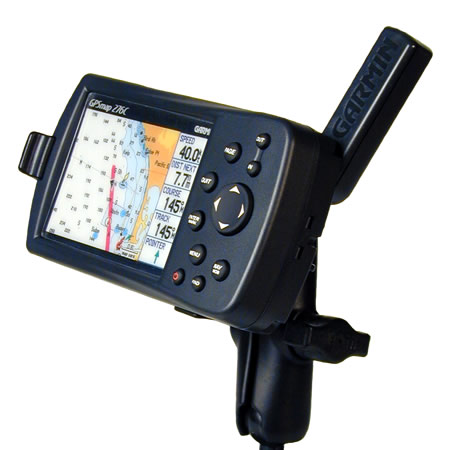

The RAM-HOL-GA7 High Strength Plastic Cradle is designed to hold the Garmin GPSMAP x76, x78 and Aviation x96 Series of GPS which includes, and is not limited to, the following GPS units,
Garmin GPSMAP 176
Garmin GPSMAP 176C
Garmin GPSMAP 276C
Garmin GPSMAP 376C
Garmin GPSMAP 378
Garmin GPSMAP 478
Garmin GPSMAP 196 (Aviation GPS)
Garmin GPSMAP 296 (Aviation GPS)
Garmin GPSMAP 396 (Aviation GPS)
Garmin GPSMAP 496 (Aviation GPS)
All cables can stay connected to the unit while in the RAM cradle.
