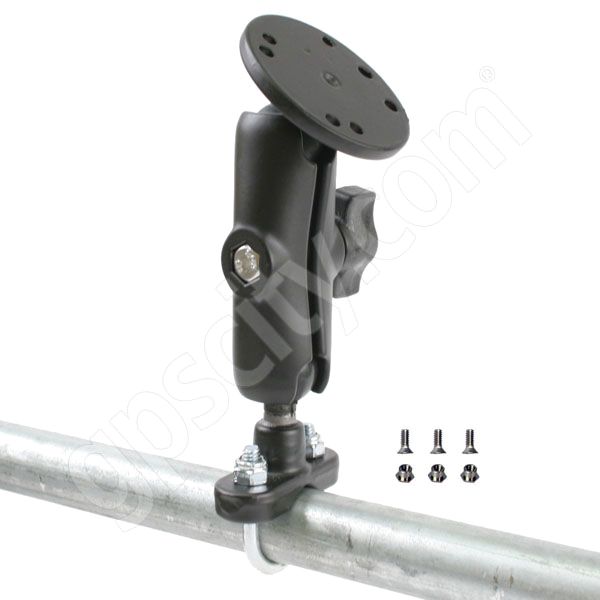

The RAM-B-149Z-G2 RAM Mount Marine Grade Aluminum Mount with Zinc Coated U-Bolt Rail Base consists of the 1 inch diameter ball and socket system with a RAM Round 2.5 inch diameter Plate End and Garmin three hole cradle hardware. This mount is designed to be connected to the Garmin Marine GPS units with a three hole patten on the base of the swivel mount.
BASE DESIGN:
 The RAM-B-231Z RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated metal U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
Note: If you are looking to use this mount in the elements, we suggest the RAM-B-231 Stainless Steel U-Bolt Mount.
Mount Arm Design:
 The RAM Mount Dual Socket Arm (RAM-B-201) is a B Size 1 inch Ball Dual Socket Arm, made of Marine Grade Aluminum. The arm is 3 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends.
CRADLE DESIGN:
The RAM Aluminum 2.5 inch diameter Round Plate has an three hole pattern which will connect to the base of the Garmin Marine GPS unit swivel mounts. In most cases the Garmin Marine Swivel Mount is included with the purhcase of the GPS unit. Some of the Garmin Marine GPS that will connect to this mounting plate include:
Marine Season 2007
- Garmin GPSMAP 420 Marine GPS
- Garmin GPSMAP 430 Marine GPS
- Garmin GPSMAP 440 Marine GPS
- Garmin GPSMAP 450 Marine GPS
- Garmin GPSMAP 520 Marine GPS
- Garmin GPSMAP 525 Marine GPS
- Garmin GPSMAP 530 Marine GPS
- Garmin GPSMAP 535 Marine GPS
- Garmin GPSMAP 540 Marine GPS
- Garmin GPSMAP 545 Marine GPS
- Garmin GPSMAP 550 Marine GPS
- Garmin GPSMAP 555 Marine GPS
Marine Season 2006
- Garmin GPSMAP 292 Marine GPS
- Garmin GPSMAP 298 Marine GPS
- Garmin GPSMAP 392 Marine GPS
- Garmin GPSMAP 398 Marine GPS
- Garmin GPSMAP 492 Marine GPS
- Garmin GPSMAP 498 Marine GPS
- Garmin Fishfinder 340C
- Garmin Fishfinder 160C
- Garmin Fishfinder 140
- Garmin Fishfinder 90
NOTE: The Garmin cradles listed are included with the purchase of each GPS unit, or can purchased separately.
Connection Hardware Included: The plate includes a set of three sets of nuts and bolts (RAM-S-G1) to connect the plate to your required cradle.
|
