RAM Mount Garmin Swivel Steel U-Bolt Mount RAM-B-149-G2U Product Detail
Category: RAM Mount RAM Mounts
Manufacturer: RAM Mount
Model No: RAM-B-149-G2U
SKU: RAMB149G2
Weight: 0.619 lbs
Share this item:
Need Assistance? We're here to help. (That's the GPS City Difference!)
For quick help selecting the right GPS unit, try our
GPS Selector Tool,
check specifications, or
compare GPS units. If you have a specific question about an
item, try entering your question using the
Questions & Answers section above - we usually respond on the same or next day. During our office hours 9AM - 6PM MDT, Mon-Fri, you can contact us using
, or reach us by phone at 1-866-GPS-CITY.
What's Included With The RAM Mount Garmin Swivel Steel U-Bolt Mount RAM-B-149-G2U? The RAM Mount Garmin Swivel Steel U-Bolt Mount RAM-B-149-G2U ships with the following items included:

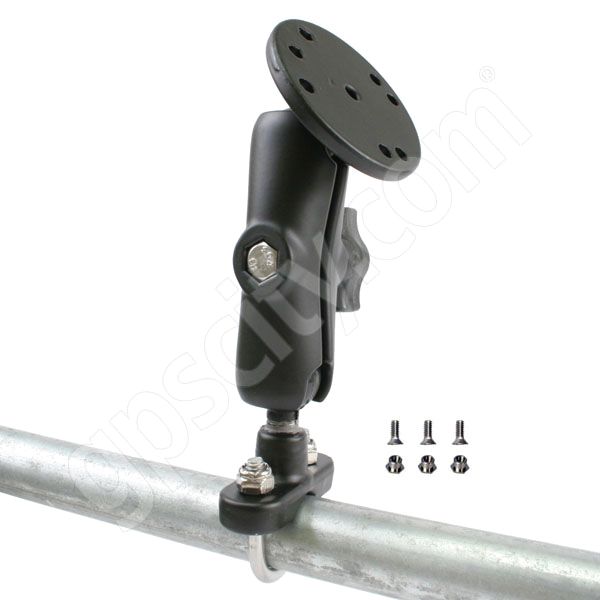

RAM Mount Garmin Swivel Steel U-Bolt Mount RAM-B-149-G2U Description The RAM-B-149-G2 RAM Mount Marine Grade Aluminum Mount with Stainless Steel U-Bolt Rail Base consists of the 1 inch diameter ball and socket system with a RAM Round 2.5 inch diameter Plate End and Garmin three hole cradle hardware. This mount is designed to be connected to the Garmin Marine GPS units with a three hole patten on the base of the swivel mount.
BASE DESIGN:
The RAM-B-231 RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Stainless Steel U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
Mount Arm Design: The RAM Mount Dual Socket Arm (RAM-B-201) is a B Size 1 inch Ball Dual Socket Arm, made of Marine Grade Aluminum. The arm is 3 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends.
CRADLE DESIGN:
The RAM Aluminum 2.5 inch diameter Round Plate has an three hole pattern which will connect to the base of the Garmin Marine GPS unit swivel mounts. In most cases the Garmin Marine Swivel Mount is included with the purhcase of the GPS unit. Some of the Garmin Marine GPS that will connect to this mounting plate include: Marine Season 2007
Garmin GPSMAP 420 Marine GPS
Garmin GPSMAP 430 Marine GPS
Garmin GPSMAP 440 Marine GPS
Garmin GPSMAP 450 Marine GPS
Garmin GPSMAP 520 Marine GPS
Garmin GPSMAP 525 Marine GPS
Garmin GPSMAP 530 Marine GPS
Garmin GPSMAP 535 Marine GPS
Garmin GPSMAP 540 Marine GPS
Garmin GPSMAP 545 Marine GPS
Garmin GPSMAP 550 Marine GPS
Garmin GPSMAP 555 Marine GPS
Marine Season 2006
Garmin GPSMAP 292 Marine GPS
Garmin GPSMAP 298 Marine GPS
Garmin GPSMAP 392 Marine GPS
Garmin GPSMAP 398 Marine GPS
Garmin GPSMAP 492 Marine GPS
Garmin GPSMAP 498 Marine GPS
Garmin Fishfinder 340C
Garmin Fishfinder 160C
Garmin Fishfinder 140
Garmin Fishfinder 90
NOTE: The Garmin cradles listed are included with the purchase of each GPS unit, or can purchased separately.
