RAM Mount Garmin Swivel Motorcycle Mount Kit RAM-B-174-G2U Product Detail
Category: RAM Mount RAM Mounts
Manufacturer: RAM Mount
Model No: RAM-B-174-G2U
SKU: RAMB174G2
Weight: 0.813 lbs
Share this item:
Need Assistance? We're here to help. (That's the GPS City Difference!)
For quick help selecting the right GPS unit, try our
GPS Selector Tool,
check specifications, or
compare GPS units. If you have a specific question about an
item, try entering your question using the
Questions & Answers section above - we usually respond on the same or next day. During our office hours 9AM - 6PM MDT, Mon-Fri, you can contact us using
, or reach us by phone at 1-866-GPS-CITY.
What's Included With The RAM Mount Garmin Swivel Motorcycle Mount Kit RAM-B-174-G2U? The RAM Mount Garmin Swivel Motorcycle Mount Kit RAM-B-174-G2U ships with the following items included:

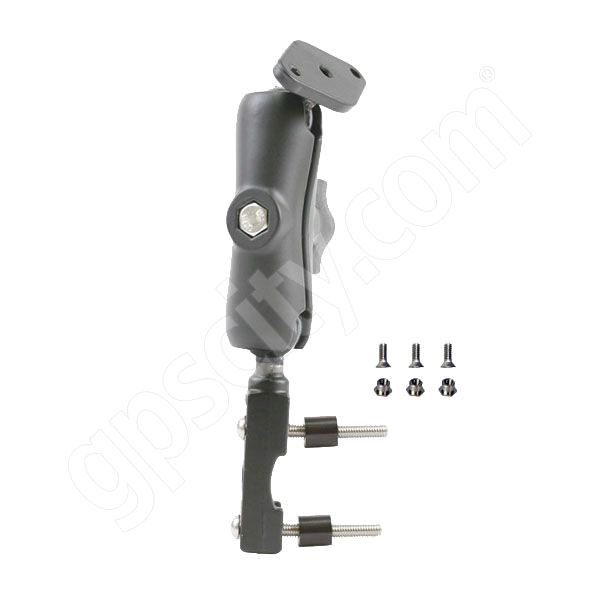

RAM Mount Garmin Swivel Motorcycle Mount Kit RAM-B-174-G2U Description The RAM-B-174-G2 RAM Mount Marine Grade Aluminum Motorcycle Brake/Clutch Base Mount consists of the 1 inch diameter ball and socket system with a RAM Round 2.5 inch diameter Plate End and Garmin Marine Cradle Three Hole hardware.
This mount is designed to be connected to the three hole pattern on the bottom of the cradles included with the purchase of the Garmin Marine GPS units with a swivel mount.
Mount Cradle Design:
The RAM Aluminum 2.5 inch diameter Round Plate has an three hole pattern which will connect to the base of the Garmin Marine GPS unit swivel mounts. In most cases the Garmin Marine Swivel Mount is included with the purhcase of the GPS unit. Some of the Garmin Marine GPS that will connect to this mounting plate include: Marine Season 2007
Garmin GPSMAP 420 Marine GPS
Garmin GPSMAP 430 Marine GPS
Garmin GPSMAP 440 Marine GPS
Garmin GPSMAP 450 Marine GPS
Garmin GPSMAP 520 Marine GPS
Garmin GPSMAP 525 Marine GPS
Garmin GPSMAP 530 Marine GPS
Garmin GPSMAP 535 Marine GPS
Garmin GPSMAP 540 Marine GPS
Garmin GPSMAP 545 Marine GPS
Garmin GPSMAP 550 Marine GPS
Garmin GPSMAP 555 Marine GPS
Marine Season 2006
Garmin GPSMAP 292 Marine GPS
Garmin GPSMAP 298 Marine GPS
Garmin GPSMAP 392 Marine GPS
Garmin GPSMAP 398 Marine GPS
Garmin GPSMAP 492 Marine GPS
Garmin GPSMAP 498 Marine GPS
Garmin Fishfinder 340C
Garmin Fishfinder 160C
Garmin Fishfinder 140
Garmin Fishfinder 90
NOTE: The Garmin cradles listed are included with the purchase of each GPS unit, or can purchased separately.
Mount Arm Design: The RAM Mount Dual Socket Arm (RAM-B-201) is a B Size 1 inch Ball Dual Socket Arm, made of Marine Grade Aluminum. The arm is 3 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends.
Mount Base Design:
The RAM-B-309-1 RAM Mount Powder Coated Marine Grade Aluminum Clutch/Brake Motorcycle Mount Base includes a 1 inch diameter Rubber Ball and a hexagonal opening for the connection of an optional secondary RAM-B-309-3 Rubber 1 inch diameter ball. Included with this base is both standard and metric mounting bolts.
The base connects to the left or right side of your handlebar clutch/brake reservoir on the Honda Goldwing and other select Motorcycles. To see if this base will work with your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94 inches and a maximum of 1.58 inches and can be viewed in the design drawing below.
RAM E-Drawings and In Use Pictures:
To understand more about the RAM-B-309-1 Motorcycle Mount Base hole spacing and ball layout and location, check out the design drawing below. The second image shows the RAM-B-309-1 in use and how the base mounts to the clutch/brake reservoir.
