| List Price: |
$39.10CDN |
| Our Price: |
$30.95CDN (and this item ships for $4.99. Learn more.) |
| You Save: |
$8.15CDN (21%) |
Availability: |
In Stock.
Ships from Calgary today, February 10. |
|
| |
| Model: |
RAM Mount Garmin nuvi 2xx Zinc Coated U-Bolt Mount |
| Part No: |
RAM-B-149Z-GA24U (also RAM-B-149Z-GA24) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
| Learn More with our Instructional Videos (More GPS City videos.
Visit our Youtube channel.) |
RAM Garmin nuvi 200 Cradle: In Use (RAM-HOL-GA24)
(3,491 views) |
RAM Garmin nuvi 200 Cradle: USB Cable (RAM-HOL-GA24)
(1,925 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(20,242 views) |
RAM AMPS Hole Pattern: Explained
(6,568 views) |
RAM Mount Plate: Overview (RAM-B-347)
(3,896 views) |
|
| What's Included In The Box? |
The RAM Mount Garmin nuvi 2xx Zinc Coated U-Bolt Mount ships with the following items included: |
| Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-149Z-GA24U |
SKU: |
RAMB149ZGA24 |
UPC: |
793442912276 |
| Announced: |
January 17, 2008 |
First Shipped: |
January 17, 2008 |
Weight: |
0.737 lbs. |
| RAM Mount Garmin nuvi 2xx Zinc Coated U-Bolt Mount Description |

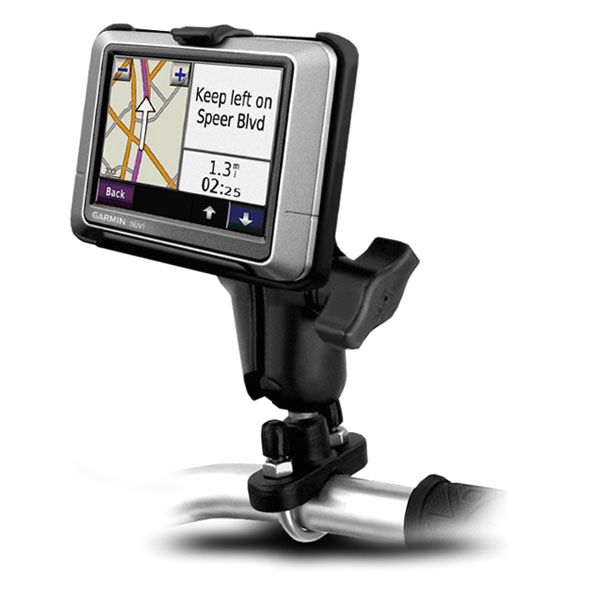

The RAM-B-149Z-GA24 Garmin nuvi 200 Series Motorcycle RAM Mount is a Marine Grade Aluminum Mount with a Zinc Coated U-Bolt Rail Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Garmin nuvi 200 Series mount to your optimum viewing position.
Garmin GPS Mount Options:
To help ensure you have the Garmin nuvi 200, nuvi 205 and nuvi 205T Series Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-GA24 Series of Garmin nuvi 2xx, nuvi 2x5 and nuvi 2x5T Cradles and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA24 Garmin nuvi 2xx, nuvi 2x5 and nuvi 2x5T Series Cradle.
Garmin GPS Mount Cradle Design:
The RAM-HOL-GA24 RAM Mount High Strength Plastic Cradle is designed to hold the Garmin nuvi 2xx Series, including the following GPS units,
- Garmin nuvi 200
- Garmin nuvi 205
- Garmin nuvi 250
- Garmin nuvi 255
- Garmin nuvi 260
- Garmin nuvi 265T
- Garmin nuvi 270
- Garmin nuvi 275
- Garmin nuvi 275T
All cables can stay connected to the unit while in the RAM cradle.
The Garmin nuvi 2xxW and nuvi 2x5W Series, including the nuvi 205W, nuvi 255W, 200W, nuvi 250W and nuvi 260W WILL NOT fit this cradle. These units require the RAM-HOL-GA25 RAM Mount Cradle for the Garmin nuvi 2xxW and nuvi 2x5W Series.
Garmin GPS Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Garmin GPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Garmin GPS Mount Base Design:
 The RAM-B-231Z RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated metal U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
Note: If you are looking to use this mount in the elements, we suggest the RAM-B-231 Stainless Steel U-Bolt Mount.
|
| RAM Mount Garmin nuvi 2xx Zinc Coated U-Bolt Mount Features & Tips |
Here is a listing we have put together of some of the common Garmin nuvi 2xx Zinc Coated U-Bolt Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for Garmin nuvi 200 Series.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3.0 inches between socket centers.
- Base Type: Motorcycle Handlebar Base or Universal Round Pipe Base with Zinc Coated U-Bolt. (0.75 to 1 inch wide)
- Common Applications:
- Motorcycle and ATV Mounts: Attaching to handlebars.
- Hiking Mounts: Attaching to hiking staffs.
- General Mounts: Attaching to available pipes or poles.
|
