See more RAM Mount items. |
| |
| List Price: |
$38.26CDN |
| Our Price: |
$28.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$9.31CDN (24%) |
Availability: |
In Stock.
Ships from Calgary today, May 25. |
|
| |
| Model: |
RAM Mount Garmin nuvi 2300 Series Swivel Mount RAM-B-138-GA44U |
| Part No: |
RAM-B-138-GA44U (also RAM-B-138-GA44) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,593 views) |
RAM AMPS Hole Pattern: Explained
(8,012 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,883 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,919 views) |
RAM Rectangular Plate: Comparison Overview
(2,133 views) |
|
What's Included In The Box? |
The RAM Mount Garmin nuvi 2300 Series Swivel Mount RAM-B-138-GA44U ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-138-GA44U |
SKU: |
RAMB138GA44 |
UPC: |
|
| Announced: |
June 6, 2011 |
First Shipped: |
November 10, 2011 |
Weight: |
0.660 lbs. |
Manufacturer Description |

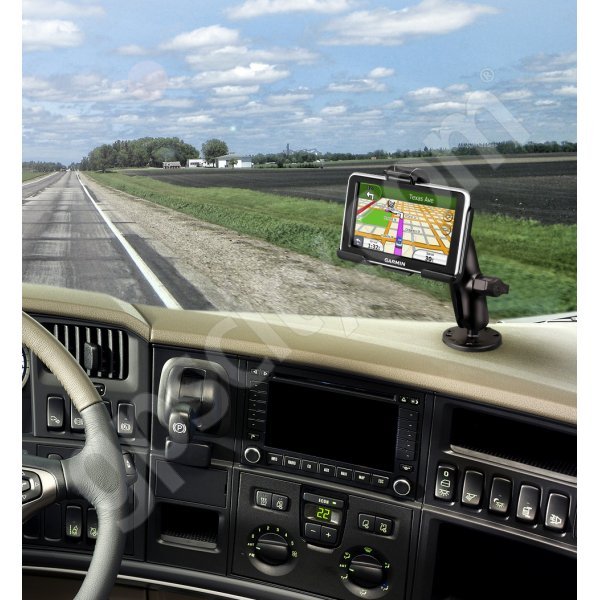

The RAM-B-138-GA44 Garmin nuvi 2300 Series RAM Mount is a Marine Grade Aluminum Mount with a Flat Surface Screw Down Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Garmin nuvi 2300 Series mount to your optimum viewing position.
Garmin GPS Mount Options:
Garmin GPS Mount Cradle Design:
Garmin GPS Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Garmin GPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Garmin GPS Mount Base Design:
 The RAM-B-202 RAM Mount Marine Grade Aluminum Screw Down Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 2.5 inch diameter Plate. The plate has pre-drilled holes in the base plate, including the universal AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
Mount Base Mounting Solutions:Mounting hardware is NOT included with the purchase of the RAM-B-202. A semi-permanent solution for mounting this base is by using the RAM double sided adhesive disk (RAM-202PSA). The disk will hold the RAM-B-202 base in many different locations without screws.
|
Features & Tips |
Here is a listing we have put together of some of the common Garmin nuvi 2300 Series Swivel Mount RAM-B-138-GA44U features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for Garmin nuvi 2300 2350 2360 2370.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Round 2.5 inch diameter plate design to be bolted to a flat surface.
- Common Applications:
- Vehicle Mounts: Attaching to vehicle dash or console with hardware or PSA Adhesive.
- Motorcycle Mounts: Attaching to small ledge or flat surface on motorcycle console.
|
