See more RAM Mount items. |
| |
| List Price: |
$131.82CDN |
| Our Price: |
$100.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$30.87CDN (23%) |
Availability: |
In Stock.
Ships from Calgary today, May 25. |
|
| |
| Model: |
RAM Mount Garmin GPSMAP x76 x78 x96 Series Cessna Rail Post Mount |
| Part No: |
RAM-B-131-GA7 |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Garmin GPSMAP Cradle: In Use (RAM-HOL-GA7U)
(2,042 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,593 views) |
RAM AMPS Hole Pattern: Explained
(8,012 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,883 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,919 views) |
|
What's Included In The Box? |
The RAM Mount Garmin GPSMAP x76 x78 x96 Series Cessna Rail Post Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-131-GA7 |
SKU: |
RAMB131GA7 |
UPC: |
793442909078 |
| Announced: |
March 1, 2008 |
First Shipped: |
March 1, 2008 |
Weight: |
1.339 lbs. |
Manufacturer Description |

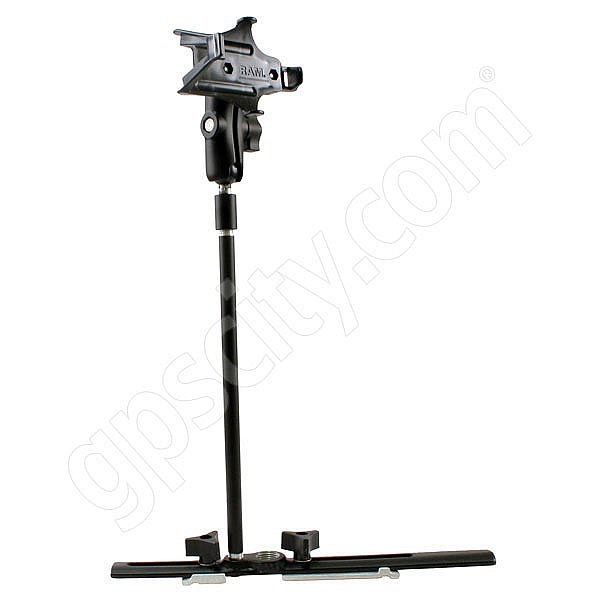

The RAM-B-131-GA7 Garmin GPSMAP x76 x78 x96 Series Cessna Seat Rail Aviation Mount is a Marine Grade Aluminum Mount with a RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter RAM ball and socket system on a 12 inch long aluminum rigid pipe. With a twist of the arm knob, you can move the top of Garmin GPSMAP x76 x78 x96, including the Aviation GPSMAP 196, 296, 396, 496 Series, mount to your optimum viewing position.
Note: This mount does not require any drilling for installation.
Garmin GPS Mount Options:
To help ensure you have the correct Garmin GPSMAP x76, x78 and x96 Series Mount for your needs, take a look at the list of available RAM Garmin x76, x78 and x96 mounts on the Garmin GPSMAP x76, x78 and x96 Series Mount Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts, aviation GPS mounts and more bundled with the RAM-HOL-GA7 Garmin GPSMAP x76, x78 and x96 Series Cradle.
Garmin GPS Mount Cradle Design:
The RAM-HOL-GA7 High Strength Plastic Cradle is designed to hold the Garmin GPSMAP x76, x78 and Aviation x96 Series of GPS which includes, and is not limited to, the following GPS units,
- Garmin GPSMAP 176
- Garmin GPSMAP 176C
- Garmin GPSMAP 276C
- Garmin GPSMAP 376C
- Garmin GPSMAP 378
- Garmin GPSMAP 478
- Garmin GPSMAP 196 (Aviation GPS)
- Garmin GPSMAP 296 (Aviation GPS)
- Garmin GPSMAP 396 (Aviation GPS)
- Garmin GPSMAP 496 (Aviation GPS)
All cables can stay connected to the unit while in the RAM cradle.
Garmin GPS Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Garmin GPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Garmin GPS Mount Pipe Design:The RAM-PA5412 RAM Mount Rigid Aluminum Post consists of a 12 inch long pipe with 0.25 inch NPT threaded ends. One end screws into the mount base, and the other to a RAM 1.0 inch ball on 0.25 inch NPT female post.
Garmin GPS Mount Base Design:The RAM-B-131B RAM Mount Cessna Aircraft Seat Rail Base is a thin rail to mount either a 0.5 or 0.25 inch NPT threaded pipe. The base includes two rail connecting bolts to mount to the exiting seat rails in the aircraft.
|
Features & Tips |
Here is a listing we have put together of some of the common Garmin GPSMAP x76 x78 x96 Series Cessna Rail Post Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for Garmin Aviation GPSMAP x76 x78 x96 Series.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3.0 inches between socket centers.
- Post Length: 12 inch Aluminum Pipe.
- Base Type: Cessna Seat Rail Aviation Mount to be bolted into existing railing (no drill required).
- Common Applications:
- Aviation Mounts: Attaching to seat rail bolts on a Cessna Plane.
|
