RAM Mount Garmin GPSMAP 276 296 Yoke Mount RAM-B-121-GA7U Product Detail
Category: RAM Mount RAM Mounts
Manufacturer: RAM Mount
Model No: RAM-B-121-GA7U
SKU: RAMB121GA7
Weight: 0.890 lbs
Share this item:
Need Assistance? We're here to help. (That's the GPS City Difference!)
For quick help selecting the right GPS unit, try our
GPS Selector Tool,
check specifications, or
compare GPS units. If you have a specific question about an
item, try entering your question using the
Questions & Answers section above - we usually respond on the same or next day. During our office hours 9AM - 6PM MDT, Mon-Fri, you can contact us using
, or reach us by phone at 1-866-GPS-CITY.
What's Included With The RAM Mount Garmin GPSMAP 276 296 Yoke Mount RAM-B-121-GA7U? The RAM Mount Garmin GPSMAP 276 296 Yoke Mount RAM-B-121-GA7U ships with the following items included:

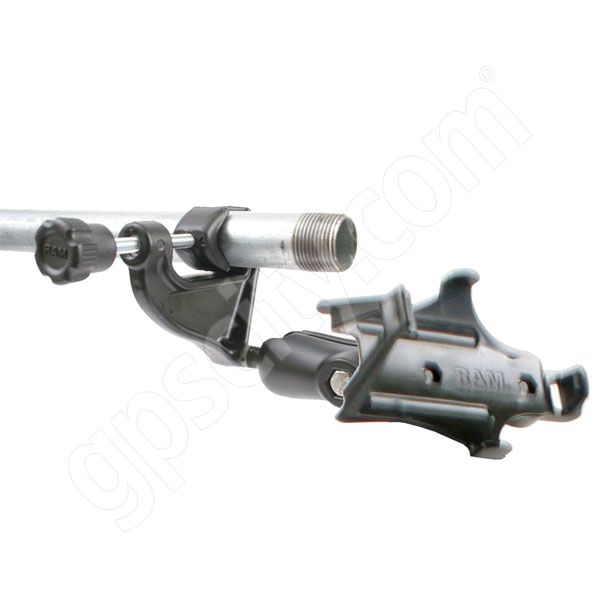

RAM Mount Garmin GPSMAP 276 296 Yoke Mount RAM-B-121-GA7U Description The RAM Marine Grade Aluminum Yoke Mount consists of the 1'' dia. ball and socket system with RAM Plastic Cradle for the Garmin GPSMAP 176, 176C, 196, 276C and 296.
BASE DESIGN:
The RAM-B-121B RAM Mount Powder Coated Marine Grade Aluminum Yoke Clamp Mount Base fits a rail diameter from 5/8 inch to a maximum of 1 1/4 inches. The 1 inch rubber ball is at a right angle to the plane of the mount so when connected to a rail, the ball sits parallel to the rail. To mount the base, simply place the yoke clamps around the rail and then screw the large knob at the end of the threaded rod. The hand tightened clamp makes this the perfect mounting system for rental planes and unusual shaped motorbike rails.
NOTE: The rail does not need to be perfectly round to mount this base.
ARM DESIGN: The Powder Coated Marine Grade Aluminum Standard Length Double Socket Arm is 3.0'' long when measured between socket centers.
CRADLE DESIGN:
The RAM-HOL-GA7 High Strength Plastic Cradle is designed to hold the Garmin GPSMAP x76, x78 and Aviation x96 Series of GPS which includes, and is not limited to, the following GPS units,
Garmin GPSMAP 176
Garmin GPSMAP 176C
Garmin GPSMAP 276C
Garmin GPSMAP 376C
Garmin GPSMAP 378
Garmin GPSMAP 478
Garmin GPSMAP 196 (Aviation GPS)
Garmin GPSMAP 296 (Aviation GPS)
Garmin GPSMAP 396 (Aviation GPS)
Garmin GPSMAP 496 (Aviation GPS)
All cables can stay connected to the unit while in the RAM cradle.
