| Model: |
RAM Mount Garmin G-Ball Vehicle Floor Mount |
| Part No: |
RAM-B-316-1-GA22U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Garmin G-Ball Plate: In Use (RAM-HOL-GA22U)
(2,155 views) |
RAM Garmin G-Ball Plate: Overview (RAM-HOL-GA22U)
(820 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,579 views) |
RAM AMPS Hole Pattern: Explained
(7,998 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,878 views) |
|
What's Included In The Box? |
The RAM Mount Garmin G-Ball Vehicle Floor Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-316-1-GA22U |
SKU: |
RAMB316-1GA22 |
UPC: |
|
| Announced: |
January 1, 2007 |
First Shipped: |
January 1, 2007 |
Weight: |
1.144 lbs. |
Manufacturer Description |

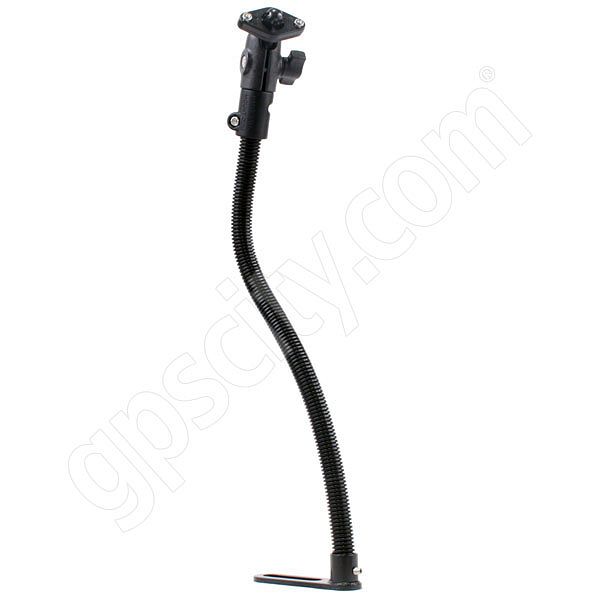

The RAM-B-316-1-GA22 RAM-POD-I Vehicle Floor Mount consists of a RAM 1 inch diameter RAM ball and socket system on a 18 inch long Aluminum Rigid Flexible Rod with a RAM Plastic G-Ball Cradle for the Garmin StreetPilot i-Series, including the StreetPilot i2, i3 and i5, along with any other Garmin GPS with the G-Ball Socket.
Garmin GPS Mount Cradle Design:
The RAM-HOL-GA22 RAM Mount high strength plastic cradle holder is designed to hold the Garmin StreetPilot i-series and Garmin Ball, including the following GPS units,
- Garmin StreetPilot i-Series GPS, including the Garmin StreetPilot i2, Garmin StreetPilot i3 and Garmin StreetPilot i5
- Garmin StreetPilot c5xx Series GPS, including the Garmin StreetPilot c530, Garmin StreetPilot c550, Garmin StreetPilot c580 and Garmin StreetPilot c510 (European Version)
- Garmin units with the small round socket on the Garmin cradle
All cables and the Garmin cradle can stay connected to the unit while in the RAM cradle.
Garmin GPS Mount Arm Design: The RAP-B-200-1 RAM Mount High Strength Plastic Single Socket Short Arm has a B Size 1 inch Ball Socket at one end, and a Female Octagon button connection at the other. The Octagon Button end will mount on the end of the Aluminum Flex Rod, allowing the 1 inch socket to hold your device cradle or plate. The side of the arm includes a tightening knob which allows you to open and close the socket end.
Garmin GPS Mount Base Design: The RAM-316-1A RAM Mount Rigid Arm Base consists of a RAM octagon at the end of a 18 inch rigid flex arm with seat rail base. The RAM-POD-I mounting foot plate base is designed to connect to a vehicle seat rail bolt in your Car, Truck, SUV, RV, Big Rig or bolted location. Connected at right angles to the mounting foot is an 18 inch long Aluminum Flexible Rod. This rod can hold light to medium weight items in your vehicle safely and securely. At the top of the rigid flex rod is a male RAM High Strength Plastic Octagon Button that will connect directly to a RAM Female Octagon Button Arm.
Movement of the Rigid 18 inch Flex Arm:It is important to note that the rigid 18 inch flex arm found on this mount is designed to hold an approximate weight of up to 4 lbs. With this in mind, the aluminum rod is more rigid than flexible. It is designed to be bent into position when being installed and then hold it's position. This means you cannot move the mount around once installed with just one hand.
|
