RAM Mount RAM-B-174-GA5U Garmin eTrex Series Mono on Aluminum Motorcycle Brake Mount

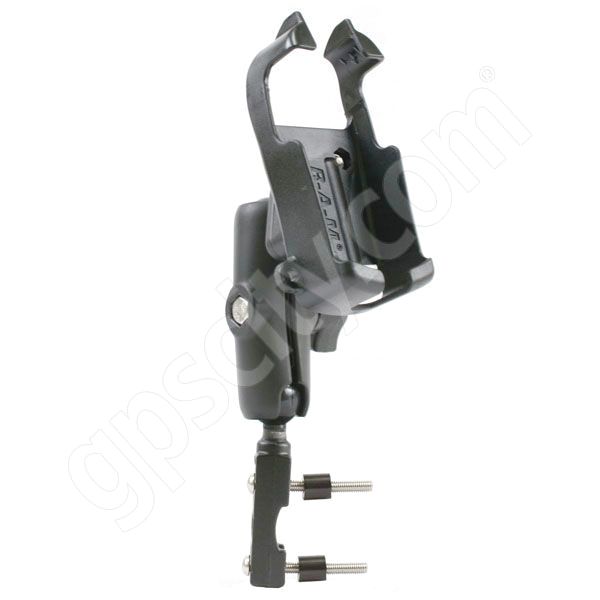

RAM Mount Garmin eTrex Series on Motorcycle Brake Mount
Additional Images

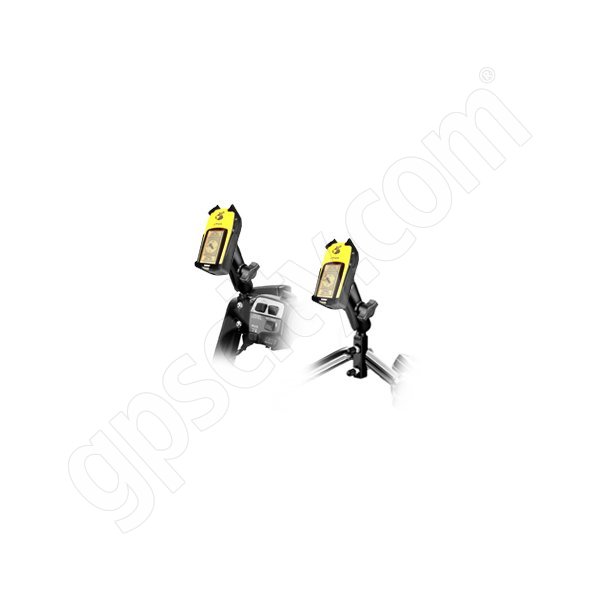

RAM Mount Garmin eTrex Series on Motorcycle Brake Mount #1
Customer Images
My Legend Mounted on My Motorcycle by Rob Valdez
Share your images and get a
free gpscity.ca t-shirt!
Customer Rating: (based on 5 reviews).    Email:  Email the RAM Mount Garmin eTrex Series on Motorcycle Brake Mount page     Print:  Print the RAM Mount Garmin eTrex Series on Motorcycle Brake Mount page
100% of our reviewers recommend this item. See more RAM Mount items.

List Price: $39.70CDN
Our Price: $31.95CDN   (Ships for $5.99. Restrictions apply.)
You Save: $7.75CDN (20%)

Availability:

In Stock.
Ships from Calgary today, May 25.


Qty:

Model: RAM Mount Garmin eTrex Series on Motorcycle Brake Mount
Part No: RAM-B-174-GA5U (also RAM-B-174-GA5)
Condition: Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses)
Price Match: Get an Instant Price Match in about 5 minutes (during business hours).

Learn More with our Instructional Videos

 » See our list of GPS City videos. Visit our Youtube channel.
RAM Garmin eTrex Cradle: In Use (RAM-HOL-GA5) Video
RAM Garmin eTrex Cradle: In Use (RAM-HOL-GA5)
(1,678 views)
RAM Diamond Plate: Overview (RAM-B-238U) Video
RAM Diamond Plate: Overview (RAM-B-238U)
(21,593 views)
RAM AMPS Hole Pattern: Explained Video
RAM AMPS Hole Pattern: Explained
(8,012 views)
RAM Mount Plate: Overview (RAM-B-347) Video
RAM Mount Plate: Overview (RAM-B-347)
(4,883 views)
RAM Medium Arm: Overview (RAM-B-201U) Video
RAM Medium Arm: Overview (RAM-B-201U)
(21,919 views)

RAM Mount Sub-Component Breakdown

Here are the sub-component parts that make up this item:

Garmin eTrex Series Cradle RAM-HOL-GA5U
+
Diamond Plate with 1 inch Ball RAM-B-238U
+
Medium Arm B-Socket RAM-B-201U
+
Motorcycle Mount Base Kit RAM-B-309-7U

What's Included In The Box?

The RAM Mount Garmin eTrex Series on Motorcycle Brake Mount ships with the following items included:


Product Information

Manufacturer: National Products, Inc Category: All Purpose Mounts Type: GPS Mounts
Model: RAM-B-174-GA5U SKU: RAMB174GA5 UPC: 793442910517
Announced: January 1, 2007 First Shipped: January 1, 2007 Weight: 0.883 lbs.

Manufacturer Description

The RAM-B-174-GA5 Garmin eTrex non-color Series Motorcycle RAM Mount is a Marine Grade Aluminum Mount with a Motorcycle Brake/Clutch Reservoir Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Garmin eTrex non-color mount to your optimum viewing position.

Note: For the eTrex Color Series, you will require the RAM Motorcycle Brake/Clutch Mount for the Garmin eTrex Color Series (RAM-B-174-GA16)

Garmin GPS Mount Options:


To help ensure you have the Garmin eTrex (non-color screen) Series Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-GA5 Series of Garmin eTrex (non-color screen) Cradles and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA5 Garmin eTrex (non-color screen) Series Cradle.

Garmin GPS Mount Cradle Design:


The RAM-HOL-GA5 RAM Mount High Strength Plastic Cradle is designed to hold the Garmin eTrex Series (non-color screen), including the following GPS units,
  • Garmin eTrex (Yellow)
  • Garmin eTrex H (Yellow)
  • Garmin eTrex Camo
  • Garmin eTrex Summit
  • Garmin eTrex Venture
  • Garmin eTrex Legend
  • Garmin eTrex Vista
All cables can stay connected to the unit while in the RAM cradle.

The Garmin eTrex Color Series WILL NOT fit this cradle. These units require the RAM-HOL-GA16 eTrex Color cradle and mounts.

Garmin GPS Mount Cradle Plate:


The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).

Garmin GPS Mount Arm Design:


The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).

Garmin GPS Mount Base Design:


The RAM-B-309-7 RAM Mount Motorcycle Kit Base can mount to either the clutch/ brake reservoir or directly to a round handle bar rail. The base is constructed of marine grade aluminum with an integrated 1 inch diameter rubber ball, hardware for rail mounting and both standard and metric mounting bolts for motorcycle reservoir mounting. The zinc coated metal u-bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 1/2 to 1.25 inches.

The base connects to the left or right side of your handlebar clutch/brake reservoir on the Honda Goldwing and other select motorcycles or you can connect directly to your handlebars with the u-bolt hardware. To see if this base will work with your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94 inches and a maximum of 1.58 inches.
