RAM Mount Garmin eMap Series on Motorcycle Brake Mount

Overview



Reviews



Videos



Specifications



Q&A


RAM Mount Garmin eMap Series on Motorcycle Brake Mount
Available Videos
Watch the Garmin eMap Cradle: In Use (RAM-HOL-GA4) Video Watch the Diamond Plate: Overview (RAM-B-238U) Video Watch the Medium Arm: Overview (RAM-B-201U) Video
Watch the Motorcycle Kit Reservoir: On Suzuki (RAM-B-309-7) Video Watch the Motorcycle Kit U-Bolt: On Suzuki (RAM-B-309-7) Video Watch the Motorcycle Base Kit: Overview (RAM-B-309-7) Video
Watch the Motorcycle Kit Mount: Overview (RAM-B-174U) Video

Not yet rated. Be the first to review this item.
See more RAM Mount products.     Email A Friend.      Print this page.


Our Price: $33.95 CAD

In Stock! Ships by 2PM MST today, February 9.

This item is Brand New with a Lifetime Warranty (excluding electronic or lense components).

Found a lower price? Please let us know!

RAM Mount Garmin eMap Series on Motorcycle Brake Mount Product Detail
  • Category: RAM Mount RAM Mounts
  • Manufacturer: RAM Mount
  • Model No: RAM-B-174-GA4U
  • SKU: RAMB174GA4
  • Weight: 0.741 lbs

Share this item:
Twitter  Digg  Facebook  MySpace  Google Bookmarks  del.icio.us  Fark  Technorati  reddit  StumbleUpon  Mixx  Furl  Yahoo! Bookmarks  Windows Live Favorites  Ask MyStuff  Slashdot  Propeller  Newsvine  myAOL Favorites


Need Assistance? We're here to help. (That's the GPS City Difference!)
For quick help selecting the right GPS unit, try our GPS Selector Tool, check specifications, or compare GPS units. If you have a specific question about an item, try entering your question using the Questions & Answers section above - we usually respond on the same or next day. During our office hours 9AM - 6PM MDT, Mon-Fri, you can contact us using
, or reach us by phone at 1-866-GPS-CITY.


What's Included With The RAM Mount Garmin eMap Series on Motorcycle Brake Mount?
The RAM Mount Garmin eMap Series on Motorcycle Brake Mount ships with the following items included:

RAM Mount Garmin eMap Series on Motorcycle Brake Mount Description

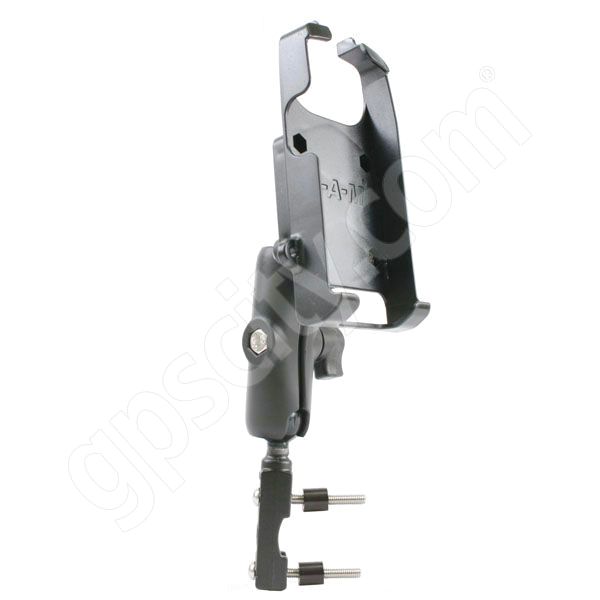

The RAM-B-174-GA4 Garmin eMap Motorcycle RAM Mount is a Marine Grade Aluminum Mount with a Motorcycle Brake/Clutch Reservoir Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Garmin eMap mount to your optimum viewing position.

Garmin GPS Mount Options:


To help ensure you have the Garmin eMap Series Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-GA4 Series of Garmin eMap Cradles and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA4 Garmin eMap Series Cradle.

Garmin GPS Mount Cradle Design:


The RAM-HOL-GA4 RAM Mount High Strength Plastic Cradle is designed to hold the Garmin eMap Series, including the following GPS units,
  • Garmin eMap
  • Garmin eMap Deluxe
All cables can stay connected to the unit while in the RAM cradle.

Garmin GPS Mount Cradle Plate:


The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).

Garmin GPS Mount Arm Design:


The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).

Garmin GPS Mount Base Design:


The RAM-B-309-1 RAM Mount Powder Coated Marine Grade Aluminum Clutch/Brake Motorcycle Mount Base includes a 1 inch diameter Rubber Ball and a hexagonal opening for the connection of an optional secondary RAM-B-309-3 Rubber 1 inch diameter ball. Included with this base is both standard and metric mounting bolts.

The base connects to the left or right side of your handlebar clutch/brake reservoir on the Honda Goldwing and other select Motorcycles. To see if this base will work with your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94 inches and a maximum of 1.58 inches and can be viewed in the design drawing below.

RAM E-Drawings and In Use Pictures:

To understand more about the RAM-B-309-1 Motorcycle Mount Base hole spacing and ball layout and location, check out the design drawing below. The second image shows the RAM-B-309-1 in use and how the base mounts to the clutch/brake reservoir.
RAM-B-309-1 e-drawing
RAM-B-309 Base e-drawing
RAM-B-309-1 in use connection
RAM-B-309 Base In Use


RAM Motorcycle Mount Installation:
