RAM Mount Garmin Colorado Series Stainless Steel U-Bolt Mount Product Detail
Category: RAM Mount RAM Mounts
Manufacturer: RAM Mount
Model No: RAM-B-149-GA27U
SKU: RAMB149GA27
Weight: 0.709 lbs
Share this item:
Need Assistance? We're here to help. (That's the GPS City Difference!)
For quick help selecting the right GPS unit, try our
GPS Selector Tool,
check specifications, or
compare GPS units. If you have a specific question about an
item, try entering your question using the
Questions & Answers section above - we usually respond on the same or next day. During our office hours 9AM - 6PM MDT, Mon-Fri, you can contact us using
, or reach us by phone at 1-866-GPS-CITY.
What's Included With The RAM Mount Garmin Colorado Series Stainless Steel U-Bolt Mount? The RAM Mount Garmin Colorado Series Stainless Steel U-Bolt Mount ships with the following items included:

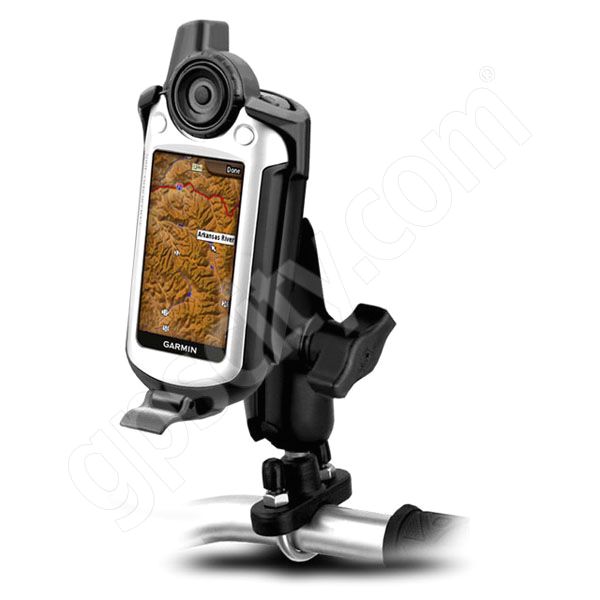

RAM Mount Garmin Colorado Series Stainless Steel U-Bolt Mount Description The RAM-B-149-GA27 Garmin Colorado Series Motorcycle RAM Mount is a Marine Grade Aluminum Mount with a Stainless Steel U-Bolt Rail Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Garmin Colorado Series mount to your optimum viewing position.
Garmin GPS Mount Options:
To help ensure you have the Garmin Colorado 300, 400c, 400i or Colorado 400t Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-GA27 Series of Garmin Colorado Cradles and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA27 Garmin Colorado Series Cradle.
Garmin GPS Mount Cradle Design:
The RAM-HOL-GA27 Garmin Colorado Series RAM Mount Cradle is a High Strength Plastic Composite Cradle designed specifically to hold the Garmin Colorado Series, including the following GPS units,
Garmin Colorado 300
Garmin Colorado 400t
Garmin Colorado 400i
Garmin Colorado 400c
All cables can stay connected to the unit while in the RAM cradle.
Garmin GPS Mount Cradle Plate:
The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Garmin GPS Mount Arm Design:
The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Garmin GPS Mount Base Design:
The RAM-B-231 RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Stainless Steel U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
