This item has been discontinued by the manufacturer.
Accessories may still
be available for this item. Click to view accessories.
|
| |
|
| What's Included In The Box? |
The RAM Mount Garmin Colorado Grip-Lock Suction Cup Non Skid Mount ships with the following items included: |
| Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAP-B-166NS-2-GA27 |
SKU: |
RAPB166NS-2GA27 |
UPC: |
|
| Announced: |
January 24, 2008 |
First Shipped: |
April 1, 2008 |
Weight: |
3.540 lbs. |
| RAM Mount Garmin Colorado Grip-Lock Suction Cup Non Skid Mount Description |

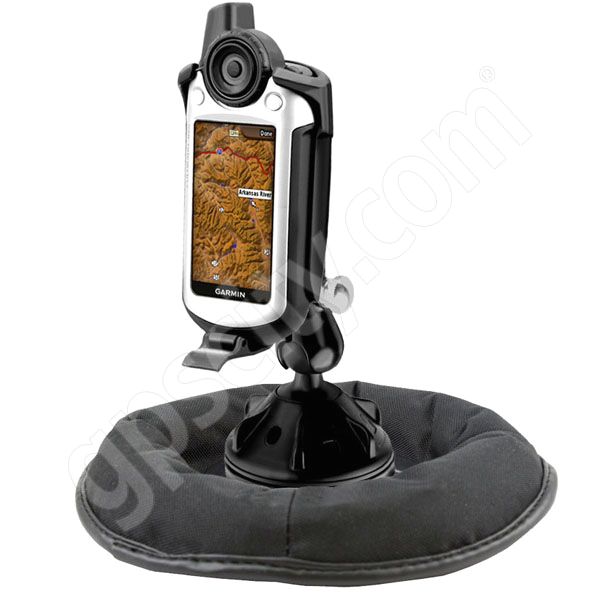

The RAP-B-166NS-2-GA27 Garmin Colorado Series Automotive RAM Mount is a High Strength Plastic Composite Mount with Locking Suction Base AND Weighted Non-Skid Sub-Base. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system, with Grip-Lock knob, that has adjustment point at the cradle and base. With a twist of the Grip-Lock arm knob, you can move the Garmin Colorado Series mount to your optimum viewing position.
Note: This mount does not require any drilling for installation.
Garmin GPS Mount Options:
To help ensure you have the Garmin Colorado 300, 400c, 400i or Colorado 400t Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-GA27 Series of Garmin Colorado Cradles and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA27 Garmin Colorado Series Cradle.
Garmin GPS Mount Cradle Design:
The RAM-HOL-GA27 Garmin Colorado Series RAM Mount Cradle is a High Strength Plastic Composite Cradle designed specifically to hold the Garmin Colorado Series, including the following GPS units,
- Garmin Colorado 300
- Garmin Colorado 400t
- Garmin Colorado 400i
- Garmin Colorado 400c
All cables can stay connected to the unit while in the RAM cradle.
Garmin GPS Mount Cradle Plate:The RAP-B-238 RAM Mount High Strength Plastic Composite Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file) (Note: the Plastic RAP-B-238 Plate is thicker than the RAM-B-238 Design Drawings shown).
Garmin GPS Mount Arm Design: The RAP-B-201-1 Twist Grip RAM Mount Dual Socket Arm is a 1 inch B size Ball Socket Arm made of High Strength Plastic. The arm is 2.0 inches long between socket centers. The side of the arm includes a round grooved tightening nut which allows you to open and close the socket ends.
Garmin GPS Mount Base Design: This unique mount design has two different mounting base solutions. You can either mount your device directly on your car dashboard using the Non-Skid Base, or attach the mount to you windshield, or any other non-porous surface.
- Non Skid Base: The Weighted Non Skid Friction Sub-Base Solution includes a plastic round plate giving you a non porous surface for attaching the included RAM Mount Suction Cup Base. The Non Skid base consists of a weighted core with a anti-skid underside. The Non Skid base contours to the top of your dashboard allowing it to work on uneven and textured sufaces. This base DOES NOT require any fastening to the mounting surface.
- Suction Cup Base: The RAM Mount Suction Cup Base Solution is designed to have an extra strong hold on any smooth non-porous surface. With a twist of the outside edge, the suction cup base adheres to any glass¹ or non-porous plastic surface. Built into the top of the Suction Cup is a 1 inch diameter Rubber Ball. This ball allows the suction cup to join to an open socket found on any of the RAM 1 inch diameter socket arms.
¹ Important legal note to California and Minnesota Drivers
|
| RAM Mount Garmin Colorado Grip-Lock Suction Cup Non Skid Mount Features & Tips |
Here is a listing we have put together of some of the common Garmin Colorado Grip-Lock Suction Cup Non Skid Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty on all pieces other than the Non Skid Base.
- Cradle Design: Custom Cradle for Garmin Colorado Series.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black High Strength Plastic Composite and Rubber Locking Suction Cup.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets and Grip-Lock Knob.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Weighted Non-Skid Friction Base for non-destructive mounting AND Locking Suction Cup for non-porous surfaces
- Common Applications:
- Vehicle Mounts: Attaching to vehicle windshield or placing on the vehicle dash
|
