What's Included In The Box? |
The RAM Mount Fujitsu LifeBook P1610 UMPC Cessna Seat Rail Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Tablet Mounts |
| Model: |
RAM-131-FUJ1 |
SKU: |
RAM131-FUJ1 |
UPC: |
793442907166 |
| Announced: |
February 29, 2008 |
First Shipped: |
February 29, 2008 |
Weight: |
2.410 lbs. |
Manufacturer Description |

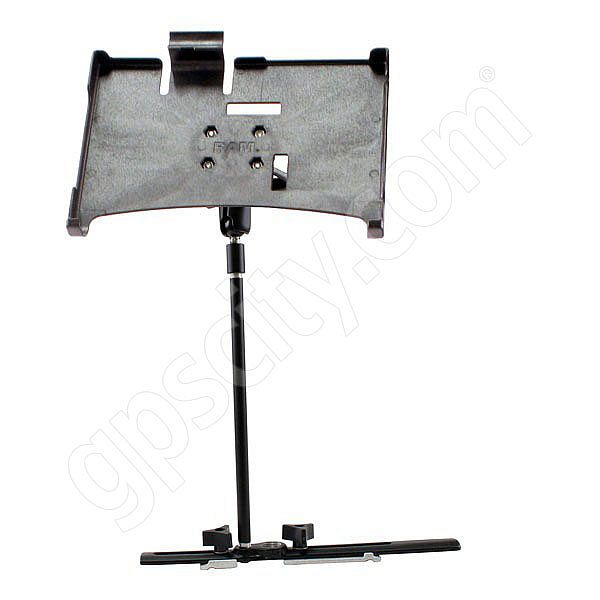

The RAM-131-FUJ1 Fujitsu LifeBook P1610 UMPC Cessna Seat Rail Aviation Mount is a Marine Grade Aluminum and Steel Mount with a RAM Custom Plastic Cradle. The mount is designed with a RAM 1.5 inch diameter RAM ball and socket system on a 12 inch long Steel Rigid Pipe. With a twist of the arm knob, you can move the top of Fujitsu LifeBook P1610 UMPC mount to your optimum viewing position.
Note: This mount does not require any drilling for installation.
Fujitsu UMPC Mount Cradle Design:
The RAM-HOL-FUJ1 Fujitsu LifeBook P1600 Series RAM Mount Cradle is a High Strength Plastic Composite Cradle designed specifically to hold the Fujitsu LifeBook P1600 Series, including the following tablets units,
- Fujitsu LifeBook P1610 Mobile Tablet PC
- Fujitsu LifeBook P1620 Mobile Tablet PC
All cables can stay connected to the unit while in the RAM cradle.
Fujitsu UMPC Mount Cradle Plate: The RAM-202 Marine Grade Aluminum Round Plate is designed to connected to the back of the mount cradle with a AMPS hole pattern. The round plate has a 1.5 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1.5 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.5 inch rubber ball location, take a closer look with the RAM-202 Design Drawings (pdf file).
Fujitsu UMPC Mount Arm Design:
 The RAM-201 RAM Mount Dual Socket Arm is a 1.5 inch C size Ball Socket Arm made of Marine Grade Aluminum. The arm is 4.63 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-201 arm, take a closer look with the RAM-201 Design Drawings (pdf file).
Fujitsu UMPC Mount Post Design:The RAM-PA8212 RAM Mount Rigid Aluminum Post consists of a 12 inch long pipe with 0.5 inch NPT threaded ends. One end screws into the mount base, and the other to a RAM 1.5 inch ball on 0.5 inch NPT female post.
Fujitsu UMPC Mount Base Design:The RAM-B-131B RAM Mount Cessna Aircraft Seat Rail Base is a thin rail to mount either a 0.5 or 0.25 inch NPT threaded pipe. The base includes two rail connecting bolts to mount to the exiting seat rails in the aircraft.
Fujitsu UMPC Mount Options:
 To help ensure you have the Fujitsu LifeBook P1600 Series Mobile Tablet PC Mount you require, take a look at the list of available RAM Fujitsu Tablet mounts on the RAM-HOL-FUJ1 Series of Fujitsu LifeBook P1610 Mobile Tablet PC Cradles and Mounts Page. Here you can select from suction cup Tablet mounts, flat surface screw down Tablet mounts, Tablet car mounts, non skid weighted Tablet mounts and more bundled with the RAM-HOL-FUJ1 Fujitsu LifeBook P1610 Mobile Tablet PC Series Cradle.
|
Features & Tips |
Here is a listing we have put together of some of the common Fujitsu LifeBook P1610 UMPC Cessna Seat Rail Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for Fujitsu LifeBook P1610 UMPC.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum Mount with Steel Pipe.
- Mount Ball Size: RAM 1.5 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1.5 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Single 1 inch Socket and Single Octagon Button Socket.
- Arm Length: Standard length of 4.63 inches between socket centers.
- Post Length: 12 inch Steel Pipe.
- Base Type: Cessna Aircraft Seat Rail Mount to be bolted into existing seat railing.
- Common Applications:
- Aviation Mounting: Attaching to existing seat rails on Cessna Aircraft.
|
