RAM Mount Four Hole AMPS Plate Stainless Steel U-Bolt Mount Product Detail
Category: RAM Mount RAM Mounts
Manufacturer: RAM Mount
Model No: RAM-B-149-G1U
SKU: RAMB149G1
Weight: 0.644 lbs
Share this item:
Need Assistance? We're here to help. (That's the GPS City Difference!)
For quick help selecting the right GPS unit, try our
GPS Selector Tool,
check specifications, or
compare GPS units. If you have a specific question about an
item, try entering your question using the
Questions & Answers section above - we usually respond on the same or next day. During our office hours 9AM - 6PM MDT, Mon-Fri, you can contact us using
, or reach us by phone at 1-866-GPS-CITY.
What's Included With The RAM Mount Four Hole AMPS Plate Stainless Steel U-Bolt Mount? The RAM Mount Four Hole AMPS Plate Stainless Steel U-Bolt Mount ships with the following items included:

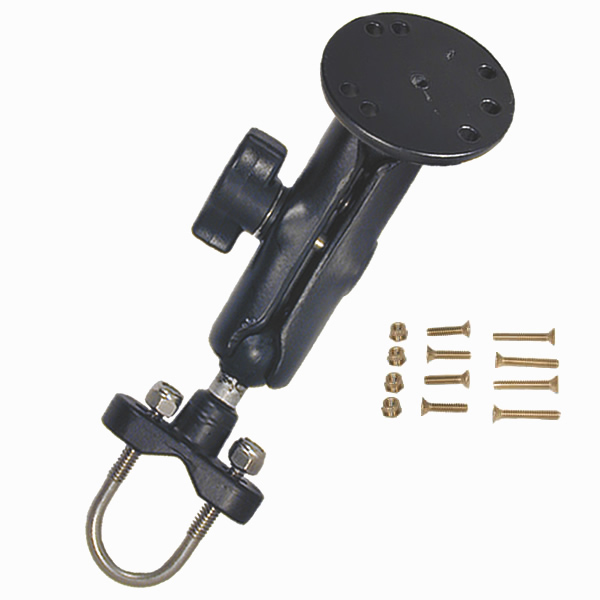

RAM Mount Four Hole AMPS Plate Stainless Steel U-Bolt Mount Description The RAM-B-149-G1 RAM Mount Marine Grade Aluminum Mount, with Stainless Steel U-Bolt Rail Base, consists of the 1 inch diameter ball and socket system with RAM Universal 2.5 inch diameter plate and connection hardware. This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the connection 2.5 inch diameter plate will connect to a large variety of third party cradles and mounts.
Mount Cradle Design:
The RAM-B-202-G1 RAM Mount Aluminum 2.5 inch diameter round plate, with connection plate hardware, has an AMPS hole pattern which will connect to many different cradles. The plate ships with a set of short and long nuts and bolts to connect the plate to your required cradle, and many other devices. This RAM Mount plate will connect to many different cradles made by Garmin with an AMPS four hole pattern, including the following:
Note: The Garmin cradles listed are included with the purchase of each GPS unit, or can purchased separately.
* The Garmin cradle for the GPSMAP 176, GPSMAP 176C, GPSMAP 276C, GPSMAP 196 (only the cradle on the yoke mount) and GPSMAP 296 (only the cradle on the yoke mount) will connect to this RAM mount, by unscrewing the cradle from the mount. For an even stronger holding cradle, you can purchase the cradle manufactured by RAM (RAM-HOL-GA7).
Mount Arm Design:
The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Mount Base Design:
The RAM-B-231 RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Stainless Steel U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
