Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$40.53CDN |
| Our Price: |
$30.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$9.58CDN (24%) |
Availability: |
In Stock.
Ships from Calgary tomorrow, May 25. |
|
| |
| Model: |
RAM Mount eTrex Series Flat No Hole Plate Mount |
| Part No: |
RAM-B-138-GA5-1U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Garmin eTrex Cradle: In Use (RAM-HOL-GA5)
(1,678 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,579 views) |
RAM AMPS Hole Pattern: Explained
(7,998 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,878 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,910 views) |
|
What's Included In The Box? |
The RAM Mount eTrex Series Flat No Hole Plate Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-138-GA5-1U |
SKU: |
RAMB138GA5-1 |
UPC: |
793442910401 |
| Announced: |
March 24, 2008 |
First Shipped: |
March 24, 2008 |
Weight: |
0.632 lbs. |
RAM Mount eTrex Series Flat No Hole Plate Mount Alternative Models |
RAM Mount eTrex Mono Screw Down Plate Mount |
RAM Mount Plastic eTrex Screw Down Plate Mount | | | | |
|
Manufacturer Description |

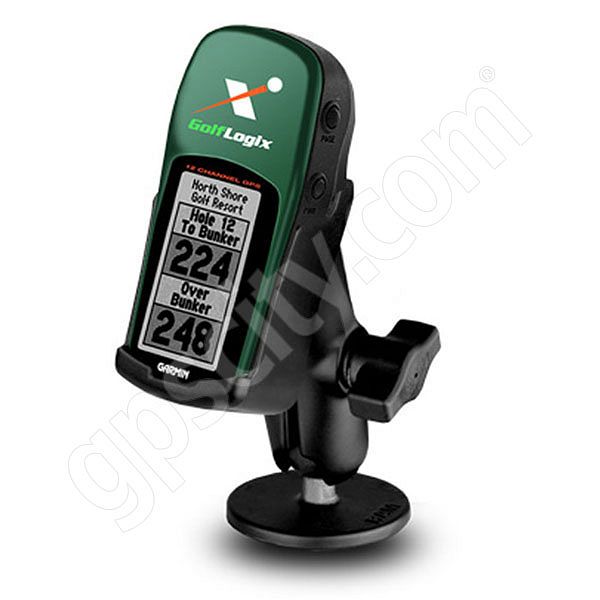

The RAM-B-138-GA5-1 Garmin eTrex Series (non color) RAM Mount is a Marine Grade Aluminum Mount with a Flat Surface Screw Down Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Garmin eTrex Series mount to your optimum viewing position.
Garmin GPS Mount Options:
 To help ensure you have the Garmin eTrex (non-color screen) Series Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-GA5 Series of Garmin eTrex (non-color screen) Cradles and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA5 Garmin eTrex (non-color screen) Series Cradle.
Garmin GPS Mount Cradle Design:
The RAM-HOL-GA5 RAM Mount High Strength Plastic Cradle is designed to hold the Garmin eTrex Series (non-color screen), including the following GPS units,
- Garmin eTrex (Yellow)
- Garmin eTrex H (Yellow)
- Garmin eTrex Camo
- Garmin eTrex Summit
- Garmin eTrex Venture
- Garmin eTrex Legend
- Garmin eTrex Vista
All cables can stay connected to the unit while in the RAM cradle.
The Garmin eTrex Color Series WILL NOT fit this cradle. These units require the RAM-HOL-GA16 eTrex Color cradle and mounts.
Garmin GPS Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Garmin GPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Garmin GPS Mount Base Design:
The RAM-B-202-GO1 RAM Mount Marine Grade Aluminum Screw Down Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 2.5 inch diameter No Hole Plate. The plate does not have any pre-drilled holes so you can either use the RAM-202PSA adhesive disk to mount this base, or drill the hole pattern you require. For a layout of the 1 inch rubber ball location and plate size (Note: Holes are not drilled in this plate), take a closer look with the Design E-Drawings for the RAM-B-202 (pdf file).
|
Features & Tips |
Here is a listing we have put together of some of the common eTrex Series Flat No Hole Plate Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for Garmin eTrex Series (non color).
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Round 2.5 inch diameter no hole plate designed to be PSA adhesive disk.
- Common Applications:
- Vehicle Mounts: Attaching to vehicle dash with PSA Adhesive or drilling personal holes.
- Motorcycle Mounts: Attaching to small ledge or flat surface on motorcycle console with PSA Adhesive or drilling personal holes.
|
