Customer Images
Share your images and get a
free gpscity.ca t-shirt!
|
Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$53.47CDN |
| Our Price: |
$42.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$10.52CDN (20%) |
Availability: |
In Stock.
Ships from Calgary today, May 24. |
|
| |
| Model: |
RAM Mount Dual Locking Suction with Standard Arm and Round Plate |
| Part No: |
RAM-B-166-1-202U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Rectangular Plate: Comparison Overview
(2,131 views) |
RAM Round Plate: Overview (RAM-B-202U)
(8,288 views) |
RAM AMPS Hole Pattern: Explained
(7,998 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,878 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,910 views) |
|
What's Included In The Box? |
The RAM Mount Dual Locking Suction with Standard Arm and Round Plate ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Plate Mounts |
| Model: |
RAM-B-166-1-202U |
SKU: |
RAMB166-1202 |
UPC: |
|
| Announced: |
January 1, 2007 |
First Shipped: |
January 1, 2007 |
Weight: |
1.187 lbs. |
Manufacturer Description |

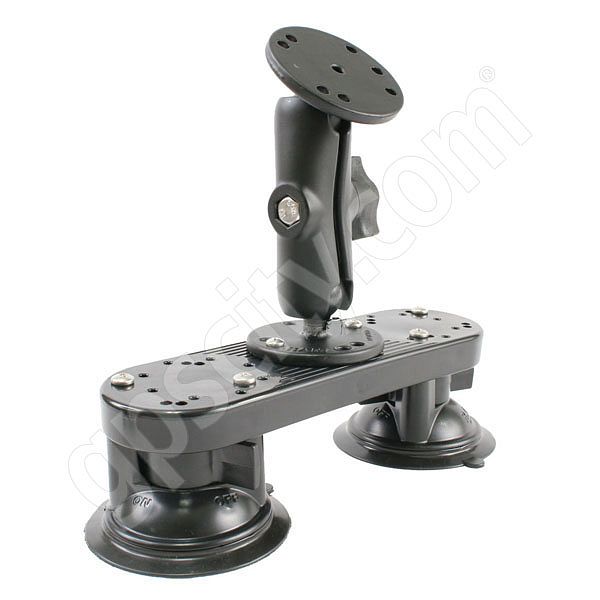

The RAM Mount Black Powder Coated Marine Grade Aluminum Assembly System includes a 1'' dia. ball and socket system with a DUAL 3.25'' Plastic Locking Suction Base and a RAM Universal Round Plate End.
This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the Round Plate will connect to a large variety of third party cradles and mounts, including those with the industry standard AMPS hole pattern.
Plate Cradle Design:
 The RAM-B-202 RAM Mount Marine Grade Aluminum Universal Plate has a 1.0'' diameter Rubber Ball connected at right angles to a 2.5 inch diameter round plate. The plate has pre-drilled holes in the base plate, including the universal AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
Note: This base plate will attach to any of the RAM plastic HOL holders, but generally the RAM-B-238 Diamond Plate is used.
Arm Design:The RAM Mount Powder Coated Marine Grade Aluminum Dual Socket Arm (RAM-B-201) is 3.0'' long when measured between socket centers.
Base Design:
 The RAM-B-224-333 RAM Mount Dual Locking Suction Cup Base with 1.0 inch diameter ball consists of a High Strength Plastic Plate with a RAM Locking Suction Cup Base at each end. This base has a suction grip which allows you to mount this system to any non-porous surface, like a windshield, with confidence.
|
Features & Tips |
Here is a listing we have put together of some of the common Dual Locking Suction with Standard Arm and Round Plate features,
along with a few user tips that you may find of help for this particular item. | Material: Black Powder Coated Marine Grade Aluminum with High Strength Plastic and Rubber Suction Cups
Join Type: RAM Dual 1'' Rubber Ball and Socket System
Arm Type: RAM Arm with Dual 1'' Sockets
Arm Length: Standard length of 3'' between socket centers
Understanding the part number:
RAM = The main part of the mount is made out of a Black Powder Coated Marine Grade Aluminum
B = Dual 1'' Rubber Ball and Socket System
166-1 = The mount is made up of a Dual Locking Suction Cup Base joined with a plastic plate (RAP-333U).
202 = The end of the mount has a 2.5 inch diameter Round Plate End. |
