| List Price: |
$36.49CDN |
| Our Price: |
$28.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$7.54CDN (21%) |
Availability: |
In Stock.
Ships from Calgary on Monday, May 28. |
|
| |
|
|
| Model: |
RAM Mount Diamond Plate Mount with Belt Button Clip |
| Part No: |
RAM-B-102-304 |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,594 views) |
RAM AMPS Hole Pattern: Explained
(8,013 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,884 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,920 views) |
Check out our
channel. |
|
What's Included In The Box? |
The RAM Mount Diamond Plate Mount with Belt Button Clip ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Belt Clip Mounts |
| Model: |
RAM-B-102-304 |
SKU: |
RAMB102-304 |
UPC: |
|
| Announced: |
September 5, 2005 |
First Shipped: |
August 3, 2005 |
Weight: |
0.519 lbs. |
Manufacturer Description |

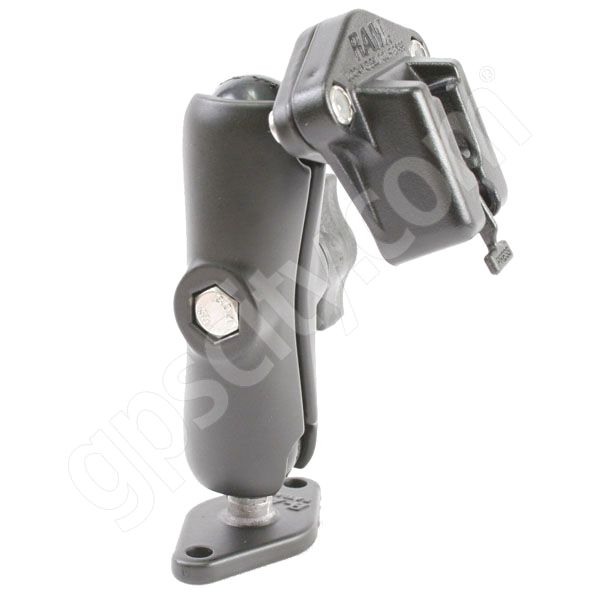

The RAM-B-102-304 Standard Belt Button Holder Small Base RAM Mount is a Marine Grade Aluminum Mount with a two hole diamond plate base and RAM Universal Button Clip Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Belt Button mount to your optimum viewing position.
Mount Cradle Design:The RAP-304 RAM Mount High Strength Plastic Holder is designed to connect to a standard plastic button knob found on the back of many Golf Course GPS, Cell Phones, GPS Units, Music Players and more.
Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Mount Base Design:
The RAM-B-238 Powder Coated Marine Grade Aluminum Universal Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 1 1/4 x 2 1/2 inch Diamond Plate. The plate has two pre-drilled holes positioned at either tip of the diamond plate. The hole pattern found on the Diamond Plate will connect to a large variety of RAM Mount and third party cradles and mounts, including those with the industry standard AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Golf Course GPS Mount:
The RAM-B-238 Diamond Plate Base will allow you to connect this mount to a golf cart frame as a permanent solution. You will need to purchase some mounting hardware to mount the base. The mount will hold your Golf Course GPS, including the SkyCaddie GPS , Golflogix GPS and GolfBuddy GPS, in the perfect mounting position for viewing, while keeping the GPS easy to grab when you need it.
|
Features & Tips |
Here is a listing we have put together of some of the common Diamond Plate Mount with Belt Button Clip features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Standard belt knob button holder.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Diamond shape plate design to be bolted to a flat surface.
- Common Applications:
- Golf Buggy Mounts: Attaching to the golf buggy frame work.
- General Mounts: Attaching to available pipes or poles.
|
