Additional Images
Customer Images





Share your images and get a
free gpscity.ca t-shirt!
|
Customer Rating:  (based on 23 reviews). Email:
 Print:
100% of our reviewers recommend this item. See more RAM Mount items. |
| |
| List Price: |
$35.55CDN |
| Our Price: |
$28.95CDN (Ships for $5.99. Restrictions apply.) |
| You Save: |
$6.60CDN (19%) |
Availability: |
In Stock.
Ships from Calgary tomorrow, May 25. |
|
| |
| Model: |
RAM Mount Cradle Plate Motorcycle Mount Bolt RAM-B-174U |
| Part No: |
RAM-B-174U (also RAM-B-174) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Motorcycle Kit Mount: Overview (RAM-B-174U)
(4,160 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,579 views) |
RAM AMPS Hole Pattern: Explained
(7,998 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,878 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,910 views) |
|
What's Included In The Box? |
The RAM Mount Cradle Plate Motorcycle Mount Bolt RAM-B-174U ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Cradle Mounts |
| Model: |
RAM-B-174U |
SKU: |
RAMB174 |
UPC: |
793442901812 |
| Announced: |
May 1, 2006 |
First Shipped: |
May 3, 2004 |
Weight: |
0.744 lbs. |
Manufacturer Description |
The RAM-B-174 Cradle Plate Motorcycle Kit RAM Mount is a Marine Grade Aluminum Mount with a motorcycle brake/clutch reservoir base PLUS multi u-bolt system and Diamond Plate. The cradle diamond plate has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. The pivot points for this mount consist of the RAM 1 inch diameter patented rubber ball and socket system and are located at the cradle plate and base ends. With a twist of the arm knob, you can move the cradle plate mount to your optimum viewing position.
Universal Cradle Plate Mount Options:
 To help ensure you have the Universal Diamond Plate Mount you require, take a look at the list of available diamond plate mounts with a double hole pattern on the RAM Cradle Diamond Plate and Mounts Page. Here you can select from suction cup mounts, flat surface screw down mounts, car mounts, wall mounts and more bundled with a RAM-B-238 Diamond Plate for cradle mounting.
Universal Cradle Plate Mount Plate Design:
 The RAM-B-238 Powder Coated Marine Grade Aluminum Universal Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 1 1/4 x 2 1/2 inch Diamond Plate. The plate has two pre-drilled holes positioned at either tip of the diamond plate. The hole pattern found on the Diamond Plate will connect to a large variety of RAM Mount and third party cradles and mounts, including those with the industry standard AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Universal Cradle Plate Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Universal Cradle Plate Mount Base Design:

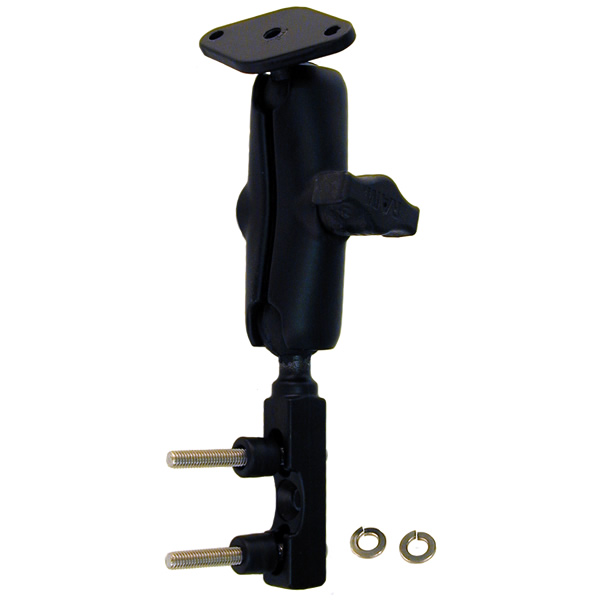

 The RAM-B-309-7 RAM Mount Motorcycle Kit Base can mount to either the clutch/ brake reservoir or directly to a round handle bar rail. The base is constructed of marine grade aluminum with an integrated 1 inch diameter rubber ball, hardware for rail mounting and both standard and metric mounting bolts for motorcycle reservoir mounting. The zinc coated metal u-bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 1/2 to 1.25 inches.
The base connects to the left or right side of your handlebar clutch/brake reservoir on the Honda Goldwing and other select motorcycles or you can connect directly to your handlebars with the u-bolt hardware. To see if this base will work with your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94 inches and a maximum of 1.58 inches.
|
Features & Tips |
Here is a listing we have put together of some of the common Cradle Plate Motorcycle Mount Bolt RAM-B-174U features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Plate Design: Universal Diamond Plate to connect directly to a RAM Mount or third party cradle.
- Cradle Plate Material: Black Powder Coated Marine Grade Aluminum.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Motorcycle Brake/Clutch Reservoir Base PLUS multi U-Bolt system.
- Common Applications:
- Motorcycle Mounts: Used mostly with Goldwing and Harley Davidson Motorcycles.
|
