| Model: |
RAM Mount Asus R2H Tablet Screw Down Plate Mount |
| Part No: |
RAM-B-138-ASU1 |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Rectangular Plate: Comparison Overview
(2,109 views) |
RAM Round Plate: Overview (RAM-B-202U)
(8,275 views) |
RAM AMPS Hole Pattern: Explained
(7,944 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,837 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,865 views) |
|
What's Included In The Box? |
The RAM Mount Asus R2H Tablet Screw Down Plate Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
UMPC Mounts |
| Model: |
RAM-B-138-ASU1 |
SKU: |
RAMB138ASU1 |
UPC: |
793442907289 |
| Announced: |
August 8, 2007 |
First Shipped: |
January 1, 2007 |
Weight: |
0.963 lbs. |
Manufacturer Description |

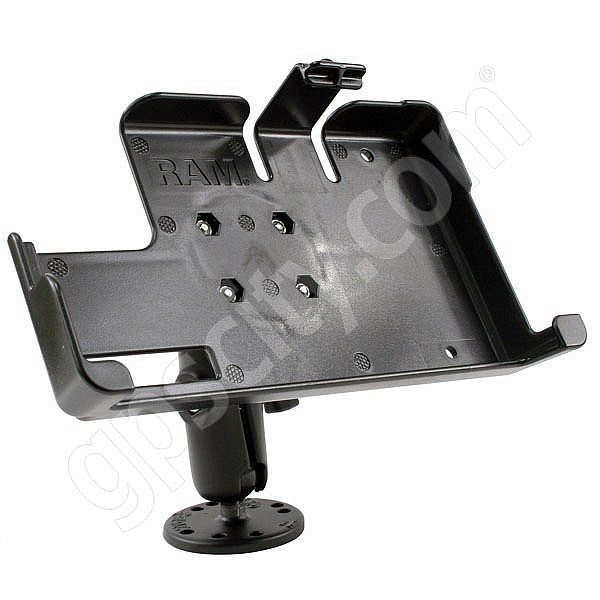

The RAM-B-138-ASU1 Asus R2H Tablet RAM Mount is a Marine Grade Aluminum Mount with a Flat Surface Base and RAM Plastic Cradle for the Asus R2H Tablet. The mount is designed with a 1 inch diameter RAM ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Asus R2H Tablet mount to your optimum viewing position.
Asus R2H Tablet Mount Cradle Design:
The RAM-HOL-ASU1 High Strength Plastic Cradle is designed to hold the Asus R2H Mobile Tablet PC. The back of the cradle is connected to the four hole AMPS pattern on the RAM round plate with ball. The ball gives the cradle the ability to connect to the RAM arm on this mount and also creates a ball and socket joint allowing you to move the cradle into many different viewing locations. All cables can stay connected to the unit while in the RAM cradle.
Asus R2H Tablet Mount Cradle Plate Design:
 The RAM-B-202 RAM Mount Marine Grade Aluminum Round Plate is designed to connected to the back of cradles with an AMPS hole pattern. The round plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
Asus R2H Tablet Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Asus R2H Tablet Mount Base Design:
The RAM-B-202 RAM Mount Marine Grade Aluminum Screw Down Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 2.5 inch diameter Plate. The plate has pre-drilled holes in the base plate, including the universal AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
Mount Base Mounting Solutions:Mounting hardware is NOT included with the purchase of the RAM-B-202. A semi-permanent solution for mounting this base is by using the RAM double sided adhesive disk (RAM-202PSA). The disk will hold the RAM-B-202 base in many different locations without screws.
Asus R2H Tablet Mount Options:
To help ensure you have the Asus R2H Mobile UMPC Mount you require, take a look at the list of available RAM Asus R2H Mobile UMPC mounts on the Asus R2H Mobile UMPC Mount Page. Here you can select from suction cup UMPC mounts, flat surface screw down UMPC mounts, UMPC aviation mounts, rail u-bolt UMPC mounts and more bundled with the Asus R2H Mobile UMPC Cradle.
|
Features & Tips |
Here is a listing we have put together of some of the common Asus R2H Tablet Screw Down Plate Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty
- Cradle Design: Custom Cradle for Asus R2H Tablet Series
- Cradle Material: High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Round 2.5 inch diameter plate design to be bolted to a flat surface.
- Common Applications:
- Vehicle Mounts: Attaching to vehicle dash or console with hardware or PSA Adhesive.
- Wall / Surface Mounts: Attaching to a flat surface or wall with hardware.
- Motorcycle Mounts: Attaching to small ledge or flat surface on motorcycle console.
|
