Tablet Mounts > Vehicle Mounts

RAM Mount Motion Computing Motion C5 F5 RAM-POD Universal Vehicle Floor Mount

   ATTENTION!  This item has a NEW & IMPROVED page format. Please click this link to view the new page.

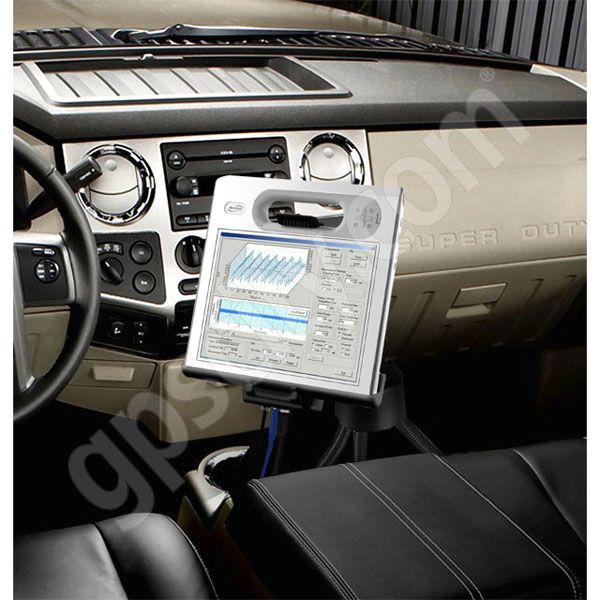

RAM Mount Motion Computing Motion C5 F5 Vehicle Floor Mount
Click image for larger view
Mfg P/N: RAM-316-3-MOT9
SKU: RAM316-3MOT9

Share this item: Facebook DiggDelIcioUs
 $158.95
Price shown in CAD currency

In Stock! Ships by 2PM MST today, February 9.

Qty:


This item is Brand New (not refurbished), and has a Lifetime Warranty (excluding electronic or lense components)

Found a lower price? Let us know!


JUMP TO: (Use these links to quickly jump down to a section of the page)
Accessories
Product Features		 Customer Reviews
What's In The Box?		 Product Videos
Product Tips		 Family Tree
Alternative Units



MOTION COMPUTING MOTION C5 F5 VEHICLE FLOOR MOUNT PRODUCT DETAILS
 Back to Top

The RAM-316-3-MOT9 Motion Computing Motion C5 and Motion F5 Tablet PC Series Universal Vehicle Floor RAM-POD Mount is a Marine Grade Aluminum with a RAM Custom Plastic Cradle. The mount is designed with a 1.5 inch diameter RAM ball and socket system that has adjustment points at the cradle and top of Aluminum Rigid Flexible Rod Tri-Pod. With a twist of the arm knob, you can move the Motion Computing Motion C5 and Motion F5 mount to your optimum viewing position.

Note: This mount does not require any drilling for installation.

Motion Computing Tablet Mount Options:



Motion Computing Tablet Mount Cradle Design:



Motion Computing Tablet Mount Cradle Plate:

The RAM-2461 Marine Grade Aluminum 75mm VESA Plate is designed to connected to the back of the mount cradle with a standard 75m VESA hole pattern. The square plate has a 1.5 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1.5 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.5 inch rubber ball location, take a closer look with the RAM-2461 Design Drawings (pdf file).

Motion Computing Tablet Mount Arm Design:


The RAM-201 RAM Mount Dual Socket Arm is a 1.5 inch C size Ball Socket Arm made of Marine Grade Aluminum. The arm is 4.63 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-201 arm, take a closer look with the RAM-201 Design Drawings (pdf file).

Motion Computing Tablet Mount Base Design:

The RAM POD III is a universal base which allows you to mount a large device like a laptop or tablet PC in your car safely and securely. The mount bolts to the seat rail bolts of the passenger seat and can be custom shaped to fit in your vehicle in the location you require.

The base consists of three different legs: 18 inches, 20 inches and 30 inches, and at right angles to the base of the legs are feet with mounting holes. To mount the RAM-POD III, simply place the two of the feet holes into the passenger seat mounting bolts and adjust the mount to the required height with the flexible legs. The third flexible leg on the RAM Pod III should also be bolted under the dash of the vehicle, to help support the mount. The rigid flexible arms will hold everything you need safely and securely.

Installation Manual::Take a look at the assembly instructions (pdf file) of the RAM POD III (RAM-316-1A).



MOTION COMPUTING MOTION C5 F5 VEHICLE FLOOR MOUNT PRODUCT FEATURES
 Back to Top

  • Warranty: Manufacturer's Life Time Warranty.
  • Cradle Design: Custom Cradle for Motion Computing Motion C5 and Motion F5 Series.
  • Cradle Material: Black High Strength Composite Plastic.
  • Mount Material: Black Powder Coated Marine Grade Aluminum with Aluminum Rod and High Strength Composite Plastic.
  • Mount Ball Size: RAM 1 inch Solid Rubber Ball.
  • Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
  • Arm Type: RAM Arm with Single 1 inch Socket and Single Octagon Button Socket.
  • Arm Length: Short length of 1.75 inches between socket center and edge.
  • Post Length: 18 inch Aluminum Rod.
  • Base Type: Vehicle Floor Mount to be bolted into existing seat railing.
  • Common Applications:
    • Vehicle Mounts: Attaching to passengers seat rail bolt.



MOTION COMPUTING MOTION C5 F5 VEHICLE FLOOR MOUNT WHAT'S IN THE BOX?
 Back to Top

1. RAM Mount Motion Computing Motion C5 F5 Tablet PC Cradle (RAM-HOL-MOT9U)
2. RAM Mount Square 75mm VESA Monitor Plate with 1.5 inch Ball (RAM-2461U)
3. RAM Mount Standard Length Dual 1.5 inch Socket Arm (RAM-201U)
4. RAM Mount Round Plate with 1.5 inch Ball RAM-202U (RAM-202U)
5. RAM Mount RAM POD III Tri Leg Base (RAM-316-3AU)




MOTION COMPUTING MOTION C5 F5 VEHICLE FLOOR MOUNT CUSTOMER REVIEWS
Back to Top

Click here to Add Your Own Review. It's quick and easy! No login required.

There are currently no reviews for this product. If you have comments on this product that you would like to share with other users, please feel free to write a quick review using the form below. Thank you!
