GPS Mounts > Magellan Mounts

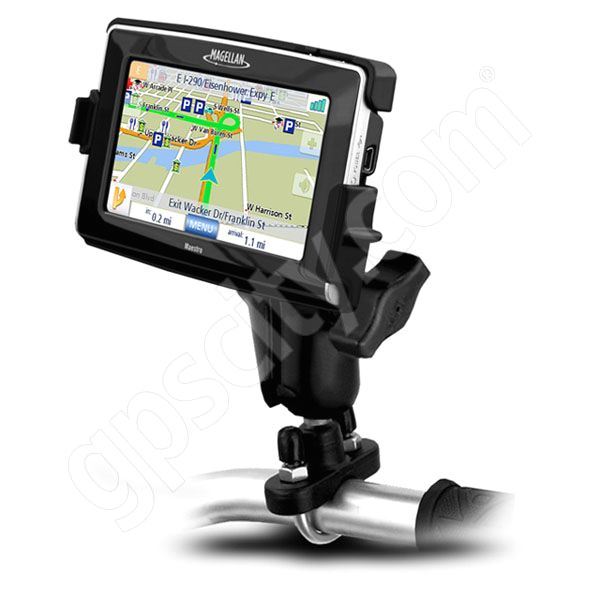

RAM Mount Aluminum Magellan Maestro 4200 Series Stainless Steel U-Bolt Motorcycle Mount

   ATTENTION!  This item has a NEW & IMPROVED page format. Please click this link to view the new page.

RAM Mount Maestro 42xx Series Stainless Steel U-Bolt Mount
Click image for larger view
Mfg P/N: RAM-B-149-MA12U
SKU: RAMB149MA12

Share this item: Facebook DiggDelIcioUs
 $32.95
Price shown in CAD currency

In Stock! Ships by 2PM MST today, February 9.

Qty:


This item is Brand New (not refurbished), and has a Lifetime Warranty (excluding electronic or lense components)

Found a lower price? Let us know!


JUMP TO: (Use these links to quickly jump down to a section of the page)
Accessories
Product Features		 Customer Reviews
What's In The Box?		 Product Videos
Product Tips		 Family Tree
Alternative Units



MAESTRO 42XX SERIES STAINLESS STEEL U-BOLT MOUNT PRODUCT DETAILS
 Back to Top

The RAM-B-149-MA12 Magellan Maestro 4200 Series Motorcycle RAM Mount is a Marine Grade Aluminum Mount with a Stainless Steel U-Bolt Rail Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Magellan Maestro 4200 Series mount to your optimum viewing position.

Magellan GPS Mount Cradle Design:


The RAM-HOL-MA12 RAM Mount High Strength Plastic Cradle is designed to hold the Magellan Maestro 4200 GPS Series, including the following GPS units,
  • Magellan Maestro 4200,
  • Magellan Maestro 4210,
  • Magellan Maestro 4220,
  • Magellan Maestro 4250.
All cables can stay connected to the unit while in the RAM cradle.

Magellan GPS Mount Cradle Plate:


The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).

Magellan GPS Mount Arm Design:


The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).

Magellan GPS Mount Base Design:


The RAM-B-231 RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Stainless Steel U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.

To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.

NOTE: This base is completely rust proof.

For Small Rail Mounting:

For a smaller rail, you can purchase the RAM Mount Plastic U-Bolt Adapter for circular rails with diameter down to 0.5 inches.

For Larger Rail Mounting:

For a larger rail, you can purchase the RAM Mount Stainless Steel Large Rail U-Bolt for circular rails with diameter up to 1.25 inches.

Magellan GPS Mount Options:


To help ensure you have the Magellan Maestro 4200 Series Mount you require, take a look at the list of available RAM Magellan GPS mounts on the RAM-HOL-MA12 Series for the Magellan Maestro 4200 Series Cradles and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-MA12 Magellan Maestro 4200 Series Cradle.



MAESTRO 42XX SERIES STAINLESS STEEL U-BOLT MOUNT PRODUCT FEATURES
 Back to Top

  • Warranty: Manufacturer's Life Time Warranty.
  • Cradle Design: Custom Cradle for Magellan Maestro 4200 Series.
  • Cradle Material: Black High Strength Composite Plastic.
  • Mount Material: Black Powder Coated Marine Grade Aluminum.
  • Mount Ball Size: RAM 1 inch Solid Rubber Ball.
  • Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
  • Arm Type: RAM Arm with Dual 1 inch Sockets.
  • Arm Length: Standard length of 3 inches between socket centers.
  • Base Type: Motorcycle Handlebar Base or Universal Round Pipe Base with Stainless Steel U-Bolt. (0.75 to 1 inch wide)
  • Common Applications:
    • Motorcycle and ATV Mounts: Attaching to handlebars.
    • Hiking Mounts: Attaching to hiking staffs.
    • General Mounts: Attaching to available pipes or poles.



MAESTRO 42XX SERIES STAINLESS STEEL U-BOLT MOUNT WHAT'S IN THE BOX?
 Back to Top

1. RAM Mount Magellan Maestro 42xx and 43xx Series Series Cradle (RAM-HOL-MA12U)
2. RAM Mount Diamond Plate with 1 inch Ball RAM-B-238U (RAM-B-238U)
3. RAM Mount Medium Arm B-Socket RAM-B-201U (RAM-B-201U)
4. RAM Mount Steel U-Bolt Motorcycle Mount Base RAM-B-231U (RAM-B-231U)




MAESTRO 42XX SERIES STAINLESS STEEL U-BOLT MOUNT CUSTOMER REVIEWS
Back to Top

Click here to Add Your Own Review. It's quick and easy! No login required.



VGYogi
Warner Robins, GA
June 15, 2009
 		 FITS LIKE A GLOVE

Pros: perfect fit
Cons: none
This is easy to mount and holds my Maestro 4250 very snug with no vibrations. It is so snug that I think I'm going to brake the release clip which is hard to pull back, but it is guaranteed not to brake so no problem there if it does. I can either remove my GPS or just remove the GPS base easily when leaving my bike with in seconds. GPS City has all kinds of mounts and I'm looking to purchase a bar mount for my iPhone.

10 out of 20 viewers found this review helpful.

Was this review helpful to you?   Yes   No
