RAM Mount Aluminum Garmin eTrex Color Series Locking Suction Cup Mount
ATTENTION! This item has a NEW & IMPROVED page format. Please click this link to view the new page.

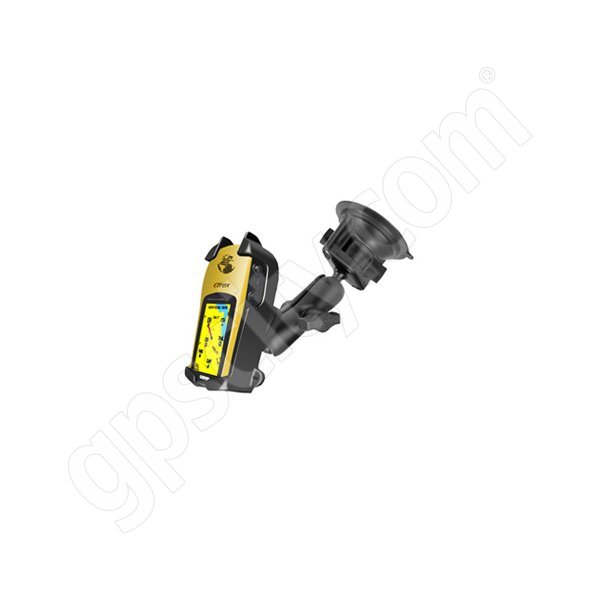

RAM Mount Garmin eTrex Color Series Locking Suction Cup Mount

Click image for larger view
Mfg P/N: RAM-B-166-GA16U
SKU: RAMB166GA16

Share this item:

$30.95
Price shown in CAD currency

In Stock! Ships by 2PM MST today, February 9.

Qty:

This item is Brand New (not refurbished), and has a Lifetime Warranty (excluding electronic or lense components)

Found a lower price? Let us know!

More Images...

POPULAR GARMIN ETREX COLOR SERIES LOCKING SUCTION CUP MOUNT ACCESSORIES!!

GPS CITY

Super Grip Dashboard Friction Mount Base

$15.95

RAM MOUNT

Black Rose Adhesive Plate for Suction Cups

$5.68

RAM MOUNT

Black Large Adhesive Plate for Suction Cups

$4.38

RAM MOUNT

Clear Large Adhesive Plate for Suction Cups

$4.38

RAM MOUNT

RAM-A-CAN II Vehicle Cup Flat Surface Base

$19.95

Even MORE ACCESSORIES below!!

JUMP TO: (Use these links to quickly jump down to a section of the page)

Accessories
Product Features

Customer Reviews
What's In The Box?

Product Videos
Product Tips

Family Tree
Alternative Units

GARMIN ETREX COLOR SERIES LOCKING SUCTION CUP MOUNT PRODUCT DETAILS

The RAM-B-166-GA16 Garmin eTrex Color Series Windshield Suction RAM Mount is a Marine Grade Aluminum Mount with a Locking Suction Cup Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Garmin eTrex Color Series mount to your optimum viewing position.

Note: This mount does not require any drilling for installation.

Garmin GPS Mount Options:

To help ensure you have the Garmin eTrex Color Series Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-GA16 Series of Garmin eTrex Color series Cradles and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA16 Garmin eTrex Color Series Cradle.

Garmin GPS Mount Cradle Design:

The RAM-HOL-GA16 RAM Mount High Strength Plastic Cradle is designed to hold the Garmin eTrex Color Screen Series, including the following GPS units,

Garmin eTrex Summit HC
Garmin eTrex Venture C
Garmin eTrex Venture Cx
Garmin eTrex Venture HC
Garmin eTrex Legend C
Garmin eTrex Legend Cx
Garmin eTrex Legend HCx
Garmin eTrex Vista C
Garmin eTrex Vista Cx
Garmin eTrex Vista HCx

All cables can stay connected to the unit while in the RAM cradle.

The Garmin eTrex, eTrex Camo, eTrex Summit, eTrex Venture, eTrex Legend and eTrex Vista WILL NOT fit this cradle. These units require the RAM-HOL-GA5 eTrex (non-color screen) cradle and mounts.

Garmin GPS Mount Cradle Plate:

The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).

Garmin GPS Mount Arm Design:

The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).

Garmin GPS Mount Base Design:

The RAM-B-224-1 RAM Mount Plastic Locking 3.25 inch diameter Rubber Suction Cup Base, with Marine Grade Aluminum Diamond Plate, is designed to have an extra strong hold on any smooth non-porous surface. With a twist on the locking knob, the suction cup base adheres to any glass¹ or non-porous plastic surface, as found on our Non Skid Base with Plastic Disk and Plastic Adhesive Disk.

Connected to the top of the Suction Cup is a RAM-B-238 RAM Mount Marine Grade Aluminum Diamond Plate with 1 inch diameter Rubber Ball. This plate allows the suction cup to join to an open socket found on the RAM 1 inch diameter socket arms.

¹ Important legal note to California and Minnesota Drivers

Suction Cup Base Mounting Options:

We currently offer three alternative solutions for mounting your suction cup mount in a location other than a windshield:

The Super Grip Non Skid Base with round plastic plate, is a weighted base that can be placed on your dash without an adhesive or drilling. Simply place the base on your dash, or any flat surface and then attach the suction cup to the round plastic plate. This is perfect when you want a temporary mounting solution but the windshield mount just isn't the answer.
The Suction Cup Adhesive Disk with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply stick the the plate to any flat surface and then attach the suction cup to the plate. This is perfect when you need to attach your suction cup mount to your car dash vertically or horizontally, rather than to your windshield.
The Suction Cup Drink Cup Holder with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply place the base into any cup holder in your vehicle and then attach the suction cup to the plate found on top. This is perfect when you need to attach your suction cup mount away from the windshield or when you just want the mount off the dash.

GARMIN ETREX COLOR SERIES LOCKING SUCTION CUP MOUNT PRODUCT FEATURES	Back to Top

Warranty: Manufacturer's Life Time Warranty. Cradle Design: Custom Cradle for Garmin eTrex Color Series. Cradle Material: Black High Strength Composite Plastic. Mount Material: Black Powder Coated Marine Grade Aluminum and Plastic and Rubber Locking Suction Cup. Mount Ball Size: RAM 1 inch Solid Rubber Ball. Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint. Arm Type: RAM Arm with Dual 1 inch Sockets. Arm Length: Standard length of 3 inches between socket centers. Base Type: Round 3.25 inch diameter Locking Suction Cup for non-porous surfaces Common Applications: Vehicle Mounts: Attaching to vehicle windshield. Vehicle Mount Alternatives: Attach to a Non Skid Weighted Base, a Plastic Suction Adhesive Disk or a Cup Holder Sub-base fora non-windshield mounting solution. Aviation Mounts: Attaching to windshield.

GARMIN ETREX COLOR SERIES LOCKING SUCTION CUP MOUNT WHAT'S IN THE BOX?	Back to Top

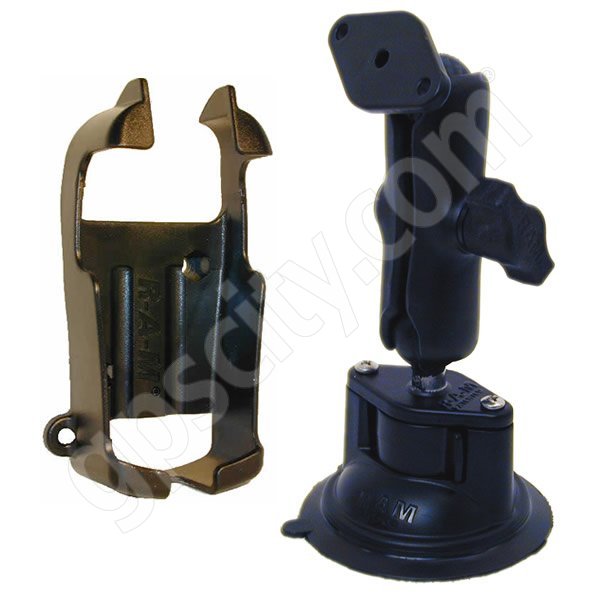

1. RAM Mount Garmin eTrex Color Cradle RAM-HOL-GA16U (RAM-HOL-GA16U) 2. RAM Mount Diamond Plate with 1 inch Ball RAM-B-238U (RAM-B-238U) 3. RAM Mount Medium Arm B-Socket RAM-B-201U (RAM-B-201U) 4. RAM Mount Diamond Plate with 1 inch Ball RAM-B-238U (RAM-B-238U) 5. RAM Mount Locking Suction Mount Base RAP-224-1U (RAP-224-1U)

GARMIN ETREX COLOR SERIES LOCKING SUCTION CUP MOUNT CUSTOMER REVIEWS

Click here to Add Your Own Review. It's quick and easy! No login required.
cam Winnipeg, Manitoba January 8, 2010	FITS PERFECTLY Pros: adjusts to any position I mounted this on my snowmobile (with the handle bar adapter). Due to lack of snow haven't had many opportunities to try it's ruggedness but it fit my Garmin perfectly and seems very well built. Time will tell if it stands up to our Canadian prairie winters. When used on a car windshield, it sticks like glue. Other products are interchangeable with each other so you can mix and match like I did. 3 out of 6 viewers found this review helpful. Was this review helpful to you? Yes No

Bill Yuma, AZ November 25, 2009	THE RAM MOUNT GARMIN ETREX COLOR SERIES LOCKING SU I purchase this mounting system for my Garmin ETrex and found that I could also use it for my Sat Radio. This is a great little system and I highly reccomend it. 9 out of 20 viewers found this review helpful. Was this review helpful to you? Yes No

RS Ontario November 6, 2009	RAM MOUNT FOR ETREX COLOUR Pros: very stable Cons: only holds on window surfaces (at least for me) I ordered this so that I could stop fiddling with the GPS while driving (and comply with Ontario's new hands-free law). This mount is what I needed. VERY sturdy. Very flexible: holds the GPS at almost any angle. I wish it stuck to surfaces other than the window, but I think I knew that going in. GPScity shipping was very fast. I would order from them again. 19 out of 39 viewers found this review helpful. Was this review helpful to you? Yes No

GeoJoe Edmonton November 2, 2009	LOCKING SUCTION CUP MOUNT Pros: great holding power, lots of mounting options Cons: none Was a little leary of suction cup technolgy given that they often don't hold their "grip" for more than a few hours. However the Garmin suctin cup has performed flawlessly and has held firmly in place since initially locking it down more than 4 weeks ago. It's still in place on the dash of my Ford F350 and holds like it's glued down. Fantastic results. 18 out of 36 viewers found this review helpful. Was this review helpful to you? Yes No

Mr CDN Vegas Calgary, AB September 10, 2009	STURDY GPS MOUNT Pros: very flexable Cons: little hard to get the gps back out of the cradle. Very happy with this mount. It can be moved into pretty much every position you could want. GPS cradle grabs my VISTA very tight. It will never fall out of the cradle. I tried it on both the window and the dash of my 1500 RAM driving off road. The suction cup is very good on glass and would not move at all. However trying to get "suction" on the dash (which has a bit of a texture to it) was ok but not as good as on the glass. The glass suction never let go even with a minor tempature change from over night to the morning. 32 out of 68 viewers found this review helpful. Was this review helpful to you? Yes No

Gaidheal PEI July 7, 2009	VERY GOOD MOUNT Pros: infinitely adjustable, substantial, works Cons: big. Apart from having to clear the mounting holes with the tip of a screwdriver (sloppy but inconsequential QA) this mount absolutely is fantastic. I got it to replace the horrible Garmin suction cup mount that vibrated, moved, popped off and required those horrible breaking clips. This thing is substantial! AND IT WORKS! Mine is stuck to an adhesive dish on the dash of my Jeep and hasn't let me down! Love it! I'm ordering another one for my wife. 28 out of 79 viewers found this review helpful. Was this review helpful to you? Yes No

Get Lost Vail, CO July 6, 2009	LOCKING SUCTION CUP MOUNT Pros: unit above suction cup is well made Cons: fix the suction cup it doesn't work Locking suction cup mount will lose suction and fall over with you GPS unit attached. 30 out of 80 viewers found this review helpful. Was this review helpful to you? Yes No

snowfighter Monastery N.S. April 3, 2009	IT WORKS Pros: well built Cons: comes off window with change in temperature A good sturdy mount, perhaps a bit to sturdy. My biggest beef with it is when it is stuck on the window and there is a change in tempature from cold to warmer it falls off. 45 out of 118 viewers found this review helpful. Was this review helpful to you? Yes No

Lysynski December 8, 2008	RAM SUCTION CUP MOUNT - GARMIN ETREX COLOR SERIES Using this with my Vista HCx - what can I say about this: it works perfectly and exactly how I'd expect. 70 out of 135 viewers found this review helpful. Was this review helpful to you? Yes No
