Antennas > MCX Connections
GPS Outfitters Titan III Antenna
ATTENTION! This item has a NEW & IMPROVED page format. Please click this link to view the new page.

Click image for larger view
Mfg P/N: 35012
SKU: TITAN3ANT

Share this item:

$47.95
Price shown in CAD currency

Ships by Thursday, February 11, 2010.

Qty:

This item is Brand New (not refurbished), and has a One Year Warranty.

Found a lower price? Let us know!

JUMP TO: (Use these links to quickly jump down to a section of the page)

Accessories
Product Features

Customer Reviews
What's In The Box?

Product Videos
Product Tips

Family Tree
Alternative Units

TITAN III ANTENNA PRODUCT DETAILS	Back to Top

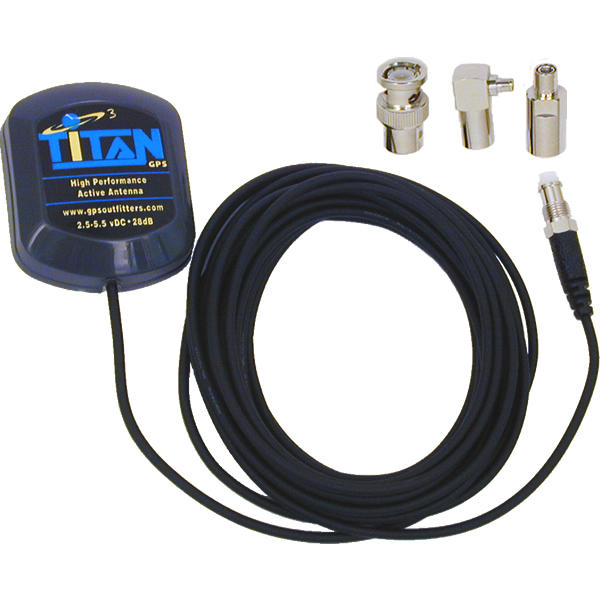

The Titan III antenna is a high gain, low battery draw antennas which provides a high performance signal lock in the toughest conditions. The antennas work with all GPS units with a BNC, MCX or SMB (female) external antenna jack. Just screw on the appropriate connector, attach to your GPS, and you're ready to go. Ideal for auto, RV, and aircraft installations, yet compact enough to use in hunting, hiking, or survey applications. NOTE: This SMB antenna connection will not connect to the Magellan Roadmate Series GPS units. The SMB connection on this antenna is female, the same as the RoadMate plug.

TITAN III ANTENNA PRODUCT FEATURES

Item	Hercules	Mighty Mouse II	Titan III	Micro Mouse
Size (L x W x H)	1.7'' x 1.7'' x 0.56''	2.0'' x 1.75'' x 0.56''	2.31'' x 1.87'' x 0.56''	1.31'' x 1.0'' x 0.44''
Weight (w/ cable)	2.4 oz	4.5 oz	4.5 oz	1.6 oz
Mounting	Magnetic base or velcro mounting pad (not included)
Water	100% waterproof; 95% non-condensing
Temperature	operating -40°C to +85°C; Storage -40°C to +95°C
Input Voltage	2.7 to 5.5 Vdc	2.5 to 5.4 Vdc	2.5 to 5.5 Vdc	2.5 to 3.3Vdc
Current Draw	10mA @ 5 Vdc	5mA @ 5 Vdc	7mA @ 5 Vdc	5mA @ 5 Vdc
Gain	28dB	28dB	28dB	25dB
Gain @ 90°	+5dB typical
Gain @ 10°	-1dB typical
Frequency	Center at 1575.42 MHz
Polarization	Right Handed Circular Polarization
Axial Ratio	3 dB maximum
Output VSWR	2.0:1 maximum	1.5:1 maximum	1.5:1 maximum	1.5:1 maximum
Impedance	50 Ohm
LNA Noise	1.5dB typical 2.5dB maximum
Cable	2 meters/6.5 feet RG174/U	5 meters/16 feet RG174/U	5 meters/16 feet RG174/U	3 meters/9.5 feet RG174/U
Connectors	MCX ONLY	BNC, MCX, SMB	BNC, MCX, SMB	BNC, MCX, SMB
Package Includes	• Antenna	• Antenna • Connectors (BNC, MCX, SMB) • Flange Mount with screws	• Antenna • Connectors (BNC, MCX, SMB) • Flange Mount with screws	• Antenna • Connectors (BNC, MCX, SMB)

TITAN III ANTENNA WHAT'S IN THE BOX?	Back to Top

1. MCX-Male to FME Connector (Straight) 2. MCX-Male to FME Connector (Right Angle) 3. BNC-Female to FME Connector 4. SMB-Female to FME Connector

TITAN III ANTENNA CUSTOMER REVIEWS

Click here to Add Your Own Review. It's quick and easy! No login required.
john Vancouver January 26, 2010	OUTFITTERS TITAN III ANTENNA Pros: very powerful reception Cons: bit expensive Must Have To Boost Your Reception,Fast Finding Signals . 5 out of 10 viewers found this review helpful. Was this review helpful to you? Yes No

dogmeat Iraq April 16, 2009	TITAN III ACTIVE ANTENNA One word AWESOME. The device is great, I have it linked up to my 60csx, I work mainly in a Vehicle, and have had no problems what so ever, GRS tracking is down to 2 meters, and up to 100% fix on up to all Satellites observed on device. The Connection on the back is great to, made of brass, it slots into the back of the GPS (no screw threads required) s makes it very user friendly. comes with enough lead to mount any where on a vehicle, and the magnet is strong. 67 out of 135 viewers found this review helpful. Was this review helpful to you? Yes No

Jonas Andersson Sweden February 19, 2009	GOOD ANTENNA Good perfomance. A bit weak magnet foot. 72 out of 144 viewers found this review helpful. Was this review helpful to you? Yes No

Dawn Thomas December 11, 2008	OUTSTANDING! I have three of the GPS Outfitters Titan III Antenna's in different vehicles and using this antenna makes my Garmin GPS's really standout. Even when sitting in traffic with bridges and tall buildings, I NEVER loose a signal. This antenna is a must if you want the best performance from your GPS!!! Also, carry one as a spare so when you travel and rent a vehicle. 108 out of 220 viewers found this review helpful. Was this review helpful to you? Yes No

Ken November 12, 2008	HIKER, BACK ROAD TRAVELER Bought this unit with my new 60CSx and tried it with and without and found a noticeable difference in precision and speed of acquistion when in more challenging deep ravines and dense brush. It even worked indoors and acquired a 3D position which I discovered by accident! 101 out of 202 viewers found this review helpful. Was this review helpful to you? Yes No

John TX December 31, 1969	I picked this up for use with my Street Pilot 2620 in my 2001 Suburban. The cable turned out to be the perfect length, and the gain is outstanding. I compared the performance of this antenna, side-by-side with the Garmin external antenna and found the Titan III to be superior. I pulled twelve birds, with differential corrections, almost immediately, with nearly full signal on all of them (this was the first time I'd ever seen this with ANY GPS/Antenna). It has a strong magnet which holds the antenna in place very nicely. All in all, I'm really impressed with this! 110 out of 211 viewers found this review helpful. Was this review helpful to you? Yes No

TITAN III ANTENNA FAMILY TREE


GPS OUTFITTERS Titan III Antenna	GPS OUTFITTERS Mighty Mouse II Antenna	GPS OUTFITTERS Micro Mouse MCX Antenna

TITAN III ANTENNA ALTERNATIVE UNITS


HOLUX Hercules MCX Antenna Straight	GARMIN GA26C Antenna	GARMIN GA27C Antenna
