This item has been discontinued by the manufacturer.
Accessories may still
be available for this item. Click to view accessories. |
| |
|
Product Information |
| Manufacturer: |
Holux |
Category: |
Accessories |
Type: |
Antennas |
| Model: |
10003 |
SKU: |
HERCMCXANT |
UPC: |
|
| Announced: |
November 30, 1999 |
First Shipped: |
August 11, 2003 |
Weight: |
0.300 lbs. |
Holux Hercules MCX Antenna Straight Family Series |
Holux Hercules MCX Antenna Straight |
Holux Hercules MCX Antenna 90 Degree |
Garmin GA25 MCX Antenna | | | |
|
Manufacturer Description |

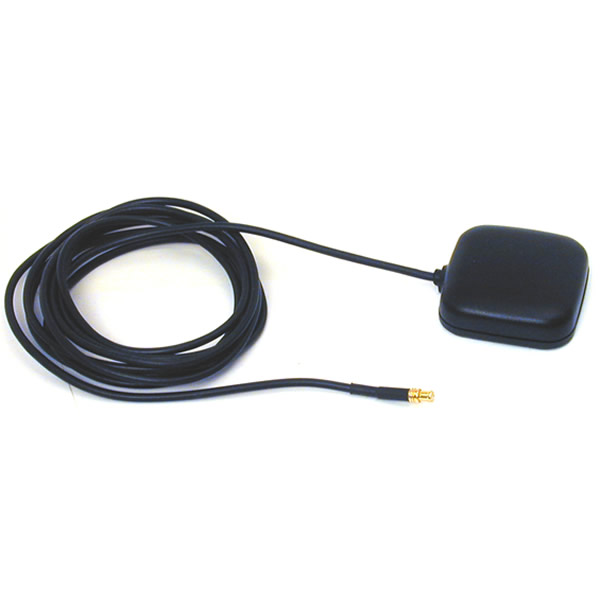

The Hercules antenna is a high gain, low battery draw antennas which provides a high performance signal lock in the toughest conditions.
The antenna has a 2m long cable with a STRAIGHT MCX END and works with any GPS units with a MCX external antenna jack.
Ideal for auto, RV, and aircraft installations, yet compact enough to use in hunting, hiking, or survey applications.
|
Features & Tips |
Here is a listing we have put together of some of the common Hercules MCX Antenna Straight features,
along with a few user tips that you may find of help for this particular item. | | Item |
Hercules |
Mighty Mouse II |
Titan III |
Micro Mouse | | Size (L x W x H) | 1.7'' x 1.7'' x 0.56'' | 2.0'' x 1.75'' x 0.56'' | 2.31'' x 1.87'' x 0.56'' | 1.31'' x 1.0'' x 0.44'' | | Weight (w/ cable) | 2.4 oz | 4.5 oz | 4.5 oz | 1.6 oz | | Mounting | Magnetic base or velcro mounting pad (not included) | | Water | 100% waterproof; 95% non-condensing | | Temperature | operating -40°C to +85°C; Storage -40°C to +95°C | | Input Voltage | 2.7 to 5.5 Vdc | 2.5 to 5.4 Vdc | 2.5 to 5.5 Vdc | 2.5 to 3.3Vdc | | Current Draw | 10mA @ 5 Vdc | 5mA @ 5 Vdc | 7mA @ 5 Vdc | 5mA @ 5 Vdc | | Gain | 28dB | 28dB | 28dB | 25dB | | Gain @ 90° | +5dB typical | | Gain @ 10° | -1dB typical | | Frequency | Center at 1575.42 MHz | | Polarization | Right Handed Circular Polarization | | Axial Ratio | 3 dB maximum | | Output VSWR | 2.0:1 maximum | 1.5:1 maximum | 1.5:1 maximum | 1.5:1 maximum | | Impedance | 50 Ohm | | LNA Noise | 1.5dB typical 2.5dB maximum | | Cable | 2 meters/6.5 feet
RG174/U | 5 meters/16 feet
RG174/U | 5 meters/16 feet
RG174/U | 3 meters/9.5 feet
RG174/U | | Connectors | MCX ONLY | BNC, MCX, SMB | BNC, MCX, SMB | BNC, MCX, SMB | | Package Includes | Antenna | Antenna
Connectors (BNC, MCX, SMB)
Flange Mount with screws | Antenna
Connectors (BNC, MCX, SMB)
Flange Mount with screws | Antenna
Connectors (BNC, MCX, SMB) | |
