This item has been discontinued by the manufacturer.
Accessories may still
be available for this item. Click to view accessories.
| GPS City Canada recommended alternative: |
 |
Vendor: GPS Outfitters
Name: Titan III Antenna
Part No: 35012
SKU: TITAN3ANT
View the GPS Outfitters Titan III Antenna.
|
|
| |
|
What's Included In The Box? |

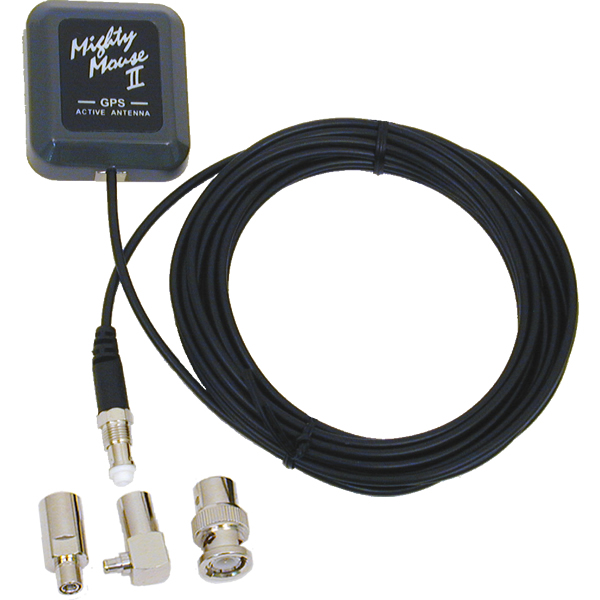

The GPS Outfitters Mighty Mouse II Antenna ships with the following items included: - MCX-Male to FME Connector (Right Angle)
- BNC-Female to FME Connector
- SMB-Female to FME Connector
|
Product Information |
| Manufacturer: |
GPS Outfitters |
Category: |
Accessories |
Type: |
Antennas |
| Model: |
35010 |
SKU: |
MIGHTYMOUSE2 |
UPC: |
|
| Announced: |
November 30, 1999 |
First Shipped: |
July 1, 2002 |
Weight: |
0.400 lbs. |
GPS Outfitters Mighty Mouse II Antenna Alternative Models |
GPS Outfitters Titan III Antenna | | | | | |
|
Manufacturer Description |
The Mighty Mouse II antenna is a high gain, low battery draw antennas which provides a high performance signal lock in the toughest conditions.
The antennas work with all GPS units with a BNC, MCX or SMB (female) external antenna jack. Just screw on the appropriate connector, attach to your GPS, and you're ready to go. Ideal for auto, RV, and aircraft installations, yet compact enough to use in hunting, hiking, or survey applications.
NOTE: This SMB antenna connection will not connect to the Magellan Roadmate Series GPS units. The SMB connection on this antenna is female, the same as the RoadMate plug.
|
Features & Tips |
Here is a listing we have put together of some of the common Mighty Mouse II Antenna features,
along with a few user tips that you may find of help for this particular item. | | Item |
Hercules |
Mighty Mouse II |
Titan III |
Micro Mouse | | Size (L x W x H) | 1.7'' x 1.7'' x 0.56'' | 2.0'' x 1.75'' x 0.56'' | 2.31'' x 1.87'' x 0.56'' | 1.31'' x 1.0'' x 0.44'' | | Weight (w/ cable) | 2.4 oz | 4.5 oz | 4.5 oz | 1.6 oz | | Mounting | Magnetic base or velcro mounting pad (not included) | | Water | 100% waterproof; 95% non-condensing | | Temperature | operating -40°C to +85°C; Storage -40°C to +95°C | | Input Voltage | 2.7 to 5.5 Vdc | 2.5 to 5.4 Vdc | 2.5 to 5.5 Vdc | 2.5 to 3.3Vdc | | Current Draw | 10mA @ 5 Vdc | 5mA @ 5 Vdc | 7mA @ 5 Vdc | 5mA @ 5 Vdc | | Gain | 28dB | 28dB | 28dB | 25dB | | Gain @ 90° | +5dB typical | | Gain @ 10° | -1dB typical | | Frequency | Center at 1575.42 MHz | | Polarization | Right Handed Circular Polarization | | Axial Ratio | 3 dB maximum | | Output VSWR | 2.0:1 maximum | 1.5:1 maximum | 1.5:1 maximum | 1.5:1 maximum | | Impedance | 50 Ohm | | LNA Noise | 1.5dB typical 2.5dB maximum | | Cable | 2 meters/6.5 feet
RG174/U | 5 meters/16 feet
RG174/U | 5 meters/16 feet
RG174/U | 3 meters/9.5 feet
RG174/U | | Connectors | MCX ONLY | BNC, MCX, SMB | BNC, MCX, SMB | BNC, MCX, SMB | | Package Includes | • Antenna | • Antenna
• Connectors (BNC, MCX, SMB)
• Flange Mount with screws | • Antenna
• Connectors (BNC, MCX, SMB)
• Flange Mount with screws | • Antenna
• Connectors (BNC, MCX, SMB) | |
