This item has been discontinued by the manufacturer.
Accessories may still
be available for this item. Click to view accessories. |
| |
|
| Product Information |
| Manufacturer: |
Garmin |
Category: |
GPS Units |
Type: |
OEM GPS |
| Model: |
010-00153-00 |
SKU: |
OEM35LVC |
UPC: |
|
| Announced: |
November 30, 1999 |
First Shipped: |
August 17, 2001 |
Weight: |
0.800 lbs. |
| Family Series For This Item |
Garmin OEM 35 LVC |
Garmin OEM 35 LVS |
Garmin OEM 35 HVS |
Garmin OEM 35 PC |
Garmin OEM 35 USB |
Garmin OEM 36 |
|
| Alternative Models For This Item |
Garmin OEM 16 LVS |
Garmin OEM 16 HVS |
Garmin OEM 17HVS | | | |
|
| Garmin OEM 35 LVC Description |
The GARMIN GPS 35 TracPak is a complete GPS receiver and embedded antenna designed for a broad spectrum of OEM (Original Equipment Manufacturers) system applications. Based on the proven technology found in other GARMIN 12-channel GPS receivers, the GPS 35 will track up to twelve satellites at a time while providing one-second navigation updates and low power consumption. Its far-reaching capability meets the sensitivity requirements of land navigation as well as the dynamics requirements of high-performance aircraft.
The GPS 35 TracPak design utilizes the latest technology and high-level circuit integration to achieve superior performance while minimizing space and power requirements. Utilizing GARMIN's own proprietary chipset, all critical components of the system including the RF/IF receiver hardware and the digital baseband are designed and manufactured by GARMIN to ensure outstanding quality and capability.
The GPS 35 TracPak is housed in a black, water-resistant case and designed to withstand rugged operating conditions. While the GPS 35 TracPak is designed as a ''plug 'n play'' GPS solution, the minimum system must provide a source of power and a clear view of the GPS satellites. The system may communicate with the GPS 35 via two RS-232 compatible bi-directional communication channels. Internal memory backup allows the GPS 35 to retain critical data such as satellite orbital parameters, last position, date, and time.
OEM35 models and Specs:

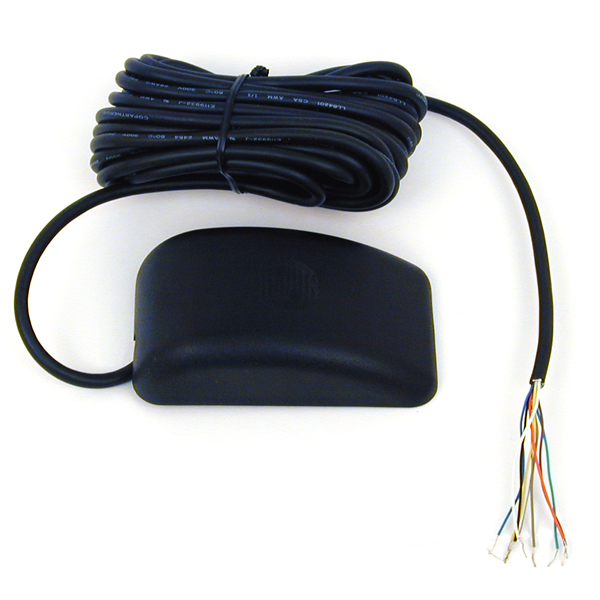

GPS35-LVC: Attached 10 foot power/data cable with bare wire ends. Accepts power from unregulated low voltage power supplies between 3.6 and 6 VDC. Asynchronous serial data interfaces via 2 serial ports with CMOS voltage level outputs, RS-232 polarity.¹ Click here for more.
GPS35-LVS: Attached 10 foot power/data cable with bare wire ends. Accepts power from unregulated low voltage power supplies between 3.6 and 6 VDC. Asynchronous serial data interfaces via 2 serial ports with true RS-232 voltage level outputs.¹. Click here for more.
GPS35-HVS: Attached 10 foot power/data cable with bare wire ends. Accepts power from unregulated high voltage power supplies between 6 and 40 VDC. Asynchronous serial data interfaces via 2 serial ports with true RS-232 voltage level outputs.¹ Click here for more.
GPS35PC: Attached 10 foot power/data cable with female DB-9 serial connection, ready to attach to your PC. Additional 8 foot power cable extension from the DB-9 connector terminates in a cigarette lighter plug for easy application of power supply voltage between 6 and 40 VDC (same as GPS 35HVS). Asynchronous serial data interface via a single serial port with true RS-232 voltage level output.¹ ². Click here for more.
GPS35-USB: With USB Connection. Attached 12 foot power/data cable with USB Converter Connection, ready to attach to your PC. The USB port supplies both power and data to the GPS 35. A CD-ROM is included with USB Device Drivers for Windows 98/ME and 2000 NOT Windows 95, Windows NT or MAC.² ³. Click here for more.
¹ All serial inputs on all versions are compatible with either true RS-232 or TTL/CMOS voltage levels. Port 1 uses NMEA 0183 data format. Port 2 transmits binary position and raw measurement data and receives RTCM SC-104 differential corrections data, message types 1, 2, 3, and 9.
² GPS35PC does not implement Port 2.
³ Minimum System Requirements. IBM-Compatible PC with Pentium-class processor, CD-ROM drive, Mouse or other pointing device, Windows 98/ME or Window 2000 operating System, Available Universal Serial Bus port (USB), Type A (downstream).
|
| Garmin OEM 35 LVC Features & Tips |
Here is a listing we have put together of some of the common OEM 35 LVC features,
along with a few user tips that you may find of help for this particular item. | • 12 parallel channels, differential ready -- accepts RTCM SC-104 inputs
• Built-in non-volatile memory for sensor configuration parameters
• Internal rechargeable lithium battery for RAM backup of almanac and ephemeris data
• Low power consumption
• Industry standard NMEA 0183 data available at user selectable baud rates for position, velocity, time, receiver status, satellite geometry, signal strength and error estimates.
• Raw phase and pseudorange measurement data available for use in survey quality instrumentation.
• 1 microsecond accuracy timing pulse |
Mapping Software:
The OEM 35 Series does not work with GARMIN's MapSource CD-ROMS. It will work with the Delorme Software and other third party mapping software.
|
