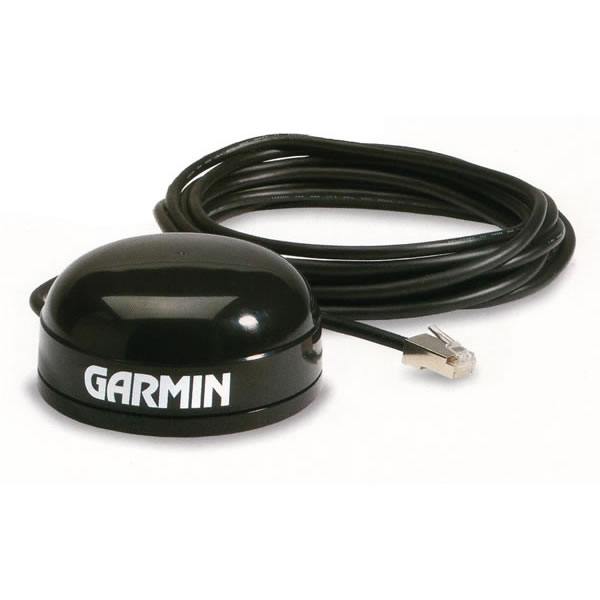

Garmin OEM GPS 16x High-Sensitivity HVS Sensor


Garmin OEM 16 HVS High-Sensitivity
Customer Images
Share your images and get a
free gpscity.ca t-shirt!
Customer Rating: (based on 5 reviews).    Email:  Email the Garmin OEM 16 HVS High-Sensitivity page     Print:  Print the Garmin OEM 16 HVS High-Sensitivity page
100% of our reviewers recommend this item. See more Garmin items.

List Price: $129.79CDN
Our Price: $94.95CDN (and this item ships for $4.99. Learn more.)
You Save: $34.84CDN (27%)

Availability:

In Stock.
Ships from Calgary tomorrow, February 7.

Additional
Protection:
Learn more.
Protection after the manufacturer's warranty expires.
1 year additional protection for only $9.50.
2 years additional protection for only $14.24.


Qty:

Q&A: 3 Questions + 8 Answers
Model: Garmin OEM 16 HVS High-Sensitivity
Part No: 010-00258-63
Condition: Brand New, Full Manufacturer Warranty
Price Match: Get an Instant Price Match in about 5 minutes (during business hours).

Product Information
Manufacturer: Garmin Category: GPS Units Type: OEM GPS
Model: 010-00258-63 SKU: OEM16XHVS UPC: 753759077808
Announced: March 26, 2008 First Shipped: November 6, 2001 Weight: 0.706 lbs.

Family Series For This Item
Garmin OEM 16 LVS
Garmin OEM 16 LVS
Garmin OEM 16 HVS
Garmin OEM 16 HVS
Garmin OEM 17N
Garmin OEM 17N


Alternative Models For This Item
Garmin OEM 35 LVC
Garmin OEM 35 LVC
Garmin OEM 35 LVS
Garmin OEM 35 LVS
Garmin OEM 35 HVS
Garmin OEM 35 HVS
Garmin OEM 35 PC
Garmin OEM 35 PC
Garmin OEM 35 USB
Garmin OEM 35 USB
Garmin OEM 36
Garmin OEM 36

Garmin OEM 16 HVS High-Sensitivity Description
The GARMIN GPS 16x delivers exceptional accuracy while standing up to the harshest environment. This surface mounted GPS sensor has an integrated antenna housed in a rugged, waterproof design. The high-sensitivity receiver allows for continuous tracking of all visible satellites.

It's WAAS capable, which means it can provide position accuracy of less than 3 meters on average. This incredible accuracy is possible without the use of an external DGPS beacon receiver. The GPS 16 also offers excellent EMI/RFI performance for easy integration into systems that will be operated near mobile computing devices and wireless communications equipment.

The cable on the GPS16-HVS uses a flexible black PVC jacketing material. The cable is 5 meters in length and contains 8 color-coded 28 awg wires that are terminated in an RJ-45 plug.

OEM16 MODELS AND SPECS:
GPS16-LVS: Attached 16 foot power/data cable with a RJ-45 end connector. Accepts power from low voltage power supplies between 3.3 and 6 VDC regulated to less than 100mV ripple. Asynchronous serial data interfaces via 2 serial ports with true RS-232 voltage level outputs.*. Click here for more.

GPS16-HVS: Attached 16 foot power/data cable with a RJ-45 end connector. Accepts power from unregulated high voltage power supplies between 6 and 40 VDC. Asynchronous serial data interfaces via 2 serial ports with true RS-232 voltage level outputs.*

* SERIAL INTERFACE/FORMAT:
PORT 1: True RS-232 output, asynchronous serial input with RS-232 or TTL voltage levels, RS-232 polarity. /
Selectable between NMEA 0183 v2.00, NMEA 0183 v3.00 and Garmin binary formats: NMEA v2.0 (ASCII); Approved output sentences: GPALM, GPGGA, GPGLL, GPGSA, GPGSV, GPRMC, GPVTG; Proprietary sentences: PGRMB, PGRME, PGRMF, PGRMM, PGRMT, PGRMV.
PORT 2: Asynchronous serial input only, compatible with RS-232 or TTL voltage levels, RS-232 polarity. /
RTCM input only; RTCM SC-104 differential input message types 1, 2, 3, 7 and 9.

Garmin Configuration Utility:


Download and run this program to evaluate and configure you OEM GPS unit when connected to your PC*. Review the updates and downloads for the OEM 16x HVS.
* the cable at the end of this unit will need to be joined to the PC, generally using a RS232 port end.


Garmin OEM 16 HVS High-Sensitivity Features & Tips
Here is a listing we have put together of some of the common

OEM 16 HVS High-Sensitivity features

, along with a few user tips that you may find of help for this particular item.
• WAAS enabled
• high-sensitivity GPS receiver
• Differential-ready with RTCM-104
• Accuracy better than 3 meters with WAAS
• On-board real time clock, adj. width 1Hz pulse signal
• 1uSec accuracy pulse per second output
• Water resistant to IPX7 specifications
• One RS 232 serial output
• Two RS 232 serial inputs
• User - selectable baud rates
• High voltage supply 6.0 to 40.0v DC

PHYSICAL CHARACTERISTICS
3.15'' (86mm) diameter and 1.65'' (42mm) high.
GPS 16 LVS: 6.4oz. (181g) without cable
GPS 16 HVS: 11.7 oz. (332g) with 5 meter cable.
