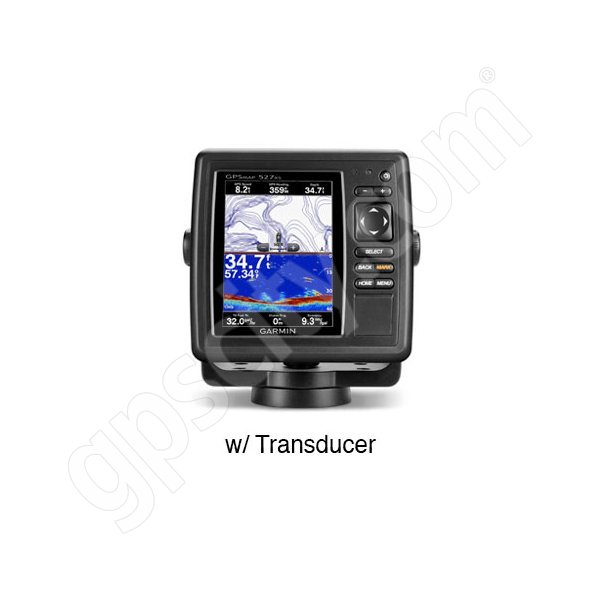

Garmin GPSMAP 527xs with Dual Frequency Transducer

Tutorial Videos

Questions and Answers (Q&As)

Popular Accessories

What's Included In The Box?

• GPSMAP 527xs
• Dual Frequency Transducer
• Power/data cable
• Tilt/swivel mount
• Flush mount kit
• Protective cover
• Documentation

Product Information

Gallery of Customer Images

Customer Reviews

Family Series

Manufacturer Description

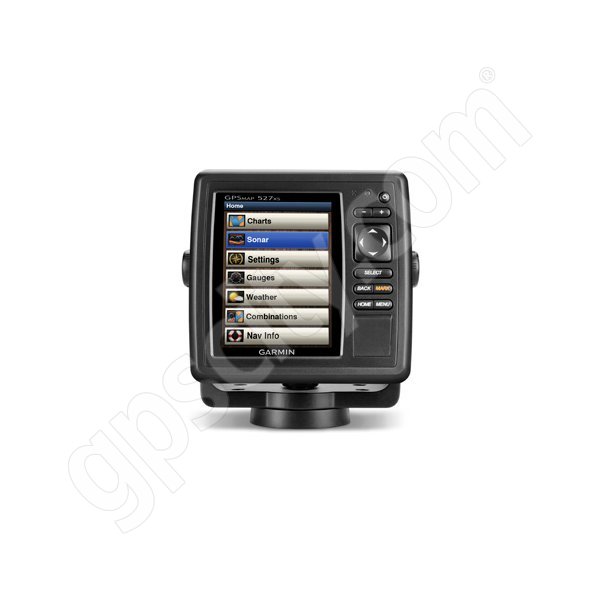

The premier Garmin GPSMAP 527xs combination chartplotter/sounder has 60 percent more processing power than its previous generation for faster zooming and panning. Includes a 5” VGA display and HD-ID sonar with transducer and CHIRP capability (transducer sold separately). Built-in high-sensitivity 10 Hz Garmin GPS/GLONASS receiver updates position and heading 10 times per second to display fluid vessel movement and dramatically improves your ability to mark and navigate to 5,000 waypoints. Sonar recording coordinates the timing of the sonar return with your boat's position and saves digital information on the map. Also includes full wireless connectivity for exciting applications and comes preloaded with worldwide basemap.

Superfast 10 Hz Garmin GPS (GPS/GLONASS)

This new combo features 10 Hz Garmin GPS. And that’s important when you are trying to navigate your way back to a hot fishing spot you have given a waypoint. This powerful GPS updates your position and heading 10 times per second…10 times more often than the more common 1 Hz GPS. This means you see more fluid vessel movement on you plotter screen. At low speeds, it gives you a huge advantage.

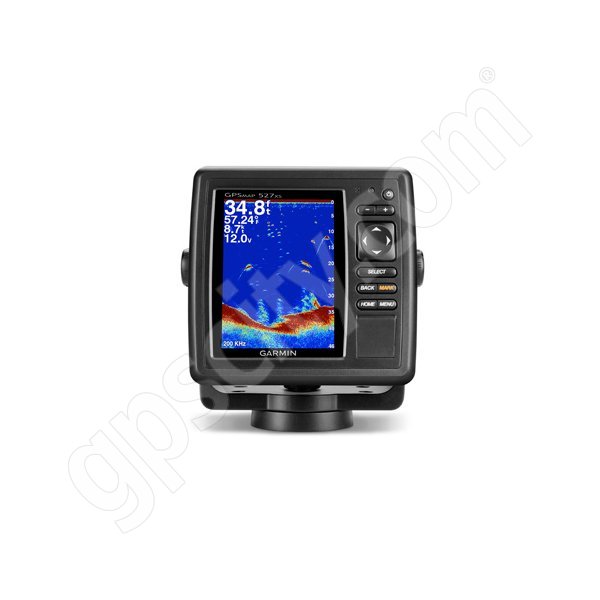

See What's Below With HD-ID Sonar

Exclusive Garmin HD-ID target tracking technology gives you better separation and definition of images for the clearest possible picture of what lies below. You see fish. You catch fish. Easy.

Experience the Advantage of CHIRP

The sonar technology that you’ve been waiting for is now built-in to this combo. CHIRP technology sweep multiple frequencies to better focus on certain fish at certain depths (CHIRP transducer sold separately).

Capture Sonar Recording

Sonar recording coordinates the timing of the sonar return with your boat's position and saves digital information on the map.

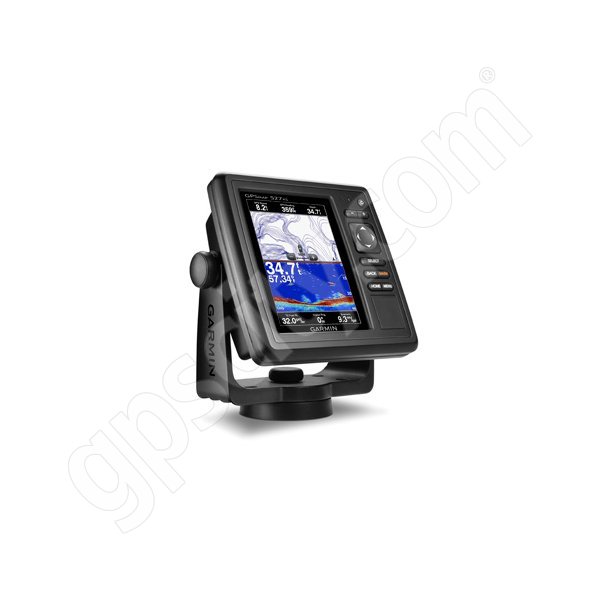

Three Mounting Options

You have your choice of 3 ways to mount this combo: Bail mount, flush mount and flat mount.

Features and Tips

GPSMAP 527xs with Dual Frequency Transducer features

Physical & Performance:

• Unit dimensions, WxHxD: 5.9"" x 6.1"" x 2.4"" (15.0 x 15.5 x 6.1 cm)
• Display size, WxH: 3.0"" x 4.0"", 5.0"" diagonal (7.6 x 10.2 cm, 12.7 cm diagonal)
• Display resolution, WxH: 480 x 640 pixels
• Display type: VGA display
• Weight: 1.7 lb (0.8 kg)
• Battery: none
• Battery life: none
• Waterproof: yes (IPX7)
• High-sensitivity receiver: yes
• Antenna: internal
• NMEA input/output: NMEA 0183 compatible and NMEA 2000 certified
• Power consumption: 0.6A at 12V; 0.3A at 24V
• 0.7A at 12V; 0.4A at 24V (with sonar)

• Basemap: yes
• Preloaded maps: no
• Ability to add maps: yes
• Built-in memory: none (cannot load maps to internal memory)
• Accepts data cards: dual microSD™ card slots
• Waypoints/favorites/locations: 5,000
• Routes: 100
• Track log: 50,000 points; 50 saved tracks

• CANet® compatible: no
• Supports AIS (tracks target ships' position): yes
• Supports DSC (displays position data from DSC capable VHF radio): yes
• Audible alarms: yes
• Tide tables: yes
• Sun and moon information: yes
• 3-D map view: yes (with optional BlueChart g2 Vision card)
• Dual-frequency sonar capable: yes
• Dual-beam sonar capable : yes
• Split-screen zoom: yes
• Split-screen sonar/gps: yes
• Ultrascroll® (displays fish targets at higher boat speeds): yes
• See-thru® technology (exposes fish hidden in cover): yes
• Fish Symbol ID (helps identify fish targets): yes
• AutoGain Technology (minimizes clutter, maximizes targets): yes
• Whiteline (indicates hard or soft bottom): yes
• Adjustable depth line (measures depth of underwater objects): yes
• A-scope (real time display of fish passing through transducer beam): yes
• Bottom lock (shows return from the bottom up): yes
• Water temperature log and graph: yes
• Water temperature sensor included: yes

• Frequency: 25-210 kHz (dependent on transducer)
• Transmit power: 1kW (RMS) / 8,000W (peak to peak)
• Voltage range: 10V-32V input
• Maximum depth: 2,000 ft salt water (depth capacity is dependent on water bottom type and other water conditions)
• Additional:
• Wi-Fi connectivity: yes
• HD-ID tracking technology: yes
• Built-in video port: yes
• Connects to a compatible Fusion media system: yes

Specifications
