Product Information |
| Manufacturer: |
Garmin |
Category: |
GPS Units |
Type: |
Marine GPS |
| Model: |
010-00516-31 |
SKU: |
430SXDUAL |
UPC: |
753759065829 |
| Announced: |
January 5, 2007 |
First Shipped: |
February 1, 2007 |
Weight: |
6.000 lbs. |
Garmin GPSMAP 430sx Sounder with Dual Beam Transducer and GXM 31 Alternative Models |
Garmin GPSMAP 430 |
Garmin GPSMAP 430x with GXM 31 Antenna |
Garmin GPSMAP 430s Sounder with Dual Beam Transducer |
Garmin GPSMAP 430sx Sounder with Dual Beam Transducer and GXM 31 | | |
|
Manufacturer Description |

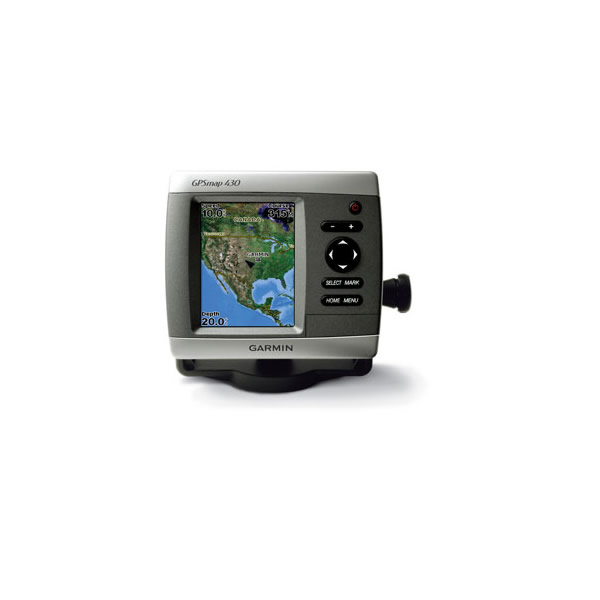

This sleek, space-saving chartplotter is your companion for freshwater fishing and boating. The GPSMAP 430 Series features preloaded detailed maps for U.S. inland lakes as well as an ultra-bright 4 inch QVGA display; built-in, satellite-enhanced worldwide basemap and simplified user operation.
Navigate Any Lake
The 430 comes preloaded with detailed maps for U.S. inland lakes, including 5300 lakes with shoreline, depth contours, navaids and more. Over 300 of these lakes are enhanced with extra Inland Lakes Vision features. For areas outside the U.S., the 430 has a worldwide basemap with satellite images in place of more traditional maps, and its SD card slot makes it easy to add additional maps without connecting to a computer. With fewer keys and a simple, intuitive interface, the 430 makes navigating your way through the water easy.
The 430 boasts advanced Inland Lakes Vision features for 300 of the most popular lakes.
- 3D mariner's eye view or fish eye view provides you with a 3-dimensional perspective of map information, both above the waterline and below it.
- Higher-resolution satellite images help you orient yourself in unfamiliar areas.
- Auto guidance technology searches through map data to suggest the best passage.
Add Sonar and Weather
The sounder version, GPSMAP 430s, comes with a dual beam transducer that clearly paints depth contours, fish targets and structure. It is also CANet compatible, so you can share sounder data with another chartplotter on your boat. The weather-enabled versions, GPSMAP 430x and 430sx, display XM satellite weather data, including NEXRAD radar, with the GXM 31 antenna.
Add Extras with BlueChart g2 Vision
With the optional BlueChart g2 Vision SD card, you can add a whole new dimension of exceptional features to your chartplotter for offshore use, including advanced 3D perspective, Auto guidance, high-resolution satellite images, detailed fishing charts and more.
|
Features & Tips |
Here is a listing we have put together of some of the common GPSMAP 430sx Sounder with Dual Beam Transducer and GXM 31 features,
along with a few user tips that you may find of help for this particular item. | - Built-in analog Sounder: YES
- Transducer Included: YES (010-10272-00)
- XM Antenna Included: YES
- Garmin radar compatible: no
- Garmin sonar compatible: yes
- CANet™ compatible: yes
- Garmin Marine Network™ compatible: no
- Supports AIS (tracks target ships' position): yes
- Supports DSC (displays position data from DSC capable VHF radio): yes
- Audible alarms: yes
- Tide tables: yes
- Hunt/fish calendar: no
- Sun and moon information: yes
- 3D map view: yes (with optional BlueChart g2 Vision card)
- Auto Guidance: yes (with optional BlueChart g2 Vision card)
- Automatic routing (turn by turn routing on roads): no
- XM WX Weather & Radio for U.S. compatible: yes
- Voice prompts: no
- Remote control: no
- Headphone jack/audio line-out: no
- Audio/video input/output: no
- Portable: no
- Automotive/motorcycle-friendly: no
Physical & Performance:
Unit dimensions, WxHxD: 5.7" x 5.0" x 2.7" (14.5 x 12.7 x 6.9 cm)
Display size, WxH: 2.4" x 3.2", 4.0" diagonal (6.1 x 8.1 cm, 10.2 cm diagonal)
Display resolution, WxH: 240 x 320 pixels
Display type: QVGA display
Weight: 1.3 lb (590 g)
Battery: none
Battery life: none
Waterproof: yes (IPX7)
Antenna: internal
NMEA output: NMEA 0183
RoHS version available: no
Maps & Memory:
Basemap: yes
Preloaded maps: yes
Ability to add maps: yes
Built-in memory: none (cannot load maps to internal memory)
Accepts data cards: SD card slot
Waypoints: 1,500
Routes: 20
Track log: 10,000 points; 20 saved tracks |
