Additional Images


Customer Images
Share your images and get a
free gpscity.ca t-shirt!
|
Not yet rated. Email:
 Print:
See more Garmin items. |
| |
This item is not available for purchase.
Accessories may still
be available for this item. Click to view accessories. |
| |
|
Most Popular Astro 320 and DC 40 Bundle Accessories
» View the complete accessory list for the Garmin Astro 320 and DC 40 Bundle. |
Garmin DC 40 Transmitter Collar
$229.95
|
DaneElec 4GB microSD Data Card with SD Adapter
$8.95
|
Garmin Topographic 100K USA DVD with BaseCamp
$79.95
|
Garmin Colorado and Oregon Vehicle Power Cable
$19.95
|
Garmin Magnetic Mount Antenna
$36.95
|
Garmin Astro Long Range Antenna
$55.95
|
What's Included In The Box? |
The Garmin Astro 320 and DC 40 Bundle ships with the following items included: |
Product Information |
| Manufacturer: |
Garmin |
Category: |
GPS Units |
Type: |
Outdoor GPS |
| Model: |
010-00976-00 |
SKU: |
ASTRO320DC40 |
UPC: |
753759975937 |
| Announced: |
June 2, 2011 |
First Shipped: |
August 26, 2011 |
Weight: |
8.000 lbs. |
Garmin Astro 320 and DC 40 Bundle Family Series |
Garmin Astro 320 Hunting and Dog Tracking GPS |
Garmin Astro 320 and DC 40 Bundle | | | | |
|
Garmin Astro 320 and DC 40 Bundle Alternative Models |
Garmin Astro 220 GPS Dog Tracker |
Garmin Astro 220 Hunting and Dog Tracking GPS |
Garmin DC 20 Dog Tracker | | | |
|
Manufacturer Description |
Astro is the premier high-sensitivity GPS-enabled tracking system for sporting dogs. This unique system pinpoints your dog’s position and shows you exactly where he is, even when you can’t see or hear him. The new Astro 320 handheld GPS device has features that hunters have been asking for – like increased range, a simplified user interface and must-have mapping capability.
See Your Dogs' Every Move

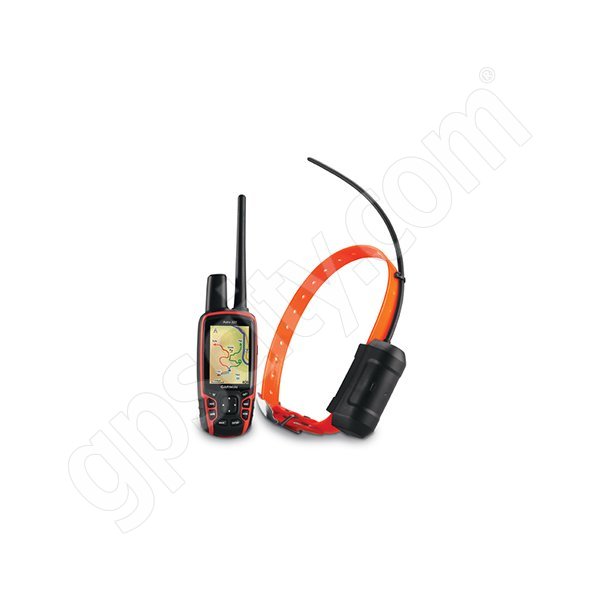

The Astro system includes the redesigned Astro 320 and the rugged, orange polyurethane DC™ 40 transmitter collar. The collar accommodates most e-collar receivers, eliminating the need to put two separate collars on a dog. Plus, Collar Lock creates a 4-digit PIN number that helps prevent others from seeing your dog’s whereabouts — a useful feature in field trials to ensure that an Astro is used only as a recovery tool when a dog in competition becomes lost.
To get started, just take Astro outdoors and turn on the handheld and transmitter to acquire GPS satellite signals. Then attach the DC 40 to your dog. Now you’re ready to turn him loose — no other setup required.
Experience the Improved Astro 320
More intuitive and easier to use, the new Astro 320 takes dog tracking to an entirely new level. Compatible with any Garmin DC series transmitter, Astro 320 debuts innovative features like enhanced map drawing capabilities, BirdsEye™ Satellite Imagery compatibility (subscription required), vibration-based alerts and a 3-axis tilt-compensated compass.
Thanks to the redesigned antenna, the maximum range between the Astro 320 and a Garmin tracking collar has been increased by nearly 30 percent – up to 9 mi in flat, unobstructed terrain.
Both durable and waterproof, Astro 320 is built to withstand the elements. It features the legendary toughness that’s built to withstand the elements – be it dust, dirt, humidity or water, none of which are a match for this essential hunting companion.
Upgrade with Ease
Getting what you need for the hunt is now a little easier. Hunters have the option of purchasing the entire Astro bundle, a stand-alone Astro 320 or as many DC 40 collars as necessary. And if you do get the 320, remember it’s compatible with every DC series dog collar.
Get Additional Mapping
With its microSD™ card slot, Astro 320 lets you purchase and load TOPO US 24K maps for land elevation contours or City Navigator NT® map data for turn-by-turn routing on roads (see maps tab for compatible maps). Astro 320 also supports BirdsEye™ Satellite Imagery (subscription required), that lets you download satellite images to your device and integrate them with your maps. Mapping depicts important nearby geographical features – and lets hunters know, for example, if their dog has crossed a creek or is nearing a dangerous road.
In addition, Astro 320 is compatible with Garmin Custom Maps, free software that transforms paper and electronic maps into downloadable maps for your device.
Track Dogs in Dense Cover

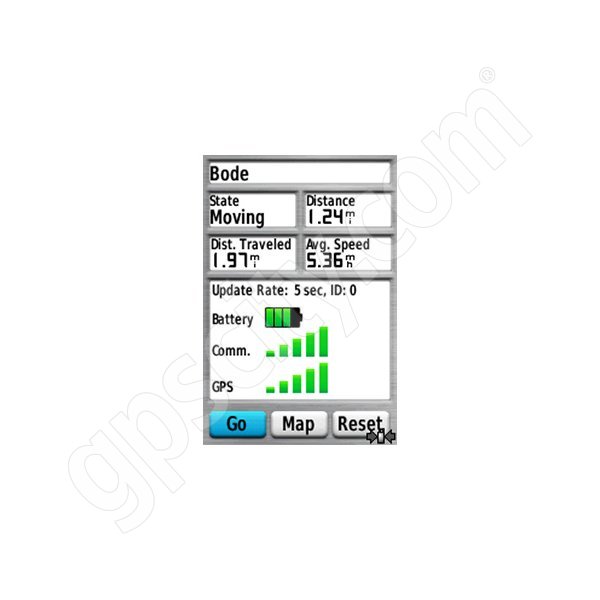

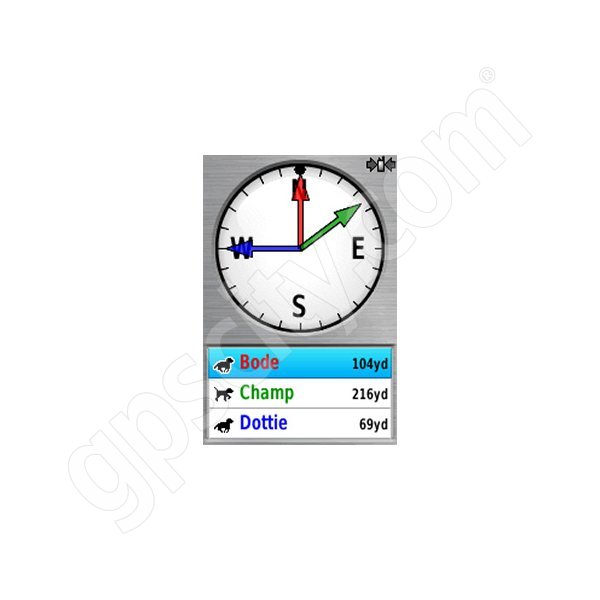

As often as every 5 seconds, your dog’s DC™ 40 transmits his position to your handheld, and you can see his current location and a trail of where he’s been on the map page of your handheld. Switch over to the Dog Tracker page to view a compass pointing to your dog’s location as well as his current status: whether he’s running, sitting, on point or treeing quarry. Astro also can sound an alarm to let you know instantly when your dog goes on point.
Each dog’s precise distance also can be presented on the map page, and users can choose an option that auto zooms the map so all dogs can be seen on the display at any time. Alternately, dogs that are too far away to fit on the map’s current zoom scale can be notated on the display’s margin in the direction of the dog’s location. The user also can choose the duration that each dog’s tracklog is viewed on the display – or toggle it off completely for a cleaner display.
Astro boasts a high-sensitivity GPS receiver that can track your dog’s position even in the densest cover. You can track up to 10 dogs at one time with Astro, at a distance of up to 9 mi away (depending on terrain). The system transmits information by line-of-sight, so it reaches farthest in flat, open territory.
Count Your Coveys
After you’ve captured your quarry, mark the exact spot with Astro’s Covey Counter™, a special waypoint that tells you the exact location, time of day and elevation where you found your prey, as well as the number of birds you flushed and took from that location. Astro lets you save other special waypoints, such as "Truck" and "Lodge" so you can save the location of these places quickly and easily for each hunt. Astro also offers special waypoint icons to represent food plots, tree stands and other hunting-related points.
|
Features & Tips |
Here is a listing we have put together of some of the common Astro 320 and DC 40 Bundle features,
along with a few user tips that you may find of help for this particular item. |
- Automatic routing (turn by turn routing on roads):
yes (with optional mapping for detailed roads)
- Electronic compass:
yes (tilt-compensated, 3-axis)
- Touchscreen: no
- Barometric altimeter:
yes
- Camera:
no
- Geocaching-friendly:
yes (paperless)
- Custom maps compatible:
yes
- Photo navigation (navigate to geotagged photos): yes
- Outdoor GPS games:
no
- Hunt/fish calendar:
yes
- Sun and moon information:
yes
- Tide tables:
yes
- Area calculation: yes
- Custom POIs (ability to add additional points of interest):
yes
- Unit-to-unit transfer (shares data wirelessly with similar units):
yes
- Picture viewer:
no
- Garmin Connect™ compatible (online community where you analyze, categorize and share data):
yes
- Additional:
Range: DC-40: 9 miles (line of sight);
Frequency band: MURS
Vibration mode: yes;
Tracks up to 10 dogs simultaneously
Physical & Performance
- Unit dimensions, WxHxD:
2.4" x 6.3" x 1.4" (6.1 x 16.0 x 3.6 cm)
- Display size, WxH:
1.6" x 2.2" (4.1 x 5.6 cm); 2.6" diag (6.6 cm)
- Display resolution, WxH:
160 x 240 pixels
- Display type:
transflective, 65-K color TFT
Weight:
9.2 oz (260.1 g) with batteries
- Battery:
2 AA batteries (not included); NiMH or Lithium recommended
- Battery life:
up to 20 hours
- Waterproof:
yes (IPX7)
- Floats:
no
- High-sensitivity receiver:
yes
- Interface:
high-speed USB and NMEA 0183 compatible
Maps & Memory:
- Basemap:
yes
- Ability to add maps:
yes
- Built-in memory:
1.7 GB
- Accepts data cards:
microSD™ card (not included)
- Waypoints/favorites/locations:
2000
- Routes:
200
- Track log:
10,000 points, 200 saved tracks
|
